HEADLAMP

DR-Z250 2006 (K6) USA (E03) DRZ250 DR Z250

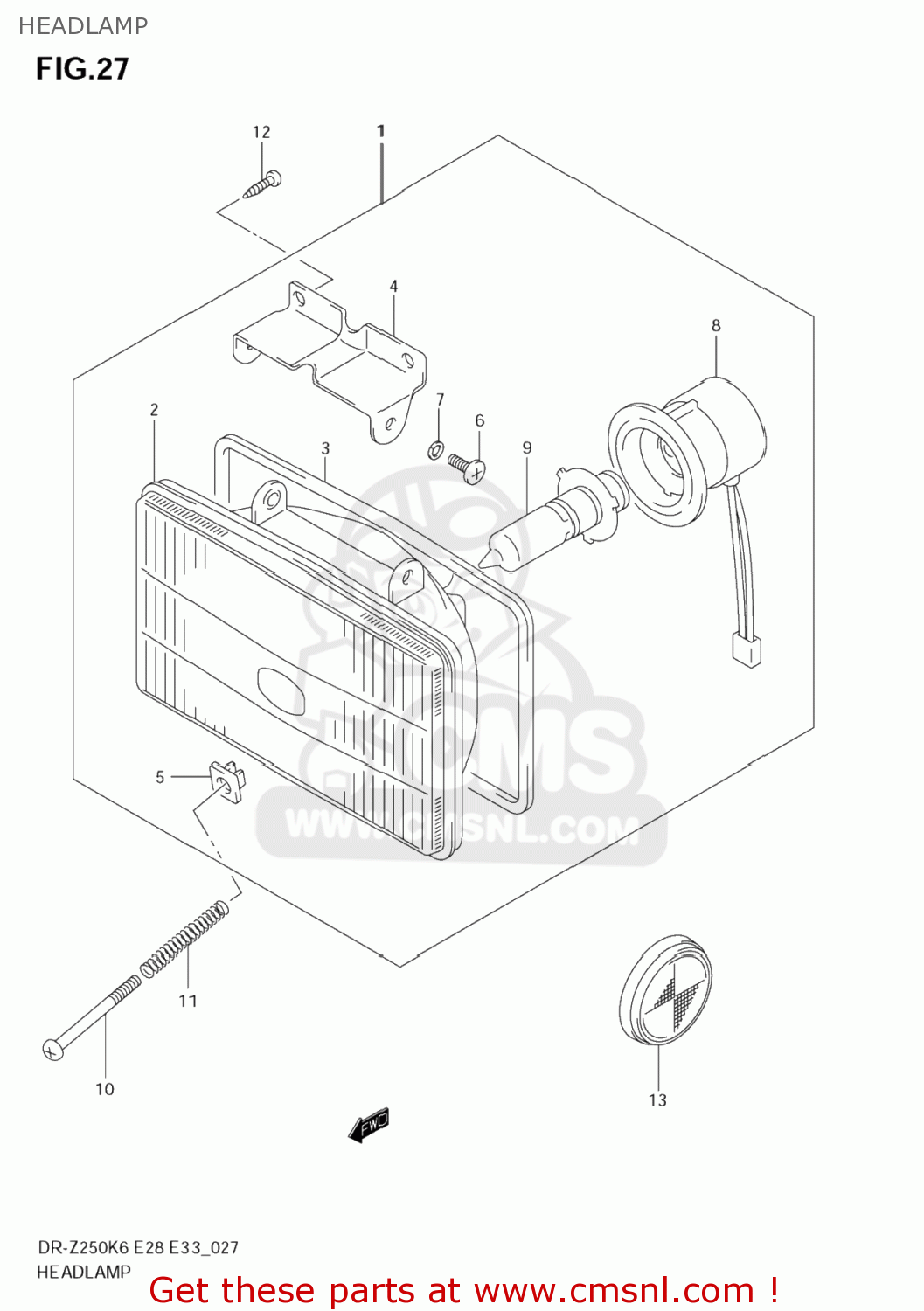

Headlamp diagram DR-Z250 2006 (K6) USA (E03) DRZ250 DR Z250

prices are in EUR

ref

part #

description

quantity

3510003D03
ref: 1
35100-03D04

HEADLAMP ASSY

€ 160.50

3512103D02
ref: 2

UNIT,LAMP

€ 43.00

3512503D00
ref: 3

GASKET,HEADLAMP (NAS)

€ 7.50

3523005D00
ref: 4

BRACKET,LAMP

€ 9.00

3513512E20
ref: 5

NUT,ADJUSTING

€ 2.50

3513616700
ref: 6

SCREW

€ 3.00

0832101057
ref: 7
08321-0105A

WASHER,LOCK

€ 2.00

3517103D03
ref: 8
35171-03D10

SOCKET

€ 33.00

0947112105
ref: 9

BULB(12V35/36.5W)

€ 75.50

0912504034
ref: 10

SCREW(4X75)

€ 4.00

0944007041
ref: 11

SPRING

€ 2.50

0351104103
ref: 12
03511-0410A

SCREW

€ 1.50

3595014A00
ref: 13

REFLECTOR,REFLEX FR

€ 15.00
