FRONT FENDER

DR-Z250 2006 (K6) USA (E03) DRZ250 DR Z250

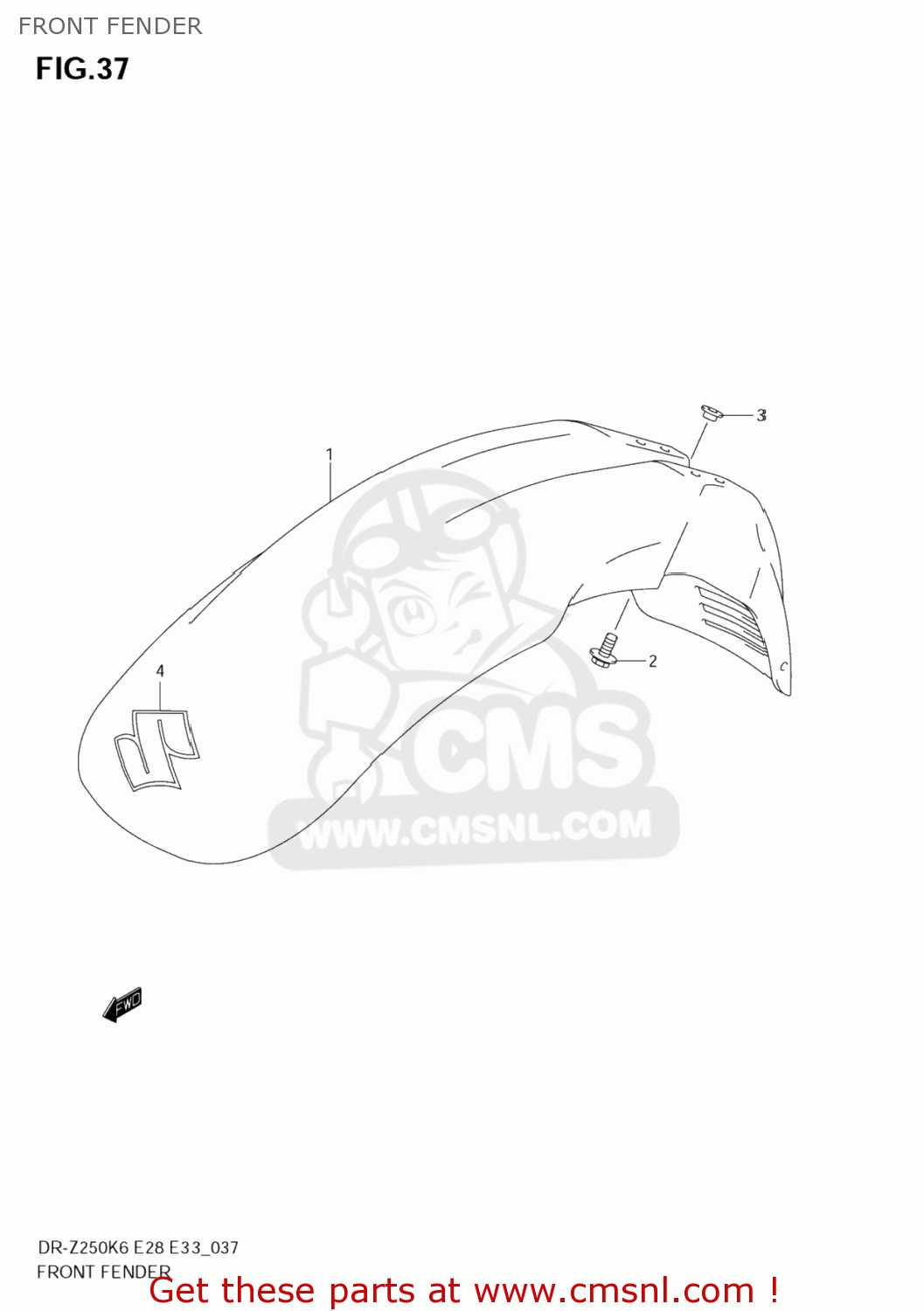

Front fender diagram DR-Z250 2006 (K6) USA (E03) DRZ250 DR Z250

FRONT FENDER DR-Z250 2006 (K6) USA (E03) DRZ250 DR Z250

FRONT FENDER DR-Z250 2006 (K6) USA (E03) DRZ250 DR Z250

prices are in EUR

ref

part #

description

quantity

1

5311113E00YU1
ref: 1

FENDER,FR

€ 82.00

2

0911606170
ref: 2

BOLT(6X16)

€ 3.00

3

0916906073
ref: 3

WASHER

€ 4.00

4

6815107G10YCF
ref: 4

EMBLEM,S

€ 10.50
