CARBURETOR (MODEL K4 FOR E33)

DR-Z400E 2003 (K3) USA (E03) DRZ400E DR Z400E

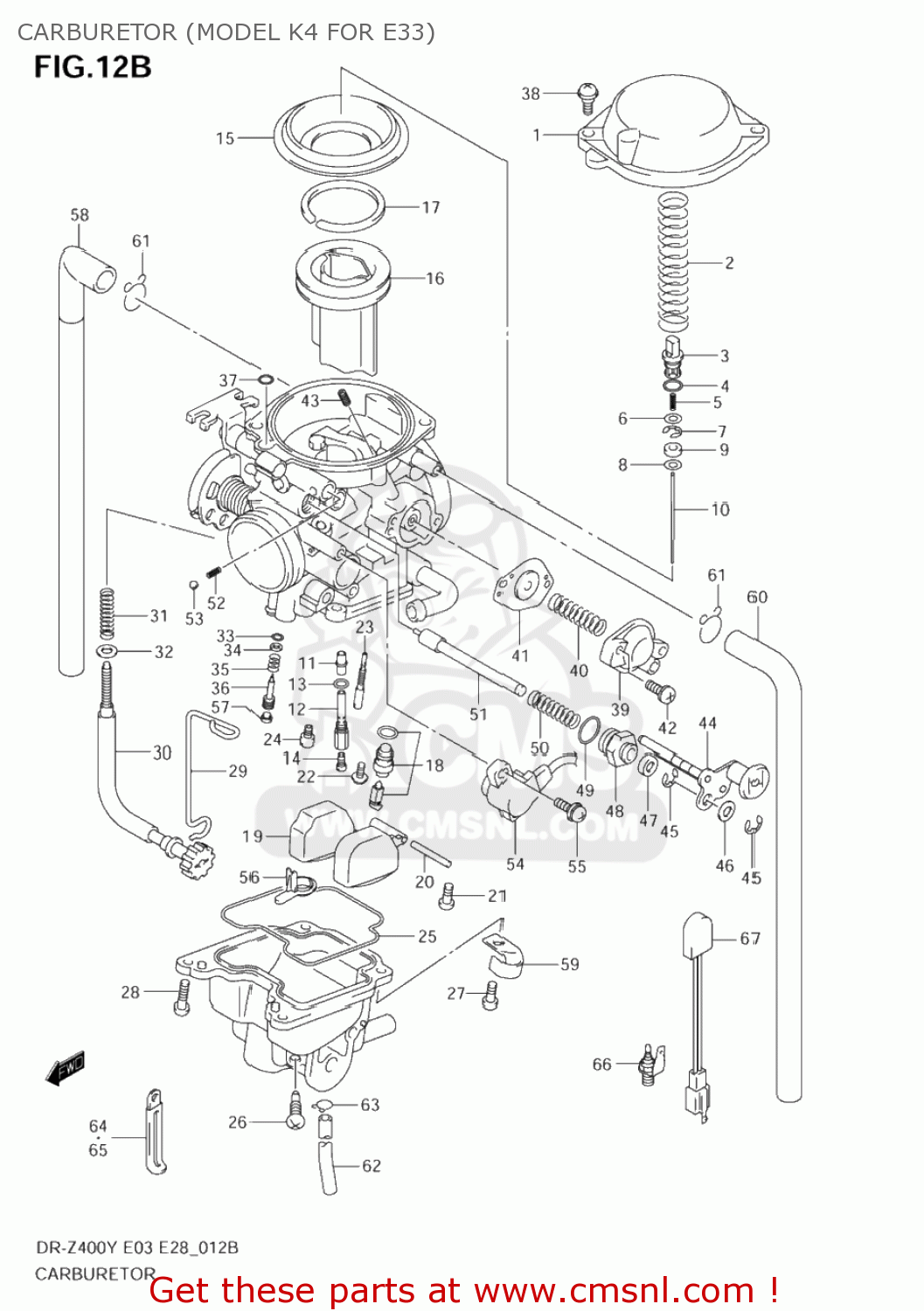

Carburetor (model k4 for e33) diagram DR-Z400E 2003 (K3) USA (E03) DRZ400E DR Z400E

CARBURETOR (MODEL K4 FOR E33) DR-Z400E 2003 (K3) USA (E03) DRZ400E DR Z400E
CARBURETOR (MODEL K4 FOR E33) DR-Z400E 2003 (K3) USA (E03) DRZ400E DR Z400E
CARBURETOR (MODEL K4 FOR E33) DR-Z400E 2003 (K3) USA (E03) DRZ400E DR Z400E
prices are in EUR
ref
part #
description
quantity

1320029F20
ref:
13200-29F21
CARBURETOR ASSY
€ 366.50
1
1350208F00
ref: 1
COVER,DIAPHRAGM
1350208F00
€ 32.00
2
1357307F00
ref: 2
SPRING
1357307F00
€ 9.00
3
1341833E00
ref: 3
HOLDER
1341833E00
€ 4.50
4
0928005004
ref: 4
O RING(D:1.9,ID:4.8)
0928005004
€ 2.00
5
1348104F00
ref: 5
SPRING
1348104F00
€ 2.50
6
1338219E00
ref: 6
WASHER
1338219E00
€ 3.00
7
1339417E60
ref: 7
E RING,MULTIPLE JET NOZZLE
1339417E60
€ 1.50
8
1338713F00
ref: 8
RING
1338713F00
€ 6.00
9
1329129FA0
ref: 9
WASHER
1329129FA0
€ 2.50
10
1338329F20
ref: 10
NEEDLE,JET
€ 0.00
11
1334129F20
ref: 11
JET,NEEDLE
€ 0.00
12
1338529FA0
ref: 12
HOLDER,JET
1338529FA0
€ 22.00
13
1324643010
ref: 13
O RING
1324643010
€ 4.00
14
0949128011
ref: 14
JET,MAIN(140)
0949128011
€ 11.50
15
1350717C01
ref: 15
DIAPHRAGM
1350717C01
€ 24.50
16
1350129FA0
ref: 16
VALVE,PISTON
1350129FA0
€ 57.50
17
1350414E00
ref: 17
RING
1350414E00
€ 4.00
18
1337029FA0
ref: 18
VALVE ASSY,NEEDLE
1337029FA0
€ 49.00
19
1325004F00
ref: 19
FLOAT ASSY
1325004F00
€ 27.50
20
1325401010
ref: 20
PIN,FLOAT
1325401010
€ 3.00
21
0211204083
ref: 21
02112-0408A
SCREW
€ 2.00
22
1360205A10
ref: 22
SCREW
1360205A10
€ 4.00
23
0949222014
ref: 23
JET,PILOT(22.5)
0949222014
€ 11.50
24
0949162006
ref: 24
JET,MAIN(62.5)
0949162006
€ 6.00
25
1325804F00
ref: 25
GASKET (NAS)
1325804F00
€ 9.00
26
1324713A00
ref: 26
13247-02340
SCREW,DRAIN
1324713A00
€ 5.50
27
0211204107
ref: 27
SCREW
0211204107
€ 2.00
28
0211204123
ref: 28
02112-0412A
SCREW
0211204123
€ 1.50
29
1367129FA0
ref: 29
CLIP
€ 12.00
30
1326729FA0
ref: 30
SCREW,ADJUST
1326729FA0
€ 40.00
31
1326837420
ref: 31
SPRING,THROTTLE SCREW
1326837420
€ 3.50
32
1361543010
ref: 32
WASHER,STARTER SHAFT
1361543010
€ 2.50
33
1329529900
ref: 33
O RING,PILOT AIR SCREW
1329529900
€ 4.00
34
1329129900
ref: 34
WASHER
1329129900
€ 2.00
35
1326848700
ref: 35
SPRING,THROTTLE SCREW
1326848700
€ 3.50
36
1327921G00
ref: 36
ADJUSTER
1327921G00
€ 9.50
37
1329533010
ref: 37
O RING
1329533010
€ 4.50
38
1324733E00
ref: 38
SCREW
1324733E00
€ 3.00
39
1350210F00
ref: 39
COVER ASSY
1350210F00
€ 26.00
40
1348141F20
ref: 40
SPRING
1348141F20
€ 4.50
41
1348010F00
ref: 41
DIAPHRAGM ASSY
1348010F00
€ 15.50
42
1360104148
ref: 42
SCREW
1360104148
€ 2.50
43
0949231001
ref: 43
JET,PILOT AIR(155)
€ 0.00
44
1342029FA0
ref: 44
PLATE ASSY
€ 42.50
45
1341538300
ref: 45
E RING
1341538300
€ 2.00
46
1342738300
ref: 46
WASHER
1342738300
€ 1.50
47
1368231210
ref: 47
CAP,STARTER VALVE
1368231210
€ 5.00
48
1341844080
ref: 48
GUIDE SCREW,PLUNGER
1341844080
€ 8.00
49
1327847090
ref: 49
O RING
1327847090
€ 2.00
50
1341743010
ref: 50
SPRING
1341743010
€ 3.50
51
1341129FA0
ref: 51
PLUNGER ASSY
1341129FA0
€ 20.00
52
1343443010
ref: 52
SPRING
1343443010
€ 6.50
53
1359693010
ref: 53
BALL,CARBURETOR
1359693010
€ 3.50
54
1358021F00
ref: 54
SENSOR ASSY
1358021F00
€ 86.50
55
1360219B50
ref: 55
SCREW
1360219B50
€ 3.00
56
1338729FA0
ref: 56
13387-29FA1
RING
€ 9.00
57
1328105A00
ref: 57
PLUG
1328105A00
€ 3.50
58
1368029F20
ref: 58
PIPE,RUBBER
1368029F20
€ 28.00
59
1367114D00
ref: 59
PLATE
€ 3.00
60
1368429FB0
ref: 60
HOSE,AIR VENT(6.5X10.5)
€ 22.00
61
1367111300
ref: 61
CLIP
1367111300
€ 4.50
62
1368625D30
ref: 62
HOSE,OVER FLOW(4.5X8X400)
€ 0.00
63
0940108410
ref: 63
CLIP
€ 3.00
64
0940406432
ref: 64
CLAMP(L:65)
0940406432
€ 2.50
65
0940408420
ref: 65
CLAMP(L:120 T:1.0)
0940408420
€ 3.50
66
1365025E01
ref: 66
HEATER ASSY,CARBURETOR(15W)
1365025E01
€ 35.00
67
1365516F00
ref: 67
THERMO SWITCH,CARB HEATER
1365516F00
€ 41.00
