LEFT HANDLE LEVER (DR-Z400Y/K1/K2/K3/K4)

DR-Z400E 2003 (K3) USA (E03) DRZ400E DR Z400E

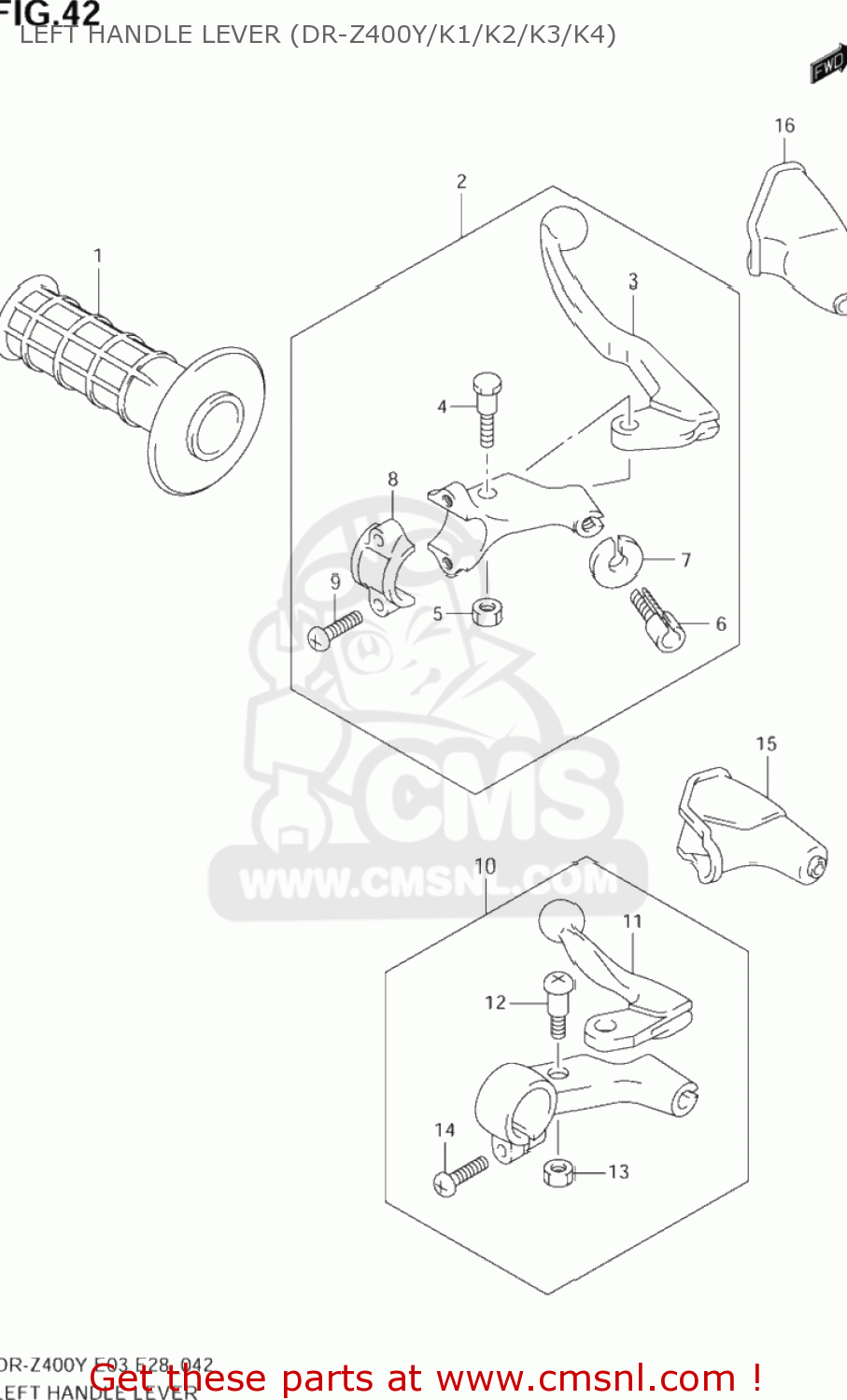

Left handle lever (dr-z400y/k1/k2/k3/k4) diagram DR-Z400E 2003 (K3) USA (E03) DRZ400E DR Z400E

LEFT HANDLE LEVER (DR-Z400Y/K1/K2/K3/K4) DR-Z400E 2003 (K3) USA (E03) DRZ400E DR Z400E

LEFT HANDLE LEVER (DR-Z400Y/K1/K2/K3/K4) DR-Z400E 2003 (K3) USA (E03) DRZ400E DR Z400E

prices are in EUR

ref

part #

description

quantity

1

5721127C00
ref: 1

GRIP,L

€ 11.00

2

5750029FA0
ref: 2

LEVER ASSY,CLUTCH

€ 57.00

3

5762014300
ref: 3

LEVER,CLUTCH

€ 26.00

4

5743131010
ref: 4

BOLT,LEVER PIVOT

€ 9.00

5

0831921068
ref: 5
08319-2106A

NUT 6MM

€ 2.00

6

5744126010
ref: 6

ADJUSTER,CABLE

€ 4.00

7

5744211010
ref: 7

NUT,CABLE ADJUSTER

€ 4.00

8

5751214300
ref: 8

BRACKET,CLUTCH LEVER HOLDER

€ 32.00

9

0912505102
ref: 9

SCREW(5X14)

€ 2.50

10

5870038200
ref: 10

LEVER ASSEMBLY,DECOMPRESSION

€ 169.50

11

5873138200
ref: 11

LEVER,DECOMP

€ 42.00

12

5743101012
ref: 12

BOLT,LEVER PIVOT

€ 5.00

13

5763338200
ref: 13

NUT

€ 2.00

14

0211206203
ref: 14
02112-0620A

SCREW, 6X20

€ 2.00

15

5734237101
ref: 15

COVER,DECOMP LEVER DUST

€ 9.50

16

5734140002
ref: 16

COVER,CLUTCH LEVER

€ 7.50
