FUEL TANK (MODEL K1)

DR-Z400E 2003 (K3) USA (E03) DRZ400E DR Z400E

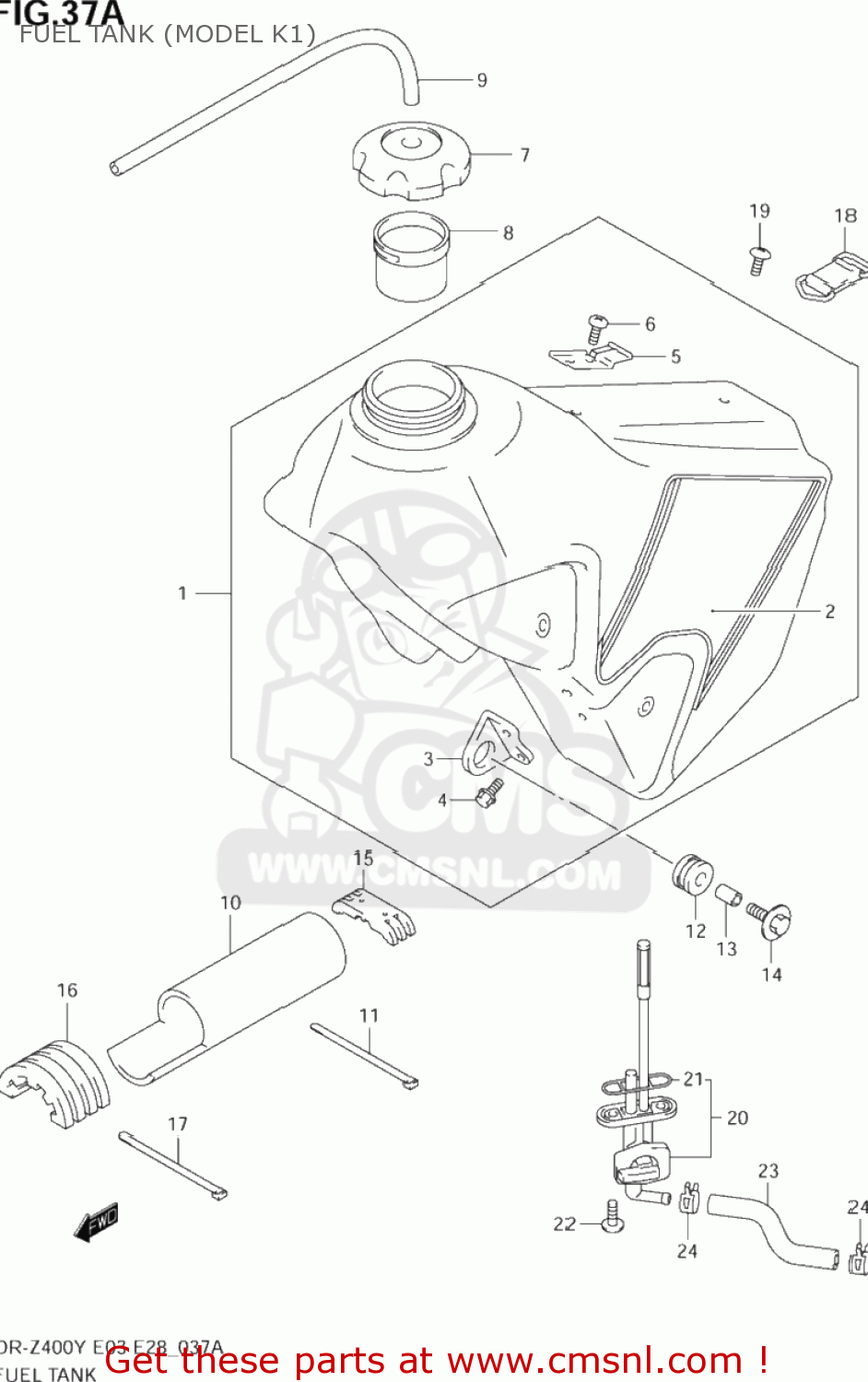

Fuel tank (model k1) diagram DR-Z400E 2003 (K3) USA (E03) DRZ400E DR Z400E

FUEL TANK (MODEL K1) DR-Z400E 2003 (K3) USA (E03) DRZ400E DR Z400E
FUEL TANK (MODEL K1) DR-Z400E 2003 (K3) USA (E03) DRZ400E DR Z400E
FUEL TANK (MODEL K1) DR-Z400E 2003 (K3) USA (E03) DRZ400E DR Z400E
prices are in EUR
ref
part #
description
quantity
1
4410029F50YR1
ref: 1
TANK ASSY,FUEL(YELLOW)
€ 608.00
2
6811029F20ER4
ref: 2
TAPE SET,FUEL TANK
€ 106.00
3
4413127C01
ref: 3
BRACKET,FUEL TANK FR
4413127C01
€ 6.50
4
0154706123
ref: 4
01547-0612B
BOLT
0154706123
€ 2.00
5
4413244E01
ref: 5
HOOK,SEAT FR
4413244E01
€ 5.50
6
0214206123
ref: 6
02142-0612A
SCREW 6X12
0214206123
€ 2.00
7
4420029F00
ref: 7
CAP ASSY,FUEL TANK FILLER
4420029F00
€ 42.50
8
4419919A00
ref: 8
TUBE,FILLER INLET
4419919A00
€ 4.00
9
0935250823600
ref: 9
44420-44AR0
HOSE(5X8.2X600)
0935250823600
€ 13.00
10
4419429F00
ref: 10
SHIELD,FUEL TANK
4419429F00
€ 38.50
11
0940730402
ref: 11
CLAMP(L:300)
0940730402
€ 3.50
12
1476201B01
ref: 12
CUSHION,MUFFLER
1476201B01
€ 3.00
13
0918006268
ref: 13
SPACER(6.5X9X13.5)
0918006268
€ 2.00
14
0911806112
ref: 14
BOLT(6X30)
0911806112
€ 3.00
15
4454229F00
ref: 15
CUSHION,FUEL TANK RR
4454229F00
€ 14.00
16
4454129F00
ref: 16
CUSHION,FUEL TANK
€ 21.50
17
0940730402
ref: 17
CLAMP(L:300)
0940730402
€ 3.50
18
4456044E00
ref: 18
BAND,FUEL TANK RR
4456044E00
€ 8.50
19
0214206163
ref: 19
02142-0616A
SCREW
0214206163
€ 2.50
20
4430029F10
ref: 20
COCK ASSY,FUEL
4430029F10
€ 80.50
21
4434887420
ref: 21
GASKET,JOINT (NAS)
4434887420
€ 5.00
22
0154706163
ref: 22
01547-0616B
BOLT
0154706163
€ 2.50
23
4442129F00
ref: 23
44421-29FR0
HOSE,FUEL
€ 7.50
24
0940111413
ref: 24
CLIP
0940111413
€ 2.50
