MAGNETO (DR-Z400Y/K1/K2/K3)

DR-Z400E 2003 (K3) USA (E03) DRZ400E DR Z400E

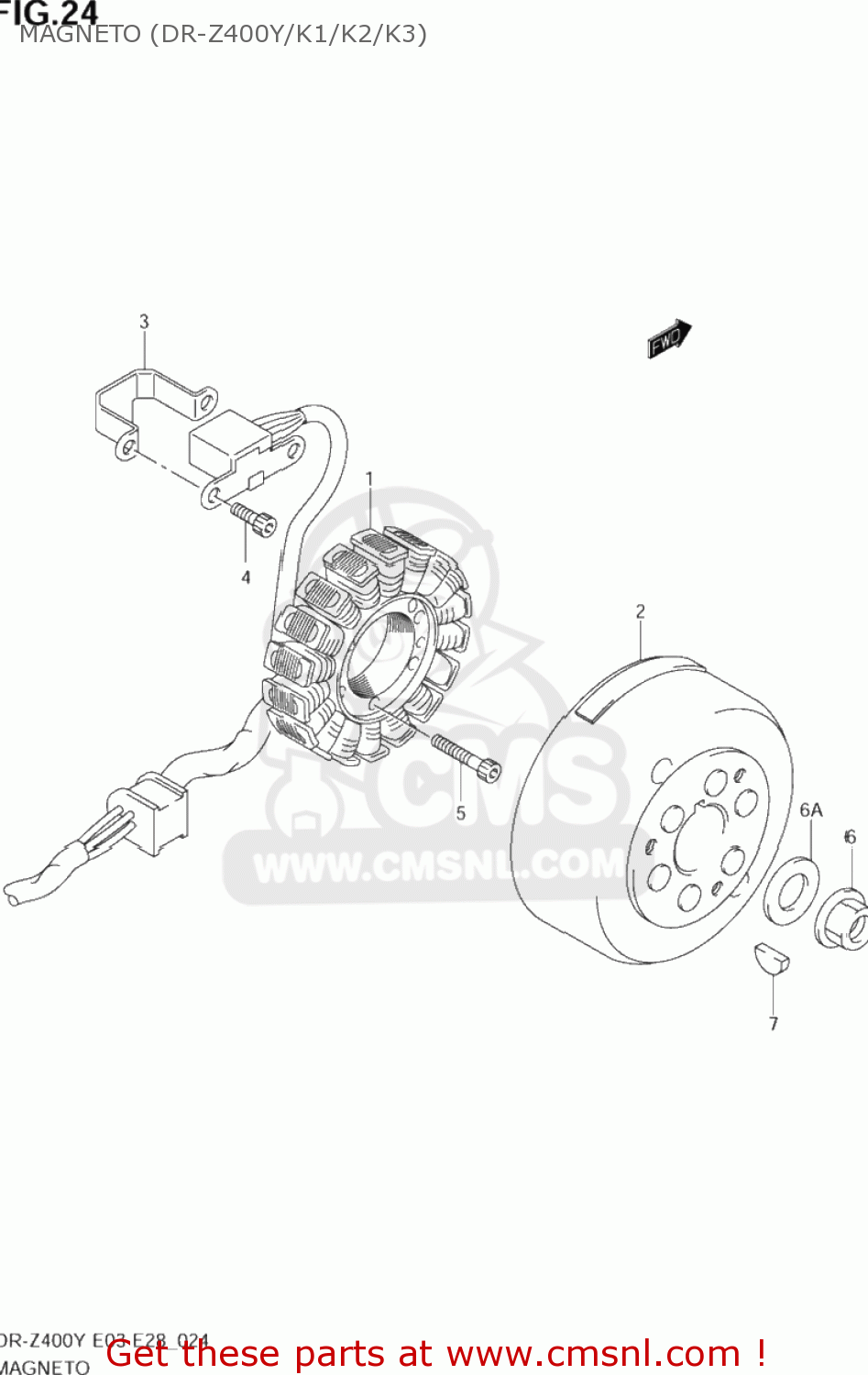

Magneto (dr-z400y/k1/k2/k3) diagram DR-Z400E 2003 (K3) USA (E03) DRZ400E DR Z400E

MAGNETO (DR-Z400Y/K1/K2/K3) DR-Z400E 2003 (K3) USA (E03) DRZ400E DR Z400E
MAGNETO (DR-Z400Y/K1/K2/K3) DR-Z400E 2003 (K3) USA (E03) DRZ400E DR Z400E
MAGNETO (DR-Z400Y/K1/K2/K3) DR-Z400E 2003 (K3) USA (E03) DRZ400E DR Z400E
prices are in EUR
ref
part #
description
quantity
1
3210129F10
ref: 1
STARTER ASSY
3210129F10
€ 637.00
2
3210229F10
ref: 2
ROTOR ASSY
3210229F10
€ 462.50
3
3237114D01
ref: 3
CLAMP,MAGNETO LEAD WIRE
€ 3.50
4
0713005123
ref: 4
07130-0512B
BOLT
€ 2.50
5
0713005203
ref: 5
07130-0520B
SCREW
0713005203
€ 1.50
6
0915912055
ref: 6
NUT
0915912055
€ 3.50
6A
0916012051
ref: 6A
WASHER(12X27X2)
0916012051
€ 1.50
7
0834131039
ref: 7
KEY
0834131039
€ 2.00
