WATER PUMP

DR-Z400E 2003 (K3) USA (E03) DRZ400E DR Z400E

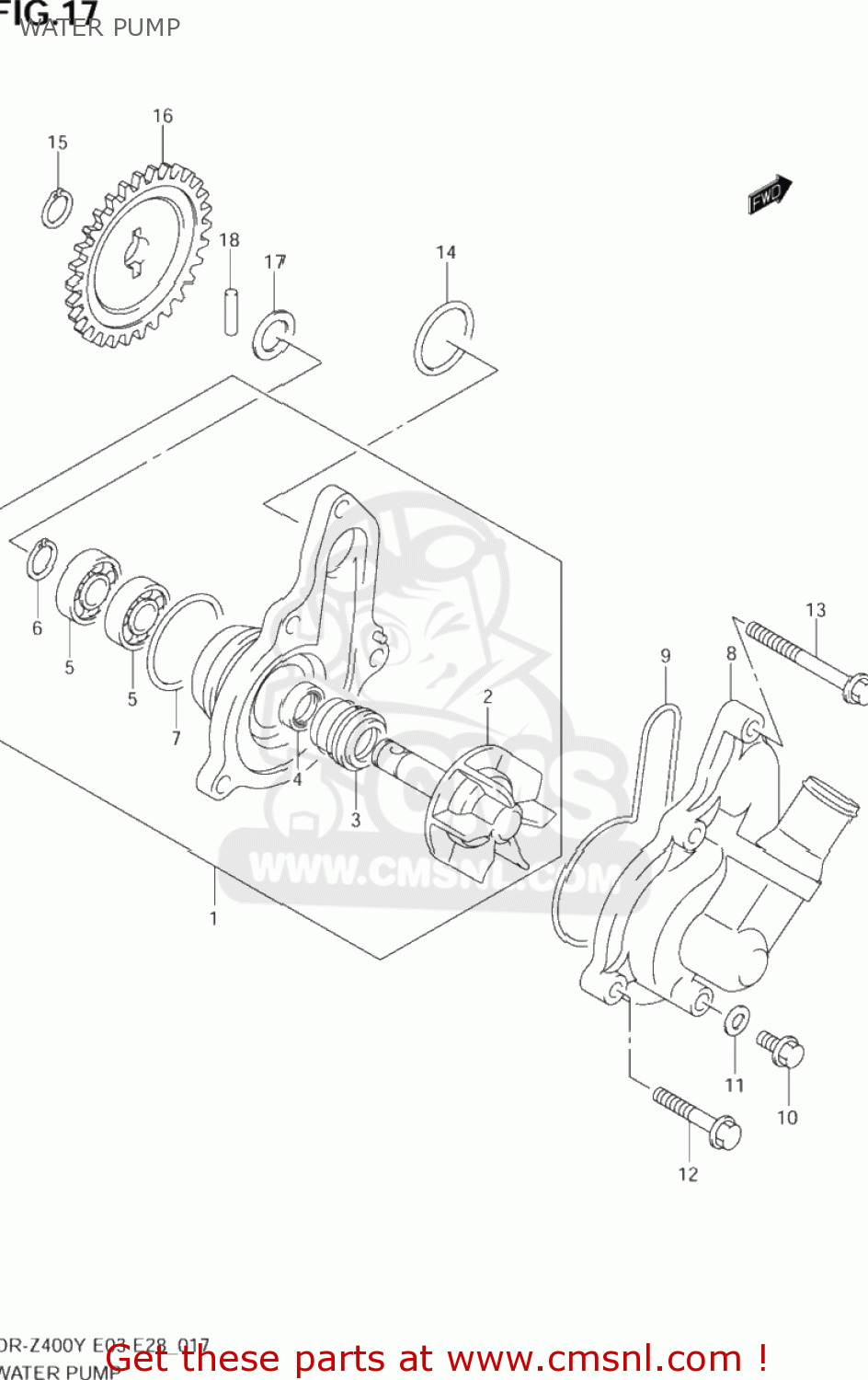

Water pump diagram DR-Z400E 2003 (K3) USA (E03) DRZ400E DR Z400E

WATER PUMP DR-Z400E 2003 (K3) USA (E03) DRZ400E DR Z400E
WATER PUMP DR-Z400E 2003 (K3) USA (E03) DRZ400E DR Z400E
WATER PUMP DR-Z400E 2003 (K3) USA (E03) DRZ400E DR Z400E
prices are in EUR
ref
part #
description
quantity
1
1740029F00
ref: 1
PUMP ASSY,WATER
1740029F00
€ 205.50
2
1749129F00
ref: 2
IMPELLER SHAFT
1749129F00
€ 36.50
3
1747002F10
ref: 3
SEAL,MECHANICAL
1747002F10
€ 21.50
4
1741929F00
ref: 4
SEAL,OIL
1741929F00
€ 11.50
5
0811069000
ref: 5
BEARING
0811069000
€ 18.50
6
0833211086
ref: 6
08332-1108A
E RING
0833211086
€ 2.00
7
1743533400
ref: 7
O RING,WATER PUMP HOLDER
1743533400
€ 13.00
8-1
1741029F01
ref: 8-1
CASE,WATER PUMP
1741029F01
€ 71.00
8-2
1741029F20
ref: 8-2
17410-29F21
WATER PUMP CASE
€ 52.50
8-3
1741029F21
ref: 8-3
CASE,WATER PUMP
1741029F21
€ 52.50
9
1743529F00
ref: 9
O RING,WATER PUMP CASE
1743529F00
€ 8.00
10
0154706103
ref: 10
01547-0610B
BOLT
0154706103
€ 3.00
11
0916806004
ref: 11
GASKET(6.2X11X1).2 (NAS)
0916806004
€ 1.50
12
0910306204
ref: 12
BOLT(6X30)
0910306204
€ 3.50
13
0910306209
ref: 13
BOLT(6X45)
0910306209
€ 2.50
14
0928022001
ref: 14
O RING(D:2.4,ID:21.8)
0928022001
€ 2.00
15
0833131106
ref: 15
08331-3110A
CIRCLIP,10MM
0833131106
€ 2.00
16
1746129F00
ref: 16
GEAR,WATER PUMP DRIVEN
1746129F00
€ 30.00
17
0918110158
ref: 17
SHIM(10X18X0.5)
0918110158
€ 2.50
18
0926104001
ref: 18
PIN(4X18.5)
0926104001
€ 1.50
