HEADLAMP (MODEL K2/K3/K4)

DR-Z400E 2003 (K3) USA (E03) DRZ400E DR Z400E

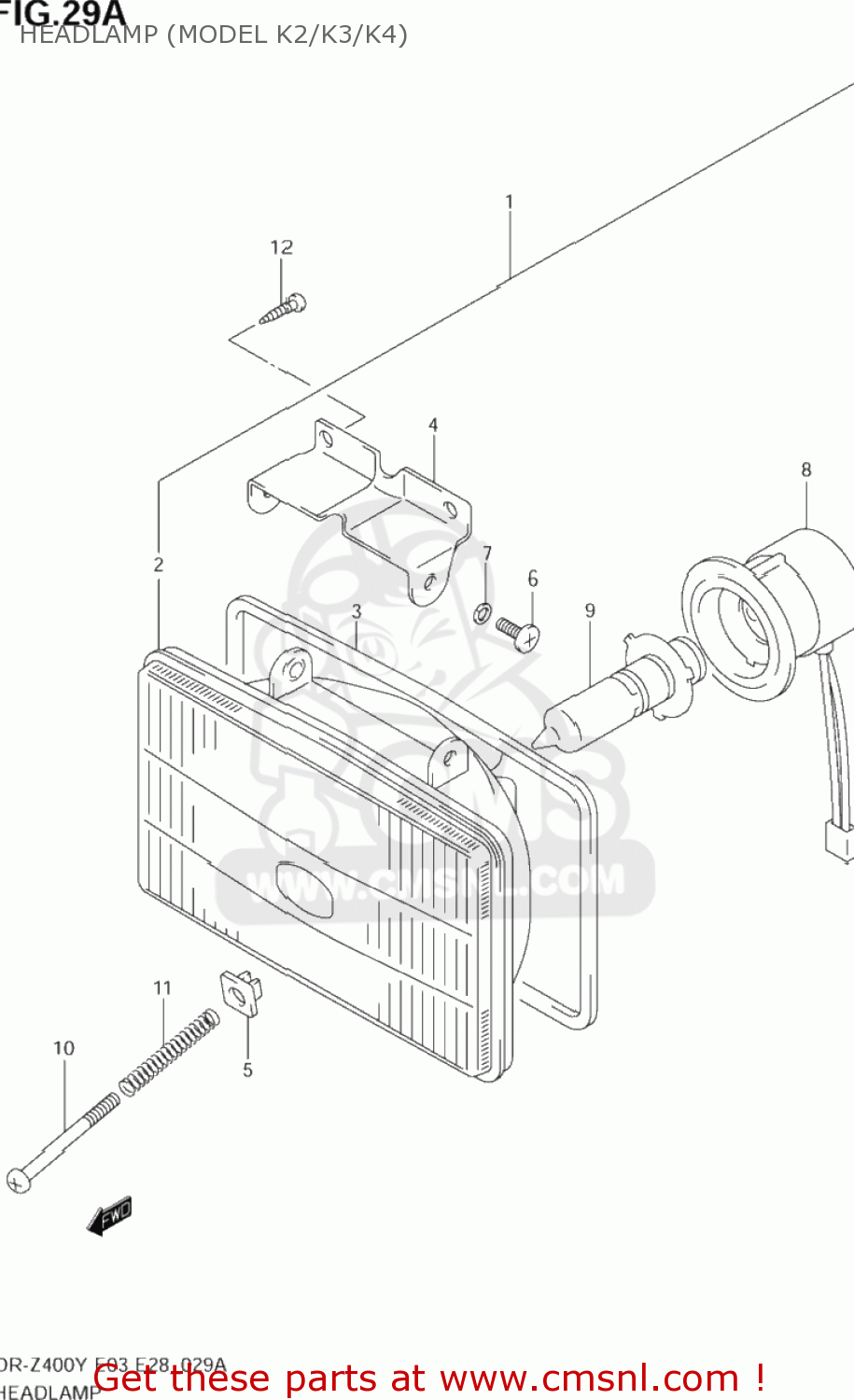

Headlamp (model k2/k3/k4) diagram DR-Z400E 2003 (K3) USA (E03) DRZ400E DR Z400E

HEADLAMP (MODEL K2/K3/K4) DR-Z400E 2003 (K3) USA (E03) DRZ400E DR Z400E
HEADLAMP (MODEL K2/K3/K4) DR-Z400E 2003 (K3) USA (E03) DRZ400E DR Z400E
HEADLAMP (MODEL K2/K3/K4) DR-Z400E 2003 (K3) USA (E03) DRZ400E DR Z400E
prices are in EUR
ref
part #
description
quantity
1-1
3510003D02
ref: 1-1
35100-03D04
HEADLAMP ASSY
€ 160.50
1-2
3510003D03
ref: 1-2
35100-03D04
HEADLAMP ASSY
3510003D03
€ 160.50
2
3512103D02
ref: 2
UNIT,LAMP
3512103D02
€ 43.00
3
3512503D00
ref: 3
GASKET,HEADLAMP (NAS)
3512503D00
€ 7.50
4
3523005D00
ref: 4
BRACKET,LAMP
3523005D00
€ 9.00
5
3513512E20
ref: 5
NUT,ADJUSTING
3513512E20
€ 2.50
6
3513616700
ref: 6
SCREW
3513616700
€ 3.00
7
0832101057
ref: 7
08321-0105A
WASHER,LOCK
0832101057
€ 2.00
8-1
3517103D02
ref: 8-1
35171-03D10
SOCKET
€ 33.00
8-2
3517103D03
ref: 8-2
35171-03D10
SOCKET
€ 33.00
9
0947112105
ref: 9
BULB(12V35/36.5W)
0947112105
€ 75.50
10
0912504034
ref: 10
SCREW(4X75)
0912504034
€ 4.00
11-1
0944007041
ref: 11-1
SPRING
€ 2.50
11-2
0944007075
ref: 11-2
SPRING
0944007075
€ 2.00
12
0351104103
ref: 12
03511-0410A
SCREW
€ 1.50
