FRAME COVER (MODEL Y/K1/K2)

DR-Z400E 2003 (K3) USA (E03) DRZ400E DR Z400E

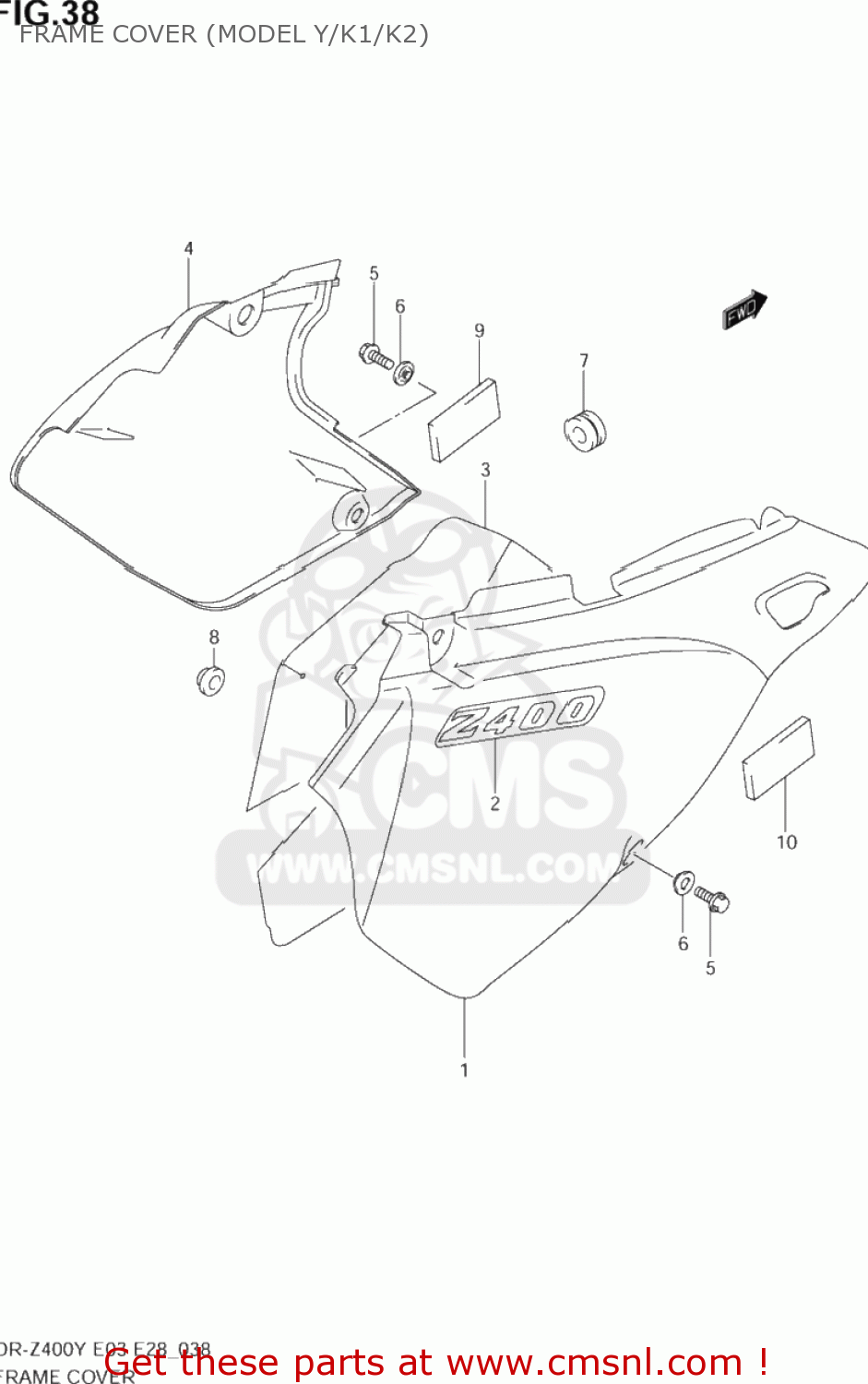

Frame cover (model y/k1/k2) diagram DR-Z400E 2003 (K3) USA (E03) DRZ400E DR Z400E

FRAME COVER (MODEL Y/K1/K2) DR-Z400E 2003 (K3) USA (E03) DRZ400E DR Z400E

FRAME COVER (MODEL Y/K1/K2) DR-Z400E 2003 (K3) USA (E03) DRZ400E DR Z400E

prices are in EUR

ref

part #

description

quantity

1-1

4711129F0030H
ref: 1-1
47111-29FB0-30H

COVER,FRAME,RIGHT

€ 69.50

1-2

4711129F00YR1
ref: 1-2
47111-29F00-YU1

COVER, FRAME RH (YELLOW)

€ 59.50

1-3

4711129F00YU1
ref: 1-3

COVER,FRAME,R(YELLOW)

€ 59.50

2-1

6813129F00CW6
ref: 2-1

EMBLEM,FRAME COVER

€ 11.00

2-2

6813129F10FR4
ref: 2-2

EMBLEM,FRAME COVER

€ 8.50

3

4716629F00
ref: 3

SHIELD,FRAME COVER,R

€ 37.50

4-1

4721129F0030H
ref: 4-1

COVER,FRAME,L(WHITE)

€ 34.00

4-2

4721129F00YR1
ref: 4-2
47211-29F00-YU1

COVER, FRAME LH (YELLOW)

€ 39.50

4-3

4721129F00YU1
ref: 4-3

COVER,FRAME,L(YELLOW)

€ 39.50

4-4

4721129F1030H
ref: 4-4
47211-29FA0-30H

COVER,FRAME,LEFT

€ 34.00

4-5

4721129F10YR1
ref: 4-5
47211-29F10-YU1

COVER, FRAME LH (YELLOW)

€ 36.00

4-6

4721129F10YU1
ref: 4-6

COVER,FRAME,L(YELLOW)

€ 36.00

5

0154706163
ref: 5
01547-0616B

BOLT

€ 2.50

6

0916906041
ref: 6

WASHER

€ 2.00

7

0932006504
ref: 7

CUSHION

€ 4.00

8

0932110018
ref: 8

CUSHION

€ 5.00

9

4716129F00
ref: 9

CUSHION,FRAME COVER,L

€ 3.00

10

7176265G10
ref: 10

CUSHION

€ 4.50
