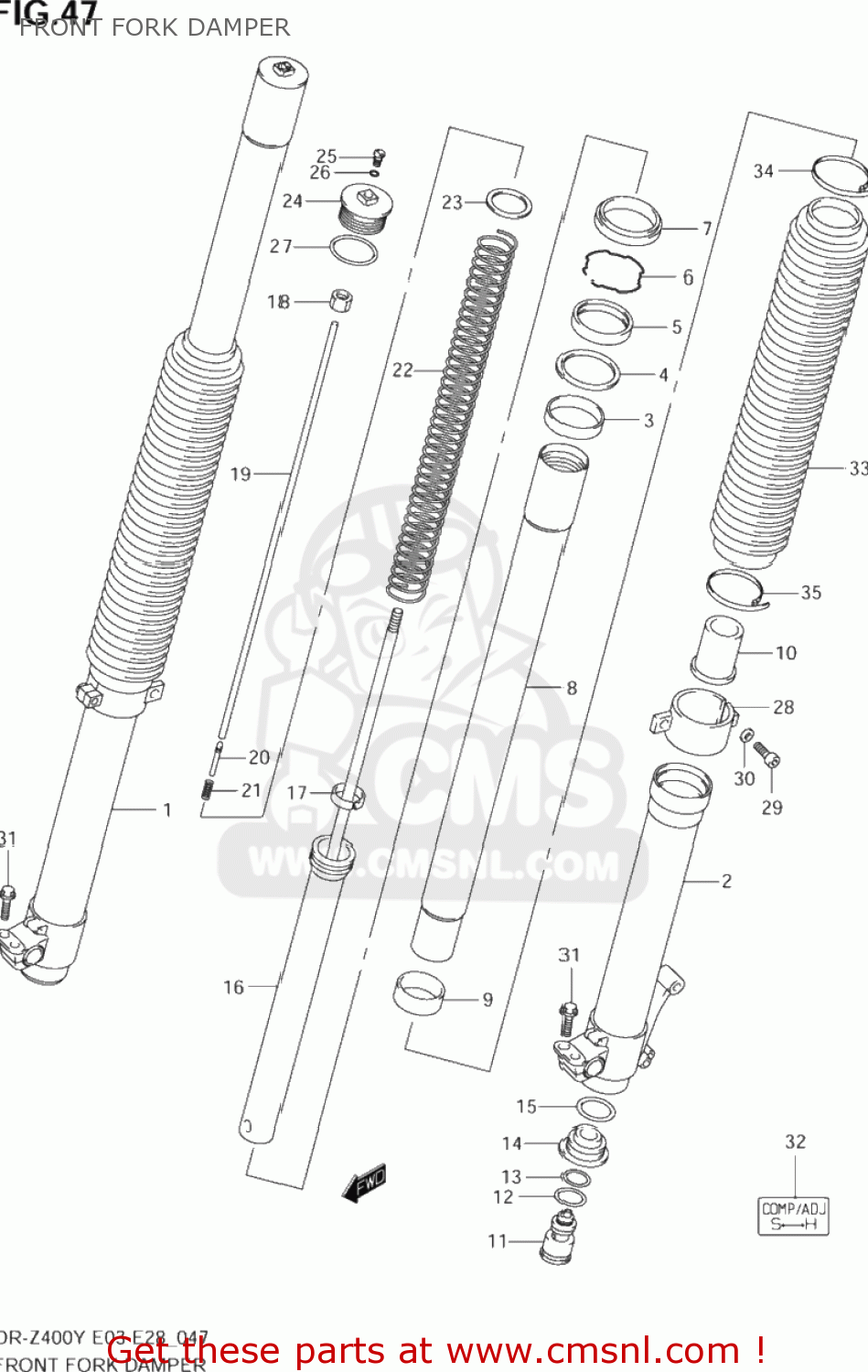

FRONT FORK DAMPER

ref

part #

description

quantity

5110329F00
ref:

DAMPER ASSY,FR FORK,R

€ 1,716.50

5110429F00
ref:

DAMPER ASSY,FR FORK,L

€ 1,716.50

1

5113029F00
ref: 1

TUBE,OUTER,R

€ 814.00

2

5114029F00
ref: 2

TUBE,OUTER,L

€ 814.00

3

5116736E80
ref: 3

BUSH,GUIDE

€ 14.00

4

5115836E00
ref: 4

SPACER,SEAL

€ 5.00

5

5115336E00
ref: 5

SEAL,OIL

€ 19.00

6

5115636E00
ref: 6

RING,STOPPER

€ 4.50

7

5117336E00
ref: 7

SEAL,DUST

€ 19.50

8

5111029F00
ref: 8

TUBE,INNER

€ 489.00

9

5112136E40
ref: 9

BUSH,SLIDE

€ 19.00

10

5119529F00
ref: 10

PIECE,OIL LOCK

€ 53.00

11

5117029F00
ref: 11

BOLT,CTR

€ 196.50

12

5117529F00
ref: 12

O RING

€ 3.50

13

5117429F00
ref: 13

O RING

€ 3.50

14

5120529F00
ref: 14

PLATE,END

€ 44.00

15

5111727C40
ref: 15

O RING

€ 3.50

16

5119029F00
ref: 16

ROD,FR DAMPER

€ 490.00

17

5112229F00
ref: 17

BUSH,SLIDE

€ 14.50

18

5182733E00
ref: 18

NUT

€ 11.00

19

5119129F00
ref: 19

ROD,PUSH

€ 13.50

20

5119205D80
ref: 20

NEEDLE

€ 11.00

21

5119328E00
ref: 21

SPRING,PUSH ROD

€ 3.50

22-1

5117129F00
ref: 22-1

SPRING,FR(K=8.63N/0.88KG)

€ 92.00

22-2

5117129FB0
ref: 22-2

SPRING,FR(SOFT)

€ 121.00

22-3

5117129FA0
ref: 22-3

SPRING,FR(HARD)

€ 93.00

23

5119236E00
ref: 23

JOINT,SPRING

€ 5.50

24

5135129F00
ref: 24

BOLT,FORK

€ 117.50

25

5135728E30
ref: 25

BOLT,PLUG

€ 8.00

26

5135828E30
ref: 26

O RING,PLUG

€ 2.50

27

5111736E00
ref: 27

O RING

€ 3.50

28

5120329F00
ref: 28

HOLDER,BOOT

€ 31.00

29

0713005207
ref: 29

BOLT

€ 2.00

30

0916005044
ref: 30

WASHER(5.5X10X1)

€ 1.50

31

5132127C40
ref: 31

BOLT,HANDLE HOLDER(8X35)

€ 3.00

32

5114929E40
ref: 32

LABEL

€ 3.50

33

5157129F00019
ref: 33

BOOT

€ 57.50

34

5157529F00
ref: 34

BAND,BOOT UPR

€ 10.50

35

5157629F00
ref: 35

BAND,BOOT LWR

€ 6.50

all assemblies
