FRAME

DR-Z400E 2003 (K3) USA (E03) DRZ400E DR Z400E

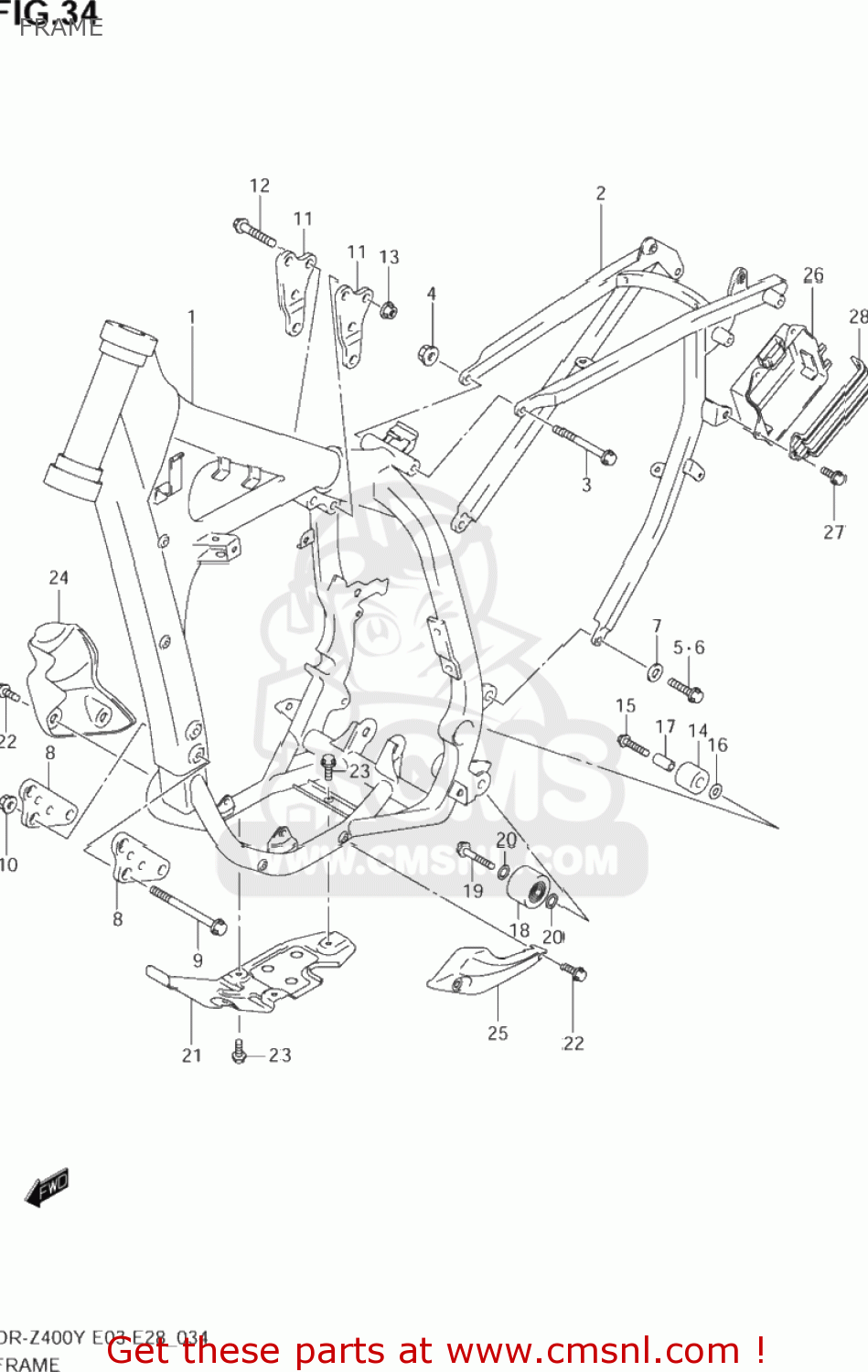

Frame diagram DR-Z400E 2003 (K3) USA (E03) DRZ400E DR Z400E

FRAME DR-Z400E 2003 (K3) USA (E03) DRZ400E DR Z400E
FRAME DR-Z400E 2003 (K3) USA (E03) DRZ400E DR Z400E
FRAME DR-Z400E 2003 (K3) USA (E03) DRZ400E DR Z400E
prices are in EUR
ref
part #
description
quantity
1-1
4110029F0024K
ref: 1-1
FRAME COMP
4110029F0024K
€ 1,599.50
1-2
4110029F0017U
ref: 1-2
FRAME(GRAY)
€ 2,059.50
1-3
4110029F00YU8
ref: 1-3
FRAME (GRAY)
€ 1,207.00
2-1
4120029F00
ref: 2-1
RAIL COMP,SEAT
€ 532.50
2-2
4120029F10
ref: 2-2
RAIL COMP,SEAT
€ 595.50
3
0910308098
ref: 3
BOLT(8X115)
0910308098
€ 3.00
4
0831931087
ref: 4
NUT
0831931087
€ 2.50
5
0910408035
ref: 5
BOLT(8X18)
0910408035
€ 2.00
6
0910308364
ref: 6
BOLT(8X20)
0910308364
€ 2.00
7
0916008120
ref: 7
WASHER(8.5X18X2)
0916008120
€ 2.50
8
4191129F00
ref: 8
PLATE,ENG MTG FR
4191129F00
€ 25.00
9
0910308363
ref: 9
BOLT(8X90)
0910308363
€ 7.50
10
0831931087
ref: 10
NUT
0831931087
€ 2.50
11
4199329F10
ref: 11
PLATE,HEAD MTG RR
4199329F10
€ 19.00
12
0910308081
ref: 12
BOLT(8X50)
0910308081
€ 3.50
13
0831931087
ref: 13
NUT
0831931087
€ 2.50
14
4391113E10
ref: 14
ROLLER,CHAIN CONTROL UPR
4391113E10
€ 17.00
15
0910308083
ref: 15
BOLT(8X41)
0910308083
€ 3.50
16
0821108201
ref: 16
WASHER
0821108201
€ 2.00
17
0918008215
ref: 17
SPACER(8.6X12.2X26.5)
0918008215
€ 4.00
18
4391027C11
ref: 18
ROLLER,CHAIN
4391027C11
€ 36.50
19
0910308083
ref: 19
BOLT(8X41)
0910308083
€ 3.50
20
0918108111
ref: 20
SHIM(8X12X1)
0918108111
€ 2.00
21
4251029F00
ref: 21
PROTECTOR,ENGINE
4251029F00
€ 81.50
22
0911108087
ref: 22
BOLT(8X16.5)
0911108087
€ 3.00
23
0155006123
ref: 23
01550-0612A
BOLT
0155006123
€ 2.50
24
4252129F00
ref: 24
42520-29810
GUARD,WATER PUMP
4252129F00
€ 13.50
25
4253129F00
ref: 25
42530-29810
GUARD,MAG COVER
4253129F00
€ 13.50
26
4154129F00
ref: 26
HOLDER,BATTERY
4154129F00
€ 28.50
27
0911106072
ref: 27
BOLT(6X17.8)
0911106072
€ 2.00
28
4156129F00
ref: 28
BAND,BATTERY HOLDER
4156129F00
€ 11.00
