CYLINDER

DR-Z400E 2006 (K6) USA (E03) DRZ400E DR Z400E

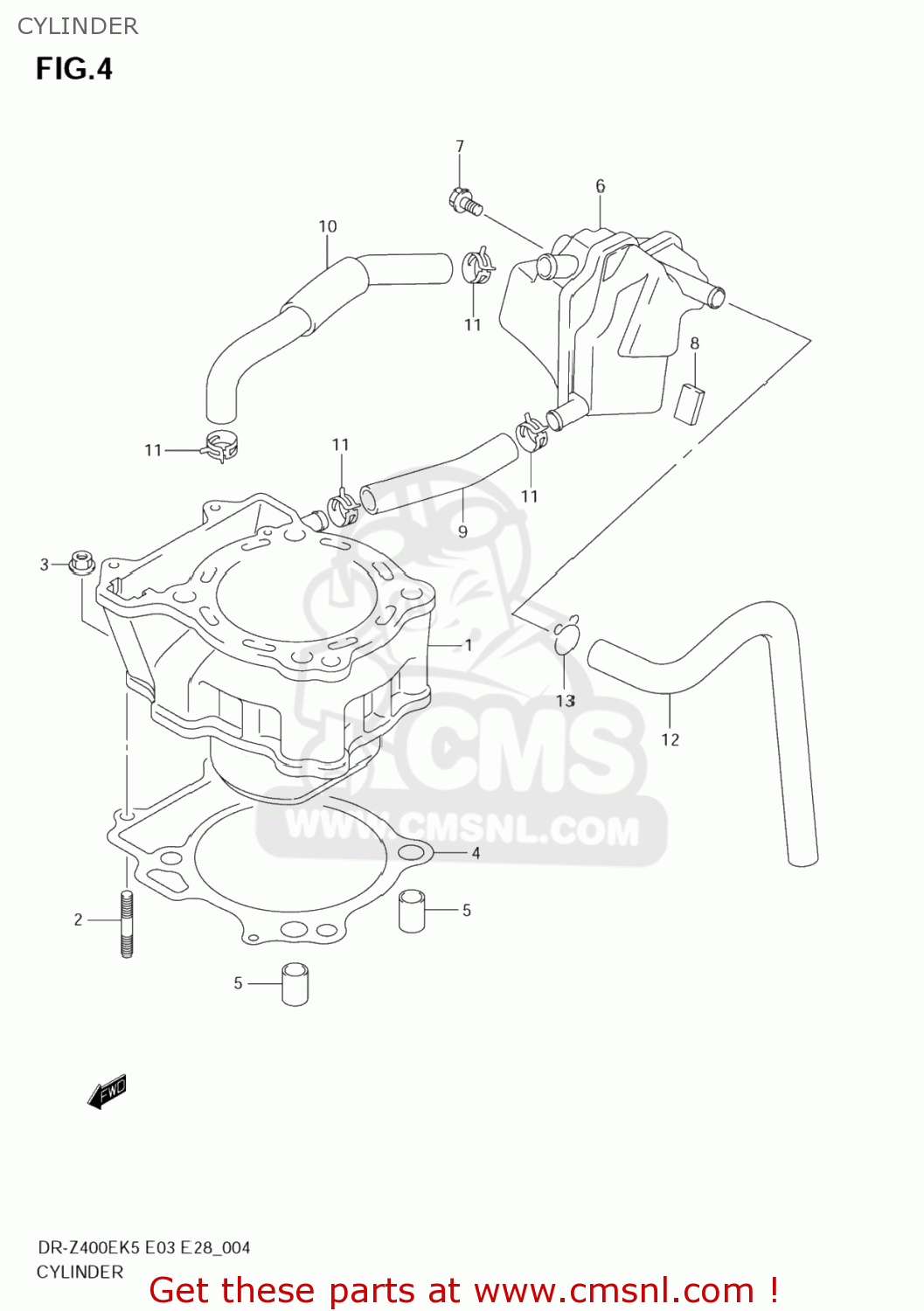

Cylinder diagram DR-Z400E 2006 (K6) USA (E03) DRZ400E DR Z400E

prices are in EUR

ref

part #

description

quantity

1121029F200F0
ref: 1

CYLINDER

€ 467.00

0142106253
ref: 2
01421-0625A

STUD BOLT

€ 2.00

0831610063
ref: 3
08316-1006B

NUT

€ 2.50

4-1

1124129F00
ref: 4-1

GASKET,CYLINDER (NAS)

€ 11.00

4-2

1124129F11
ref: 4-2

GASKET,CYLINDER (NAS)

€ 19.00

0421113189
ref: 5

PIN

€ 2.50

1133029F00
ref: 6

TANK,OIL RETURN

€ 35.00

7-1

0155006103
ref: 7-1
01550-0610A

BOLT

€ 2.50

7-2

015500610A
ref: 7-2

BOLT

€ 2.00

3365137000
ref: 8

PROTECTOR(170X95X3.0)

€ 5.00

1133229F00
ref: 9

HOSE,BREATHER

€ 9.00

1133329F00
ref: 10

HOSE,BREATHER

€ 17.00

0940115404
ref: 11

CLIP

€ 2.50

1133429F00
ref: 12

HOSE,BREATHER

€ 18.00

0940115101
ref: 13

CLIP

€ 2.00

CYLINDER

all assemblies
