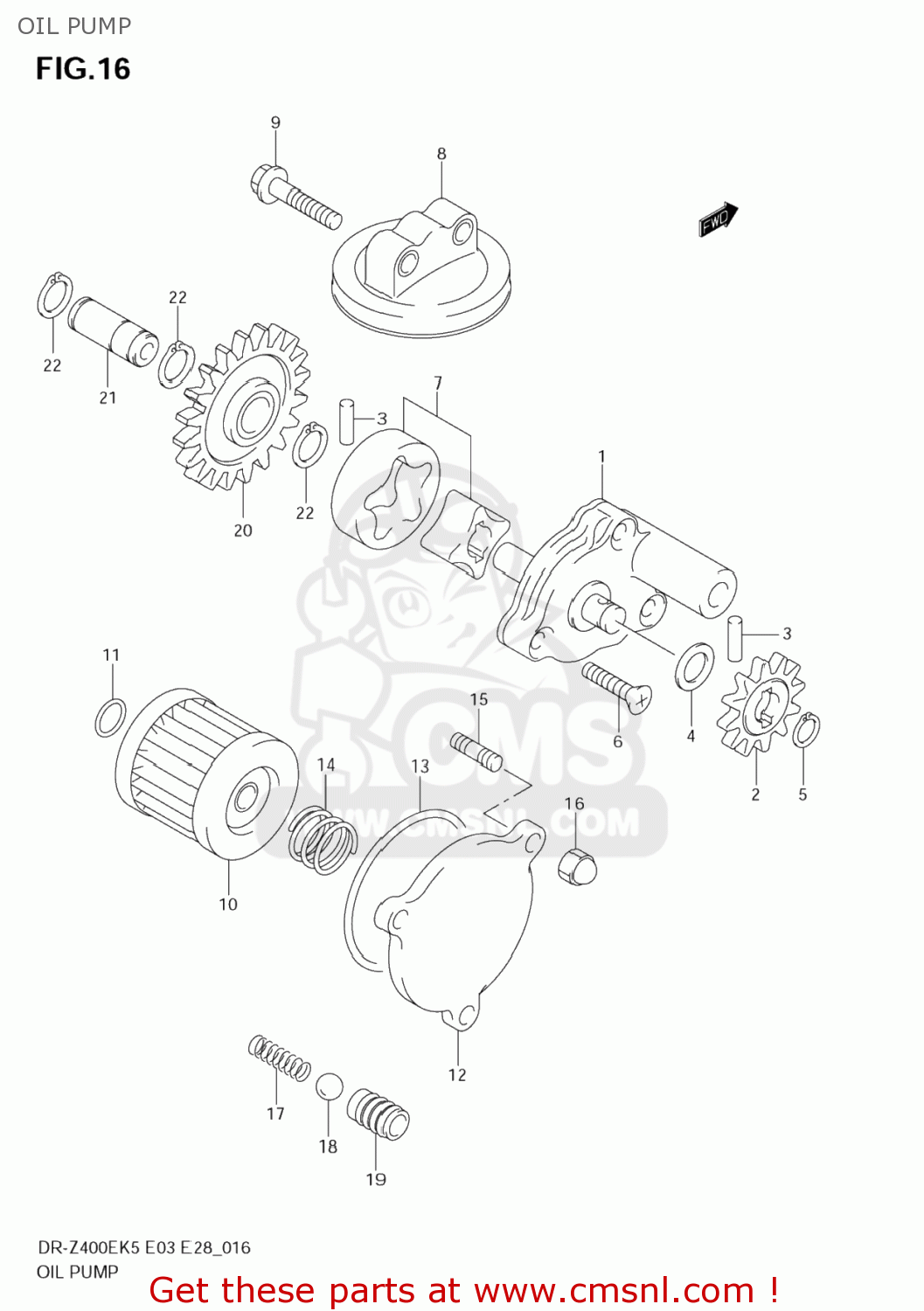

OIL PUMP

ref

part #

description

quantity

1

1640029F00
ref: 1

PUMP ASSY,ENGINE OIL NO.1

€ 135.00

2

1633129F01
ref: 2

GEAR,OIL PUMP DRIVEN

€ 21.00

3

0926104009
ref: 3

PIN(4X15.8)

€ 1.50

4

0918110158
ref: 4

SHIM(10X18X0.5)

€ 2.50

5

0833131106
ref: 5
08331-3110A

CIRCLIP,10MM

€ 2.00

6

0212206253
ref: 6
02122-0625A

SCREW

€ 2.00

7

1641029F00
ref: 7

ROTOR SET,OIL PUMP,NO.2

€ 38.00

8

1652029F00
ref: 8

STRAINER,OIL PUMP NO.2

€ 13.50

9-1

0155006253
ref: 9-1
01550-0625A

BOLT

€ 2.50

9-2

015500625A
ref: 9-2

BOLT

€ 2.50

10

1651029F00
ref: 10

FILTER ASSY,ENGINE OIL

€ 9.50

11

0928013004
ref: 11

O RING(D:1.9,ID:13)

€ 2.50

12

1651247E00
ref: 12

CAP,OIL FILTER

€ 19.00

13

0928054001
ref: 13

O RING(D:2.4,ID:52.6)

€ 4.00

14

0944018002
ref: 14

SPRING

€ 1.50

15

0910806123
ref: 15

BOLT,STUD

€ 3.00

16-1

0831310063
ref: 16-1
08313-1006A

NUT

€ 2.00

16-2

083131006A
ref: 16-2

NUT

€ 1.50

17

0944007073
ref: 17

SPRING

€ 4.00

18

0611112004
ref: 18

BALL

€ 1.50

19

1644229F00
ref: 19

SEAT,OIL CHECK VALVE

€ 22.00

20

1632129F00
ref: 20

GEAR,OIL PUMP IDLE

€ 21.00

21

1632229F00
ref: 21

SHAFT,OIL PUMP IDLE GEAR

€ 12.50

22

0833131126
ref: 22
08331-3112A

CIRCLIP,12 MM

€ 2.00

all assemblies
