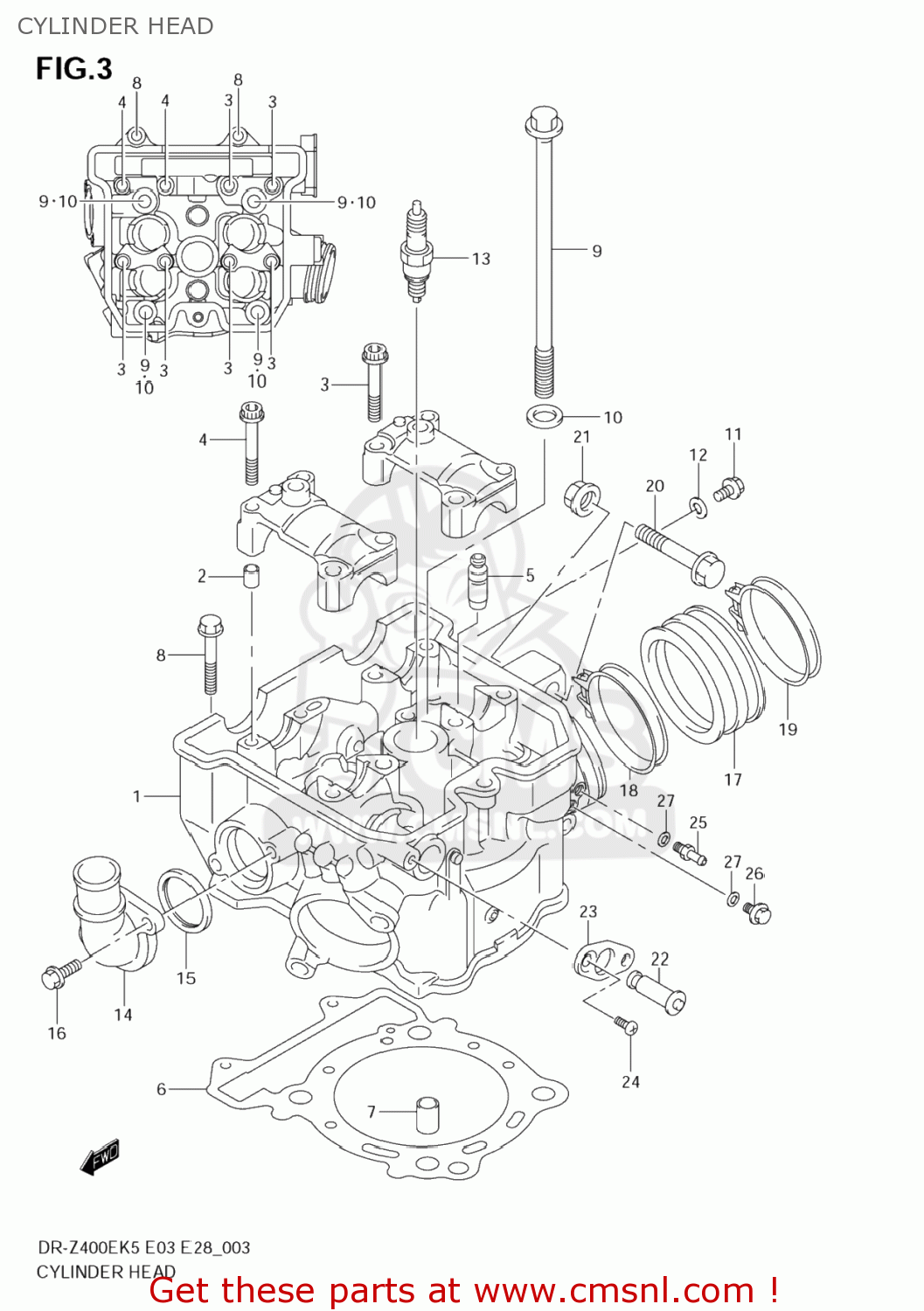

CYLINDER HEAD

ref

part #

description

quantity

1

1110029F01
ref: 1

HEAD ASSY,CYLINDER

€ 990.50

2

0920608001
ref: 2

PIN(6.2X8X11)

€ 2.00

3

0712006403
ref: 3
07120-0640B

BOLT

€ 3.50

4

0712006453
ref: 4
07120-0645B

06453

€ 3.50

5

1111520E70
ref: 5

GUIDE,VALVE

€ 19.00

6

1114129F01
ref: 6

GASKET,CYLINDER HEAD (NAS)

€ 34.00

7

0421113189
ref: 7

PIN

€ 2.50

8

0910306504
ref: 8

BOLT(6X39)

€ 3.50

9

0910310276
ref: 9

BOLT(10X175)

€ 13.50

10

0916010082
ref: 10

WASHER(10.5X19X2)

€ 2.00

11

0155006103
ref: 11
01550-0610A

BOLT

€ 2.50

12

0916806023
ref: 12

GASKET(5.8X13X1.2) (NAS)

€ 2.00

13-1

0948200456
ref: 13-1

PLUG,SPARK(CR8E)

€ 7.00

13-2

0948200457
ref: 13-2

PLUG,SPARK(U24ESR-N)

€ 7.00

13-3

0948200516
ref: 13-3

PLUG,SPARK(CR7E)

€ 8.50

13-4

0948200458
ref: 13-4

PLUG,SPARK(NGK CR9E)

€ 8.50

13-5

0948200460
ref: 13-5

PLUG,SPARK(CR10E)

€ 8.50

13-6

0948200515
ref: 13-6

PLUG,SPARK(U22ESR-N)

€ 8.50

13-7

0948200459
ref: 13-7

PLUG,SPARK(U27ESR-N)

€ 8.50

13-8

0948200461
ref: 13-8

PLUG,SPARK(U31ESR-N)

€ 8.50

14

1766129F00
ref: 14

COVER,THERMOSTAT

€ 25.50

15

1766430B00
ref: 15

SEAL,THERMOSTAT COVER

€ 41.00

16

0154706163
ref: 16
01547-0616B

BOLT

€ 2.50

17-1

1311129F00
ref: 17-1

PIPE,INTAKE

€ 18.50

17-2

1311129F10
ref: 17-2

PIPE,INTAKE

€ 13.50

18

0940258208
ref: 18

CLAMP

€ 5.50

19-1

0940258208
ref: 19-1

CLAMP

€ 5.50

19-2

0940252208
ref: 19-2

CLAMP

€ 5.50

20

0910310235
ref: 20

BOLT(10X50)

€ 4.50

21

0915910058
ref: 21
09159-10115

NUT

€ 4.00

22

1294529F00
ref: 22

PLUG,DECOMP SHAFT HOLE

€ 13.50

23

1294329F00
ref: 23

RETAINER,DECOMP SHAFT SEAL

€ 4.50

24

0212206123
ref: 24
02122-0612A

SCREW

€ 3.00

25

1368529F00
ref: 25

UNION,INTAKE PORT

€ 8.50

26-1

0910308335
ref: 26-1
09103-08421

BOLT

€ 3.00

26-2

0910308335
ref: 26-2
09103-08421

BOLT

€ 3.00

27

0916808016
ref: 27

GASKET(8.2X14X1) (NAS)

€ 1.00
