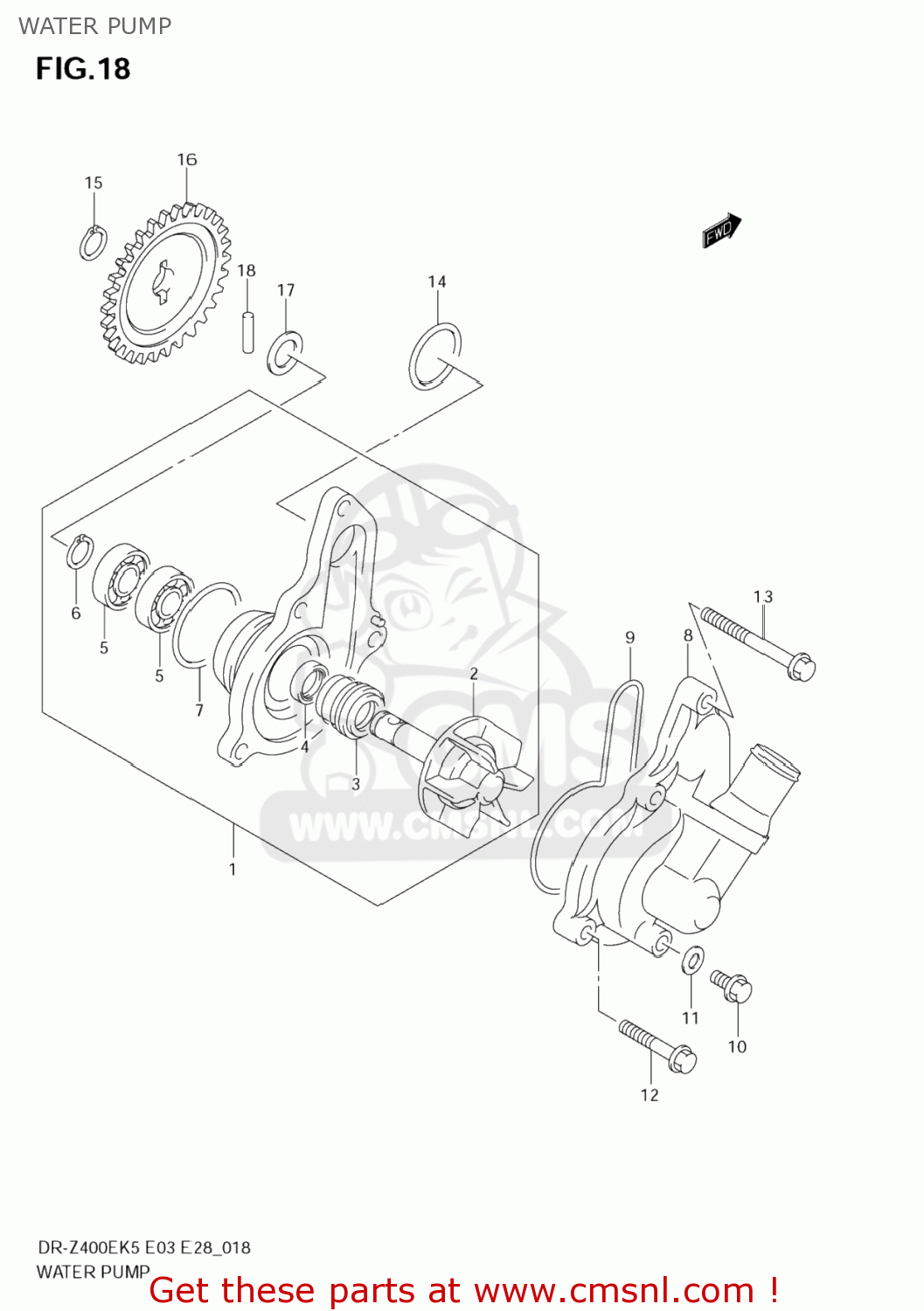

WATER PUMP

ref

part #

description

quantity

1-1

1740029F00
ref: 1-1

PUMP ASSY,WATER

€ 205.50

1-2

1740029F10
ref: 1-2

PUMP ASSY,WATER

€ 142.00

2-1

1749129F00
ref: 2-1

IMPELLER SHAFT

€ 36.50

2-2

1749129F10
ref: 2-2

IMPELLER SHAFT

€ 25.00

3

1747002F10
ref: 3

SEAL,MECHANICAL

€ 21.50

4-1

1741929F00
ref: 4-1

SEAL,OIL

€ 11.50

4-2

0928310004
ref: 4-2

SEAL,OIL(10X21X5)

€ 4.50

5

0811069000
ref: 5

BEARING

€ 18.50

6

0833211086
ref: 6
08332-1108A

E RING

€ 2.00

7

1743533400
ref: 7

O RING,WATER PUMP HOLDER

€ 13.00

8

1741029F21
ref: 8

CASE,WATER PUMP

€ 52.50

9

1743529F00
ref: 9

O RING,WATER PUMP CASE

€ 8.00

10

0154706103
ref: 10
01547-0610B

BOLT

€ 3.00

11

0916806026
ref: 11

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

12

0910306204
ref: 12

BOLT(6X30)

€ 3.50

13

0910306209
ref: 13

BOLT(6X45)

€ 2.50

14

0928022001
ref: 14

O RING(D:2.4,ID:21.8)

€ 2.00

15

0833131106
ref: 15
08331-3110A

CIRCLIP,10MM

€ 2.00

16

1746129F00
ref: 16

GEAR,WATER PUMP DRIVEN

€ 30.00

17

0918110158
ref: 17

SHIM(10X18X0.5)

€ 2.50

18

0926104001
ref: 18

PIN(4X18.5)

€ 1.50
