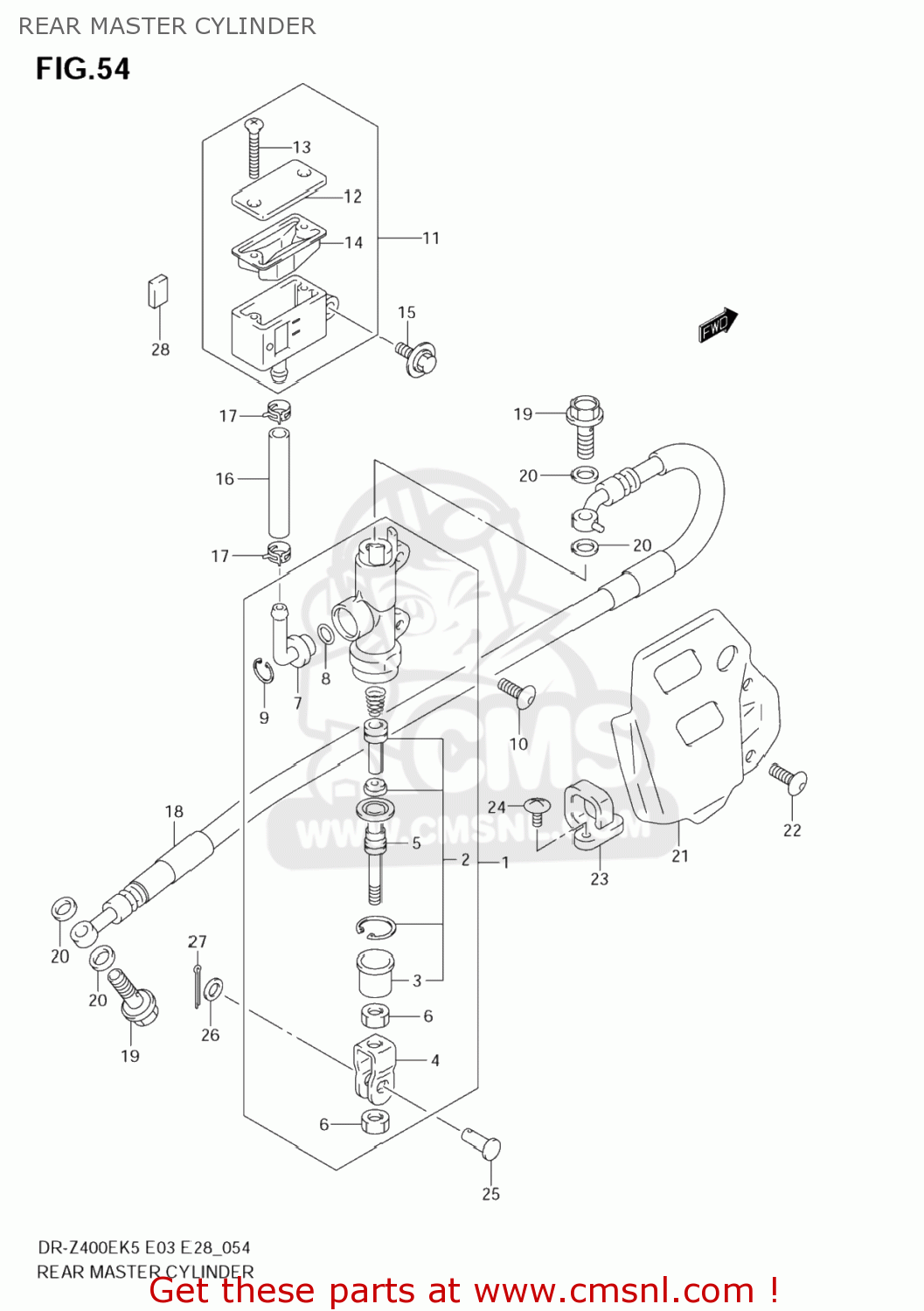

REAR MASTER CYLINDER

ref

part #

description

quantity

1

6960029F00
ref: 1

CYLINDER ASSY,RR MASTER

€ 131.50

2

6960004820
ref: 2

PISTON/CUP SET

€ 31.00

3

6969100A00
ref: 3

BOOT

€ 3.50

4

6969229F00
ref: 4

YOKE

€ 13.50

5

6967036E00
ref: 5

ROD,PUSH

€ 15.00

6

6969305A00
ref: 6

NUT

€ 1.50

7

6967200B20
ref: 7

CONNECTOR

€ 5.00

8

6968634200
ref: 8

O RING

€ 3.50

9

6967400B20
ref: 9

CIRCLIP

€ 3.00

10

0913906067
ref: 10

SCREW(6X16)

€ 3.00

11

6974036E00
ref: 11

TANK ASSY,RESERVOIR

€ 56.00

12

5966927C01
ref: 12

CAP

€ 10.00

13

6968936E00
ref: 13

SCREW

€ 2.00

14

5966714500
ref: 14

DIAPHRAGM

€ 6.50

15

0911606170
ref: 15

BOLT(6X16)

€ 3.00

16

5973142E00
ref: 16

HOSE,FR RESERVOIR TANK

€ 8.50

17

6973500B20
ref: 17

CLAMP,RESERVOIR HOSE

€ 3.00

18

6948029F00
ref: 18
69480-29F01

HOSE COMP,REAR BRAKE

€ 94.50

19

0936010042
ref: 19
09360-10062

BOLT UNION

€ 5.00

20

0916110009
ref: 20

WASHER(10X15X1.5)

€ 2.00

21

4357136E20
ref: 21

GUARD,RR MASTER CYLINDER

€ 24.50

22

0913906067
ref: 22

SCREW(6X16)

€ 3.00

23

6119627C30
ref: 23

GUIDE,RR BRAKE

€ 5.50

24

0214205103
ref: 24
02142-0510B

SCREW

€ 2.50

25

0920008048
ref: 25

PIN(8X20)

€ 3.00

26

0916008119
ref: 26
09160-08090

WASHER (8.5X14X1.6)

€ 2.50

27

0411120158
ref: 27
04111-2015A

PIN

€ 1.50

28

6974929F00
ref: 28

CUSHION,RR RESERVOIR TANK

€ 3.50
