REFLEX REFLECTOR (E28)

DR-Z400E 2006 (K6) USA (E03) DRZ400E DR Z400E

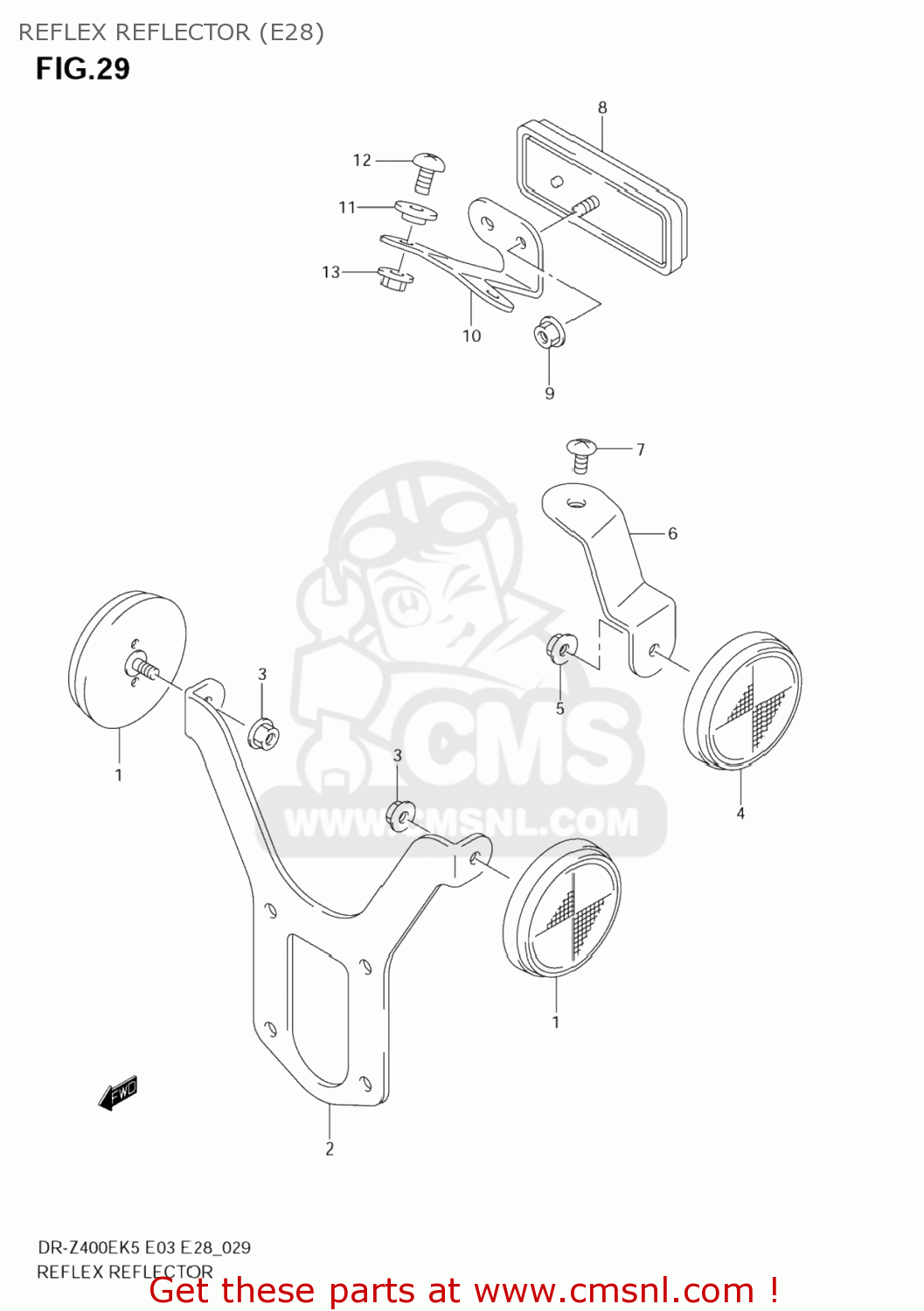

Reflex reflector (e28) diagram DR-Z400E 2006 (K6) USA (E03) DRZ400E DR Z400E

prices are in EUR

ref

part #

description

quantity

3595014A00
ref: 1

REFLECTOR,REFLEX FR

€ 15.00

3595629F00
ref: 2

BRACKET,FR SIDE RR

€ 9.50

0831610053
ref: 3
08316-1005A

NUT

€ 2.50

3597014A20
ref: 4

REFLECTOR ASSY,RR SIDE

€ 11.00

0831610053
ref: 5
08316-1005A

NUT

€ 2.50

6-1

3597529F00
ref: 6-1

BRACKET,RR SIDE RR,R

€ 0.00

6-2

3597629F00
ref: 6-2

BRACKET,RR SIDE RR,L

€ 0.00

0214206123
ref: 7
02142-0612A

SCREW 6X12

€ 2.00

3597007F00
ref: 8
35970-07F01

REFLECTOR ASSEMBLY,REAR

€ 20.50

0831610053
ref: 9
08316-1005A

NUT

€ 2.50

3596629F00
ref: 10

BRACKET,RR RR

€ 0.00

0916005037
ref: 11

WASHER(5.5X16X1.2)

€ 1.50

0214205123
ref: 12
02142-0512A

SCREW 5X12

€ 1.50

0831610053
ref: 13
08316-1005A

NUT

€ 2.50
