RADIATOR

DR-Z400E 2006 (K6) USA (E03) DRZ400E DR Z400E

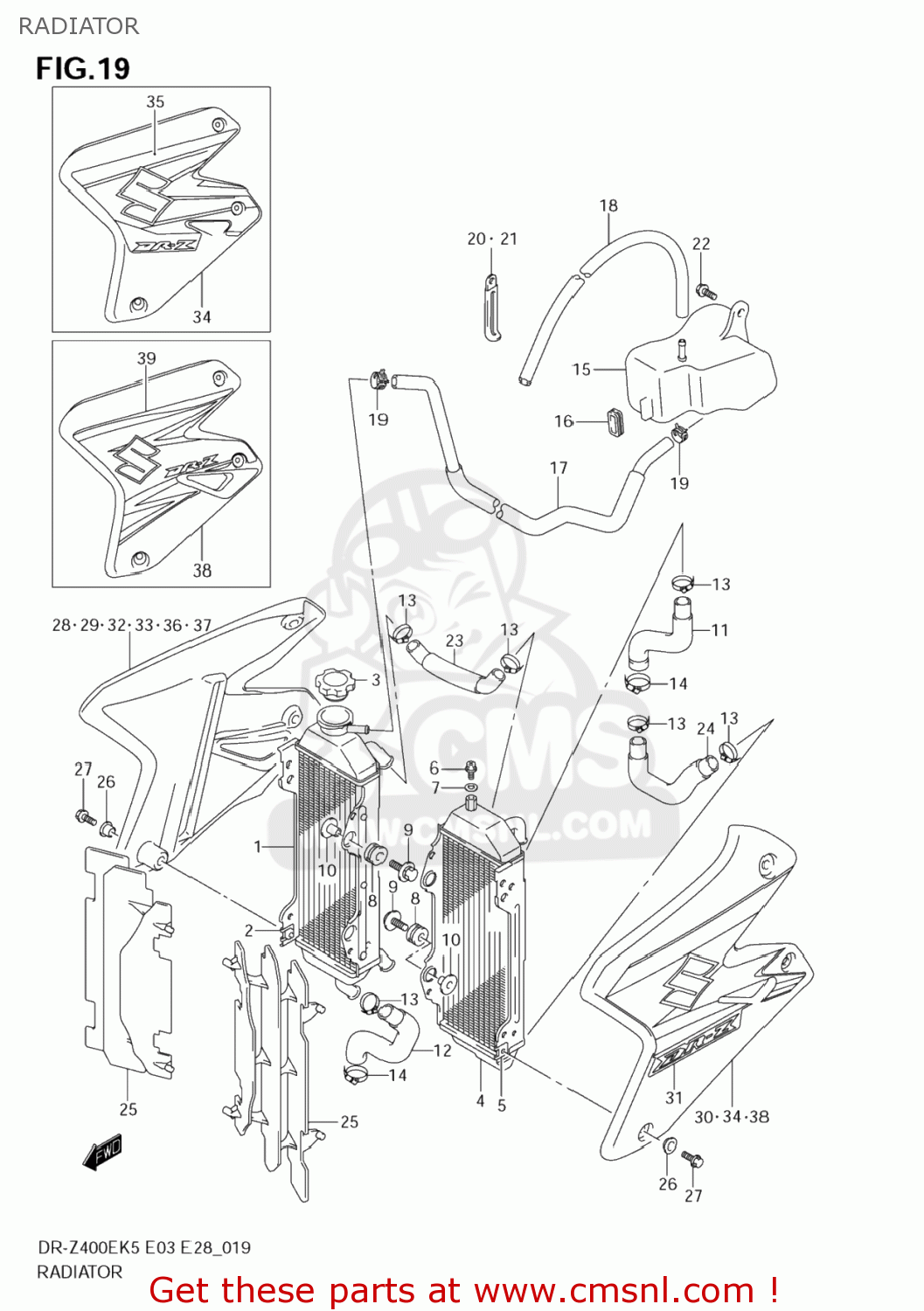

Radiator diagram DR-Z400E 2006 (K6) USA (E03) DRZ400E DR Z400E

RADIATOR DR-Z400E 2006 (K6) USA (E03) DRZ400E DR Z400E
RADIATOR DR-Z400E 2006 (K6) USA (E03) DRZ400E DR Z400E
RADIATOR DR-Z400E 2006 (K6) USA (E03) DRZ400E DR Z400E
prices are in EUR
ref
part #
description
quantity
1
1771029F20
ref: 1
RADIATOR,WATER,R
1771029F20
€ 371.00
2
0914806015
ref: 2
NUT
0914806015
€ 3.50
3
1773012C30
ref: 3
CAP,RADIATOR
1773012C30
€ 33.50
4
1772029F20
ref: 4
RADIATOR,WATER,L
1772029F20
€ 396.00
5
0914806015
ref: 5
NUT
0914806015
€ 3.50
6
1756850F00
ref: 6
UNION BOLT,AIR VENT
1756850F00
€ 3.50
7
0916806026
ref: 7
GASKET(6.4X11.5X0.8) (NAS)
0916806026
€ 3.50
8
1778719A00
ref: 8
CUSHION,RADIATOR LWR
1778719A00
€ 3.50
9
0911606147
ref: 9
BOLT(6X25)
0911606147
€ 4.00
10
0918006243
ref: 10
SPACER(6.5X10.5X14.1)
0918006243
€ 4.50
11
1785129F21
ref: 11
HOSE,RADIATOR INLET
€ 20.50
12
1785229F20
ref: 12
HOSE,RADIATOR OUTLET
1785229F20
€ 22.50
13
0940228511
ref: 13
CLAMP
0940228511
€ 8.50
14
0940232511
ref: 14
CLAMP
0940232511
€ 11.50
15
1791129F11
ref: 15
TANK,RESERVOIR
1791129F11
€ 39.50
16
1791329F00
ref: 16
CUSHION,RESERVOIR TANK
1791329F00
€ 3.00
17
1798129F01
ref: 17
HOSE,RESERVOIR TANK INLET
1798129F01
€ 13.50
18
093525090100B
ref: 18
HOSE(5X9X2000)
093525090100B
€ 19.50
19
0940108411
ref: 19
CLIP
0940108411
€ 3.00
20
0940408205
ref: 20
CLAMP(L:45 T:0.6)
0940408205
€ 3.00
21
0940406429
ref: 21
CLAMP(L:45)
€ 2.50
22
0155006123
ref: 22
01550-0612A
BOLT
0155006123
€ 2.50
23
1785329F10
ref: 23
HOSE,RADIATOR JOINT
€ 17.00
24
1785429F20
ref: 24
HOSE,RADIATOR JOINT LWR
€ 16.50
25
1783137E11
ref: 25
LOUVER,RADIATOR
1783137E11
€ 11.50
26-1
0916906060
ref: 26-1
WASHER
0916906060
€ 2.00
26-2
0916906053
ref: 26-2
WASHER
0916906053
€ 2.00
27-1
0154706123
ref: 27-1
01547-0612B
BOLT
0154706123
€ 2.00
27-2
0910306273
ref: 27-2
BOLT(6X12)
0910306273
€ 2.00
28
1776029F70YU1
ref: 28
COVER,RADIATOR,R(YELLOW)
1776029F70YU1
€ 141.50
29
6866529F70YHB
ref: 29
TAPE,RADIATOR COVER,R
€ 104.00
30
1777029F70YU1
ref: 30
COVER,RADIATOR,L(YELLOW)
€ 119.50
31
6867529F70YHB
ref: 31
TAPE,RADIATOR COVER,L
6867529F70YHB
€ 141.00
32
1776029F90YU1
ref: 32
COVER,RADIATOR,R(YELLOW)
1776029F90YU1
€ 125.00
33
6866529F90CET
ref: 33
TAPE,RADIATOR COVER,R
6866529F90CET
€ 106.50
34
1777029F90YU1
ref: 34
COVER,RADIATOR,L(YELLOW)
1777029F90YU1
€ 125.50
35
6867529F90CET
ref: 35
TAPE,RADIATOR COVER,L
6867529F90CET
€ 180.00
36
1776029FA0YU1
ref: 36
COVER,RADIATOR,R(YELLOW)
€ 127.00
37
6866529FA0DRA
ref: 37
TAPE,RADIATOR COVER,R
€ 77.50
38
1777029FA0YU1
ref: 38
COVER,RADIATOR,L(YELLOW)
€ 127.00
39
6867529FA0DRA
ref: 39
TAPE,RADIATOR COVER,L
€ 77.50
