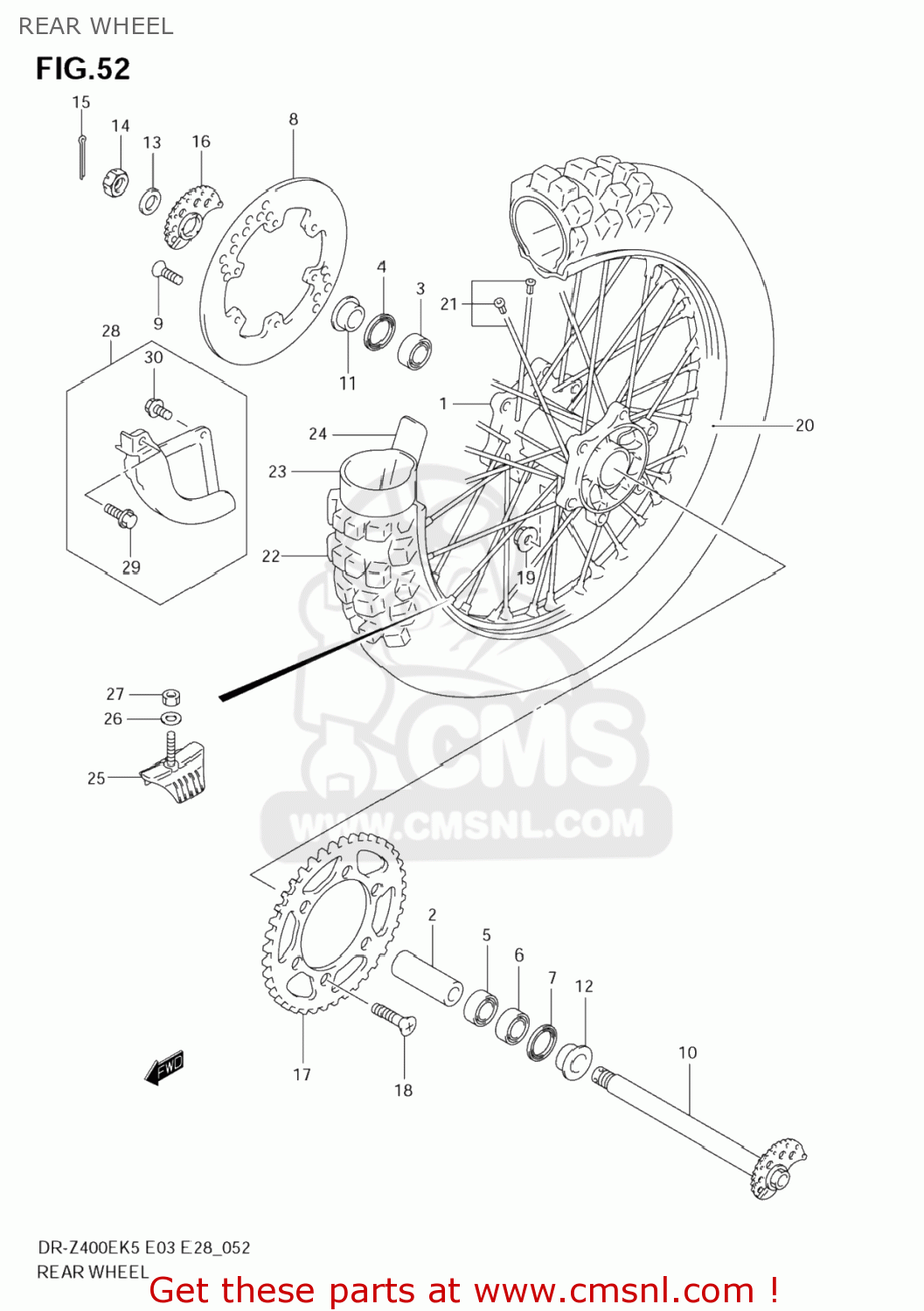

REAR WHEEL

ref

part #

description

quantity

1

6411129F00
ref: 1

HUB,RR WHEEL

€ 183.50

2

6473129F00
ref: 2

SPACER,RR HUB BEARING

€ 20.50

3

0813360047
ref: 3

BEARING

€ 21.00

4

6484128E00
ref: 4

SEAL(29X42X6)

€ 8.50

5

0813360047
ref: 5

BEARING

€ 21.00

6

0812362047
ref: 6

BEARING

€ 17.00

7

0928329006
ref: 7

SEAL,OIL(29X47X6)

€ 9.50

8

6921143D00
ref: 8

DISC,RR BRAKE

€ 160.00

9

0912006011
ref: 9
09120-06014

SCREW

€ 2.50

10

6471029F10
ref: 10

AXLE,RR

€ 0.00

11

6475128E20
ref: 11

SPACER,RR AXLE

€ 13.00

12

6475128E20
ref: 12

SPACER,RR AXLE

€ 13.00

13

0916019022
ref: 13

WASHER(19X32X3.2)

€ 5.00

14

0831440183
ref: 14
08314-4018A

NUT

€ 4.50

15

0411140308
ref: 15
04111-4030A

PIN,COTTER

€ 1.50

16

6141029F00
ref: 16

ADJUSTER,CHAIN,R

€ 13.50

17

6451129F00
ref: 17

SPROCKET,RR(NT:47-520)

€ 115.00

18

0912008010
ref: 18

BOLT(8X30.5)

€ 2.50

19

0831931088
ref: 19
08319-3108A

NUT

€ 2.50

20

6531129F10
ref: 20

RIM,RR WHEEL(18X2.15 AL)

€ 435.50

21

6532029F10
ref: 21

SPOKE SET,RR WHEEL

€ 84.50

22

6511029F00
ref: 22

TIRE,RR(110/100 18 64M)

€ 187.50

22

6511029F00
ref: 22

TIRE,RR(110/100 18 64M)

€ 187.50

23

6520029F00
ref: 23

TUBE ASSY,WHEEL INNER

€ 43.00

24

6526144AF0
ref: 24

PROTECTOR,WHL INR TUBE

€ 4.50

25

6527029F00
ref: 25

STOPPER,BEAD(2.15)

€ 26.00

26

0832201083
ref: 26
08322-0108A

WASHER

€ 1.50

27

0831000083
ref: 27
08310-0008A

NUT

€ 1.50

28

6920028C00
ref: 28

COVER SET,RR BRAKE DISC

€ 29.50

29

0155006203
ref: 29
01550-0620A

BOLT

€ 2.50

30

0155006123
ref: 30
01550-0612A

BOLT

€ 2.50

all assemblies
