REAR BRAKE

DR-Z400E 2006 (K6) USA (E03) DRZ400E DR Z400E

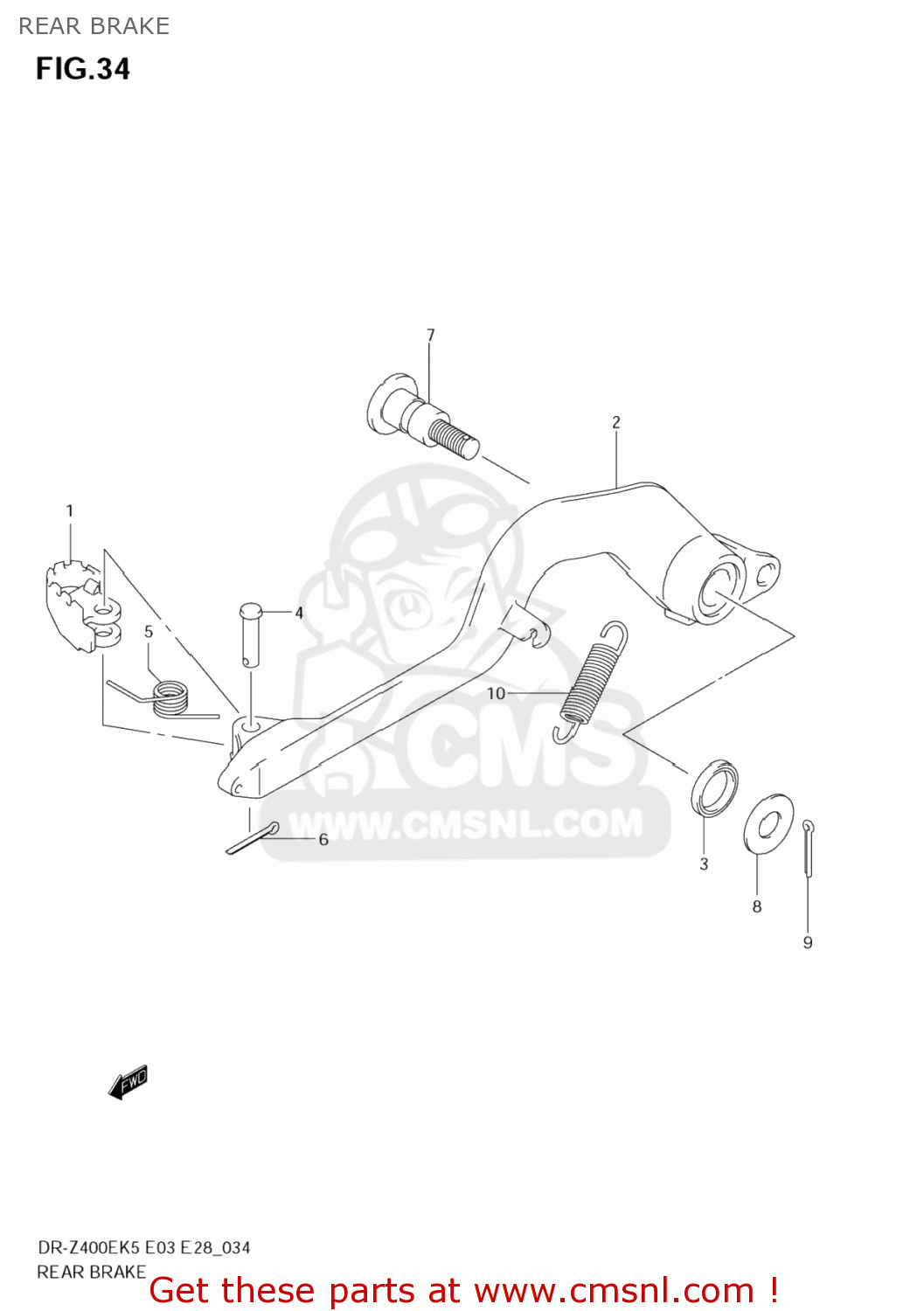

Rear brake diagram DR-Z400E 2006 (K6) USA (E03) DRZ400E DR Z400E

prices are in EUR

ref

part #

description

quantity

4311043D00
ref: 1

PEDAL,BRAKE

€ 6.00

4312029F00
ref: 2

ARM,BRAKE PEDAL

€ 226.00

0928415006
ref: 3

SEAL,OIL(15X21X3)

€ 3.50

0920006062
ref: 4

PIN(6X23.5)

€ 2.50

0944411006
ref: 5

SPRING

€ 3.50

0411120158
ref: 6
04111-2015A

PIN

€ 1.50

4314227C00
ref: 7

SHAFT,BRAKE PEDAL

€ 15.00

0821110261
ref: 8

WASHER

€ 2.50

0411120208
ref: 9
04111-2020A

PIN 20X20

€ 1.50

0944311033
ref: 10

SPRING

€ 4.50

all assemblies
