RM-Z250 2008 (K8) USA (E03) RMZ250 RM Z250

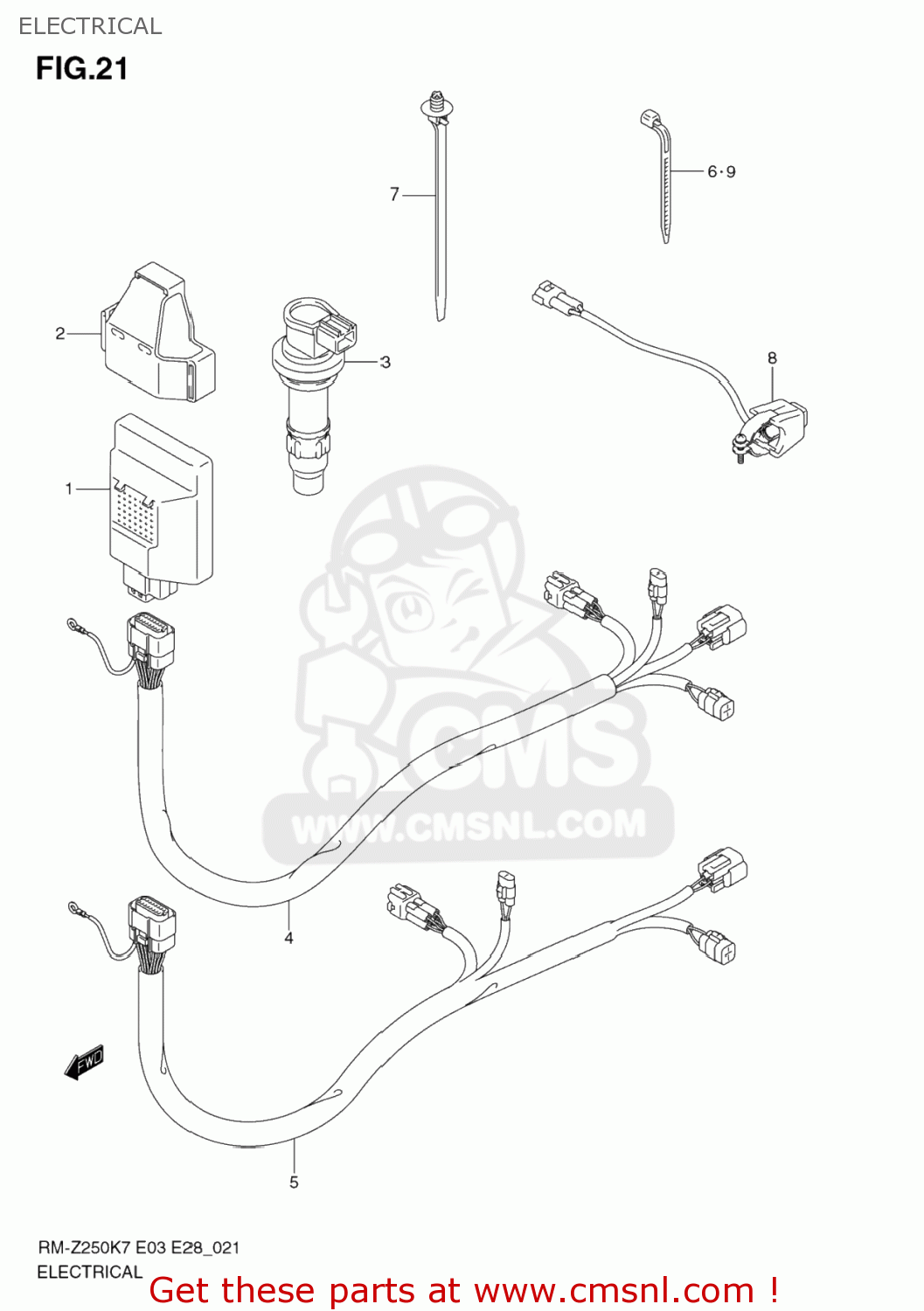

Electrical diagram RM-Z250 2008 (K8) USA (E03) RMZ250 RM Z250

prices are in EUR

ref

part #

description

quantity

1-1

3290010H00
ref: 1-1

CDI UNIT

€ 510.00

1-2

3290010H11
ref: 1-2

CDI UNIT

€ 545.50

3298037F00
ref: 2

CUSHION,CDI UNIT

€ 8.50

3341035G00
ref: 3

COIL ASSY,IGNITION

€ 165.50

3661010H00
ref: 4

HARNESS,WIRING

€ 129.50

3661010H20
ref: 5

HARNESS,WIRING

€ 134.00

6-1

0940711401
ref: 6-1

CLAMP(L:95)

€ 2.50

6-2

0940718402
ref: 6-2

CLAMP(L:165)

€ 2.50

0940717403
ref: 7

CLAMP(L:154)

€ 5.50

3782036E00
ref: 8

SWITCH ASSY,ENGINE STOP

€ 21.00

9-1

0940711401
ref: 9-1

CLAMP(L:95)

€ 2.50

9-2

0940714403
ref: 9-2

CLAMP(L:125)

€ 2.50
