REAR SWINGING ARM

RM-Z250 2008 (K8) USA (E03) RMZ250 RM Z250

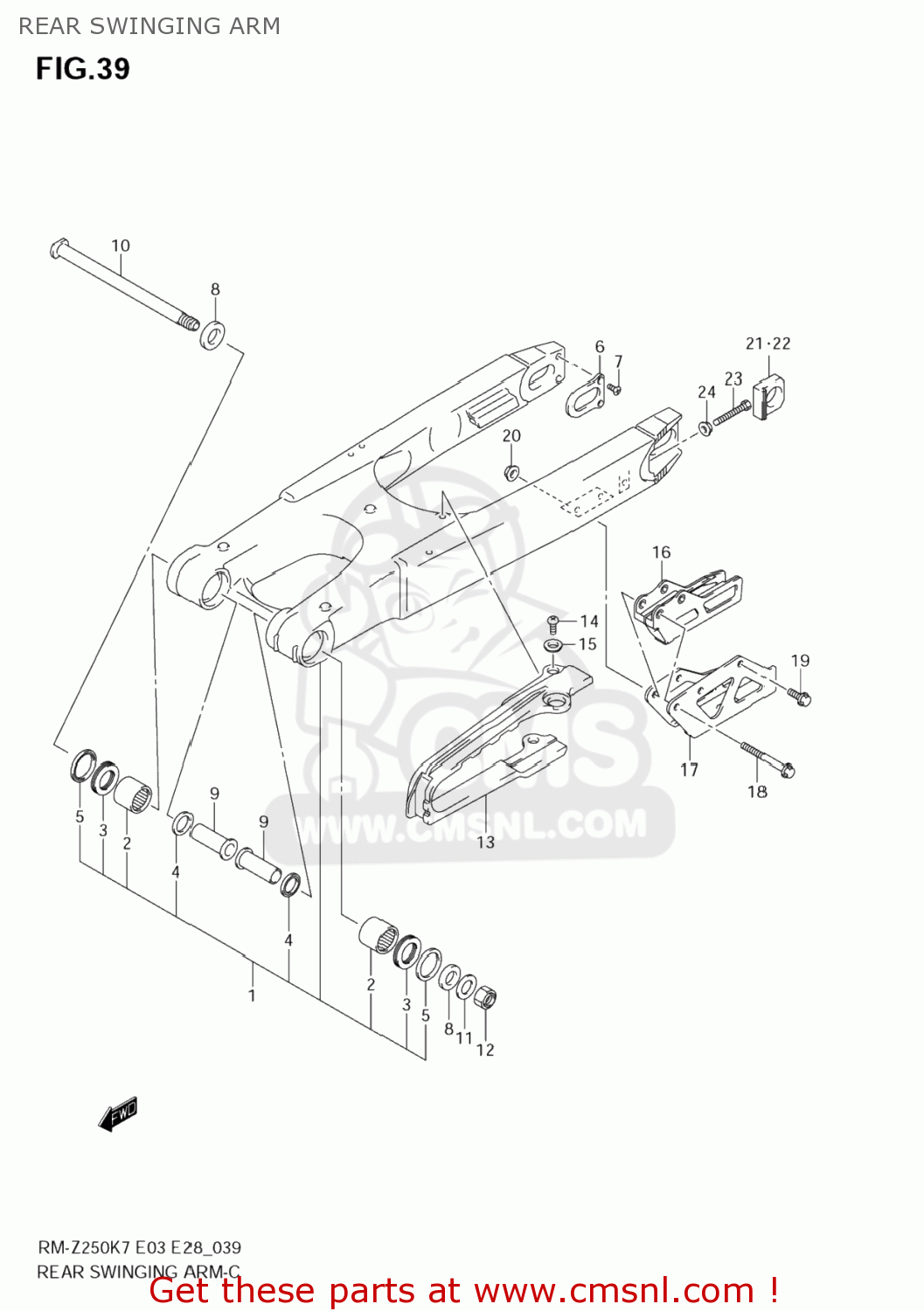

Rear swinging arm diagram RM-Z250 2008 (K8) USA (E03) RMZ250 RM Z250

REAR SWINGING ARM RM-Z250 2008 (K8) USA (E03) RMZ250 RM Z250
REAR SWINGING ARM RM-Z250 2008 (K8) USA (E03) RMZ250 RM Z250
REAR SWINGING ARM RM-Z250 2008 (K8) USA (E03) RMZ250 RM Z250
prices are in EUR
ref
part #
description
quantity
1
6100035G00
ref: 1
SWINGINGARM ASSY,RR
€ 993.00
2
0926322017
ref: 2
BEARING(22X29X30)
0926322017
€ 18.50
3
0926322064
ref: 3
BEARING(22X35X2)
0926322064
€ 19.00
4
0928522001
ref: 4
SEAL,OIL(22X29X4)
0928522001
€ 5.00
5
6126236E00
ref: 5
SEAL,RR SWGARM PIVOT OUTER
6126236E00
€ 3.50
6
6112835G00
ref: 6
PLATE,SWING ARM RR
6112835G00
€ 10.50
7
021220410A
ref: 7
SCREW
021220410A
€ 2.50
8
6125136E01
ref: 8
SPACER,RR SWGARM PIVOT OUTER
6125136E01
€ 6.00
9
6125237F01
ref: 9
SPACER,SWGARM PIVOT INNER
6125237F01
€ 17.00
10
6121135G00
ref: 10
SHAFT,RR SWINGINGARM PIVOT
6121135G00
€ 33.00
11
083220116B
ref: 11
WASHER
083220116B
€ 2.00
12
0915916007
ref: 12
NUT
0915916007
€ 10.50
13
6127337F10
ref: 13
BUFFER,CHAIN TOUCH DEFENSE
6127337F10
€ 44.00
14
021120508B
ref: 14
SCREW
021120508B
€ 2.00
15
0916905022
ref: 15
WASHER
0916905022
€ 3.50
16
6134135G10
ref: 16
GUIDE,CHAIN
6134135G10
€ 57.50
17
6134237F00
ref: 17
PLATE,CHAIN GUIDE
6134237F00
€ 31.00
18
0910306242
ref: 18
BOLT(6X45)
0910306242
€ 4.00
19
0910306233
ref: 19
BOLT(6X12)
0910306233
€ 2.00
20
083161006B
ref: 20
NUT
083161006B
€ 2.50
21-1
6144535G00
ref: 21-1
WASHER,CHAIN ADJUSTER,R
€ 26.50
21-2
6144528H00
ref: 21-2
WASHER,CHAIN ADJUSTER,R
6144528H00
€ 30.50
22-1
6144635G00
ref: 22-1
61446-35G01
WASHER,CHAIN A
€ 17.00
22-2
6144628H00
ref: 22-2
WASHER,CHAIN ADJUSTER,L
€ 36.50
23
0910008287
ref: 23
BOLT(8X50)
0910008287
€ 3.00
24
0915908034
ref: 24
NUT
0915908034
€ 2.00
