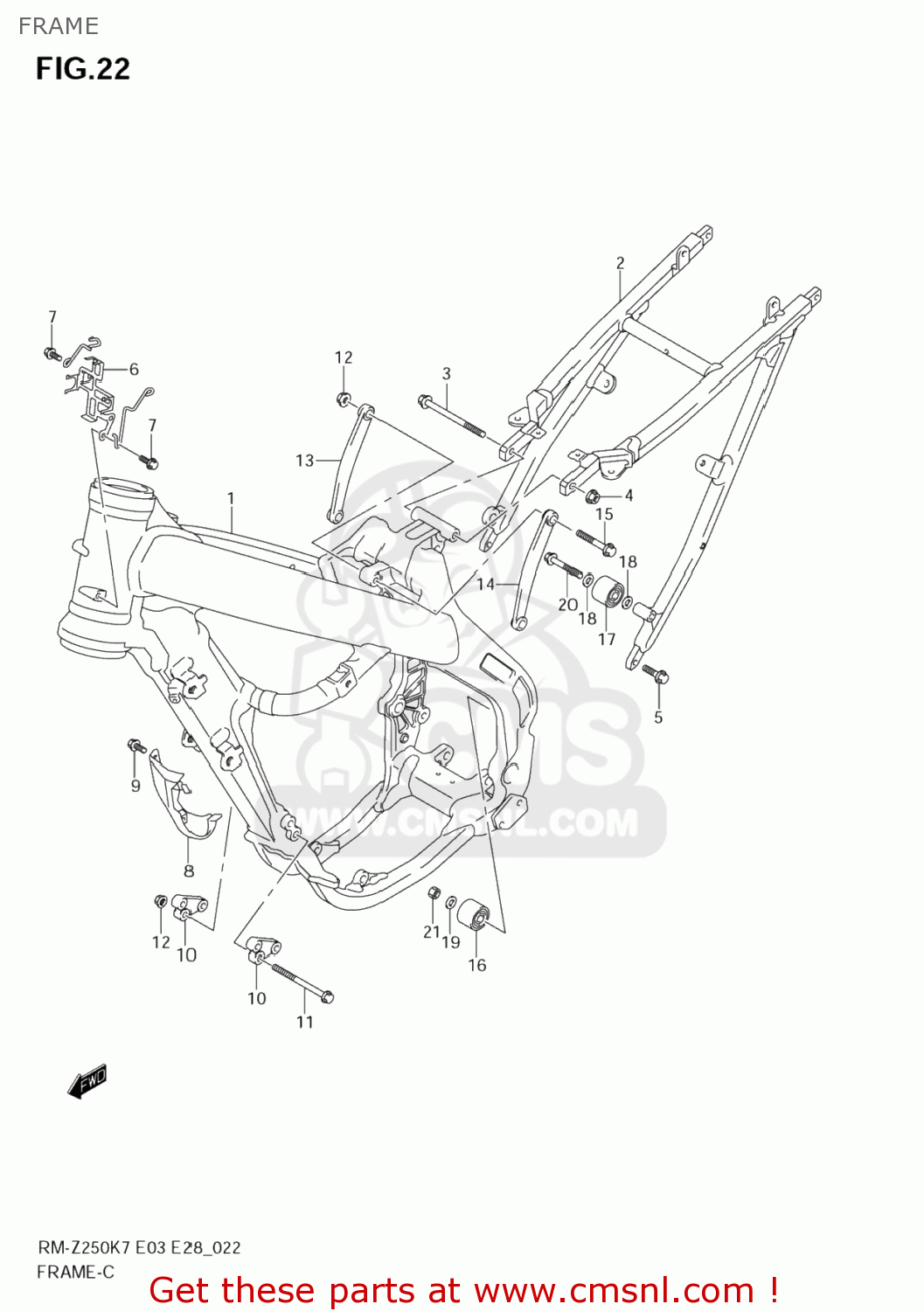

FRAME

ref

part #

description

quantity

1-1

4110010H00
ref: 1-1

FRAME

€ 1,575.00

1-2

4110010H10
ref: 1-2

FRAME

€ 1,575.00

2

4120010H00
ref: 2

RAIL,SEAT

€ 454.50

3

0910308122
ref: 3

BOLT(8X110)

€ 4.00

4

083193108A
ref: 4

NUT

€ 2.50

5

0910308426
ref: 5

BOLT(8X20)

€ 4.50

6

4134010H00
ref: 6

BRACKET,CDI

€ 21.00

7

0910306256
ref: 7

BOLT(6X10)

€ 2.00

8

4252010H00
ref: 8
42520-10H02

PROTECTOR,FRON

€ 21.50

9

0911606200
ref: 9

BOLT(6X16)

€ 3.00

10

4199110H01
ref: 10

BRACKET,ENGINE MOUNTING FR

€ 37.00

11

0910308433
ref: 11

BOLT(8X95)

€ 4.00

12

0915908067
ref: 12

NUT

€ 5.50

13-1

4199410H00
ref: 13-1

BRACKET,ENGINE MOUNTING UPR,R

€ 58.00

13-2

4199410H10
ref: 13-2

BRACKET,ENGINE MOUNTING UPR,R

€ 66.00

14-1

4199510H00
ref: 14-1

BRACKET,ENGINE MOUNTING UPR,L

€ 66.00

14-2

4199510H10
ref: 14-2

BRACKET,ENGINE MOUNTING UPR,L

€ 66.00

15

0910308339
ref: 15

BOLT(8X55)

€ 3.50

16

4391035G00
ref: 16

ROLLER,CHAIN

€ 38.00

17

4391037F00
ref: 17

ROLLER,CHAIN

€ 31.50

18

0918108111
ref: 18

SHIM(8X12X1)

€ 2.00

19

0918108167
ref: 19

SHIM(8X16X1)

€ 2.00

20

0910308207
ref: 20

BOLT(8X45)

€ 2.00

21

083192108A
ref: 21

NUT

€ 1.50
