WATER PUMP

RM-Z250 2008 (K8) USA (E03) RMZ250 RM Z250

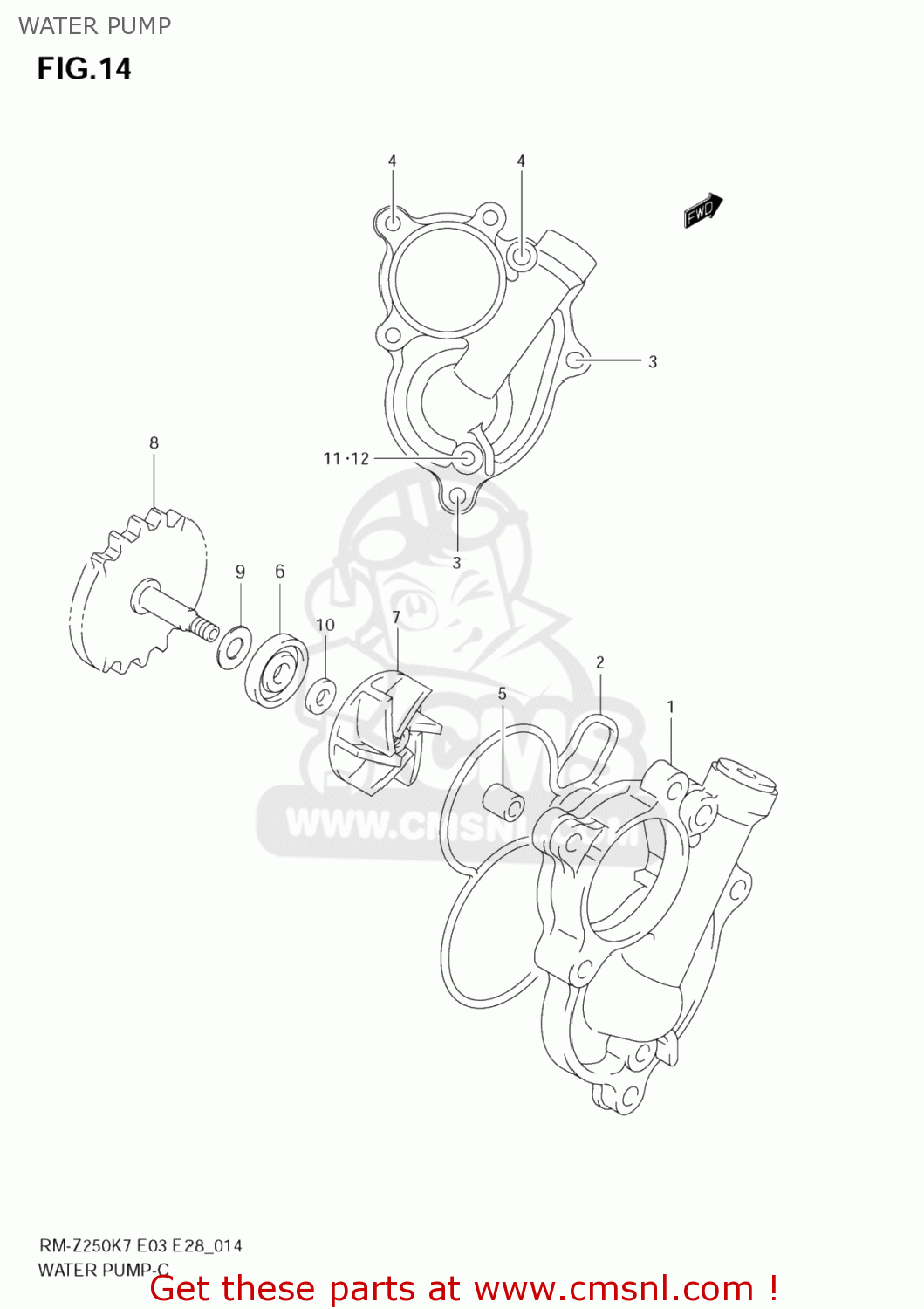

Water pump diagram RM-Z250 2008 (K8) USA (E03) RMZ250 RM Z250

prices are in EUR

ref

part #

description

quantity

1741010H00
ref: 1

CASE,WATER PUMP

€ 71.50

1743110H00
ref: 2

O RING,WATER PUMP CASE

€ 7.50

015470660A
ref: 3

BOLT

€ 2.50

015470665A
ref: 4

BOLT

€ 2.50

0421109109
ref: 5

PIN

€ 2.00

1746137F00
ref: 6

SEAL,WATER PUMP OIL

€ 5.00

1749110H00
ref: 7

IMPELLER,WATER PUMP

€ 13.00

8-1

1751010H00
ref: 8-1
17510-10H02

SHAFT COMP,WAT

€ 154.00

8-2

1751010H02
ref: 8-2

SHAFT,WATER PUMP

€ 154.00

0918108186
ref: 9

SHIM(8X18X0.5)

€ 1.50

0918106003
ref: 10

SHIM(6X14X1)

€ 2.00

071200610B
ref: 11

BOLT

€ 2.00

0916806004
ref: 12

GASKET(6.2X11X1).2 (NAS)

€ 1.50
