OIL PUMP/OIL FILTER

RM-Z250 2008 (K8) USA (E03) RMZ250 RM Z250

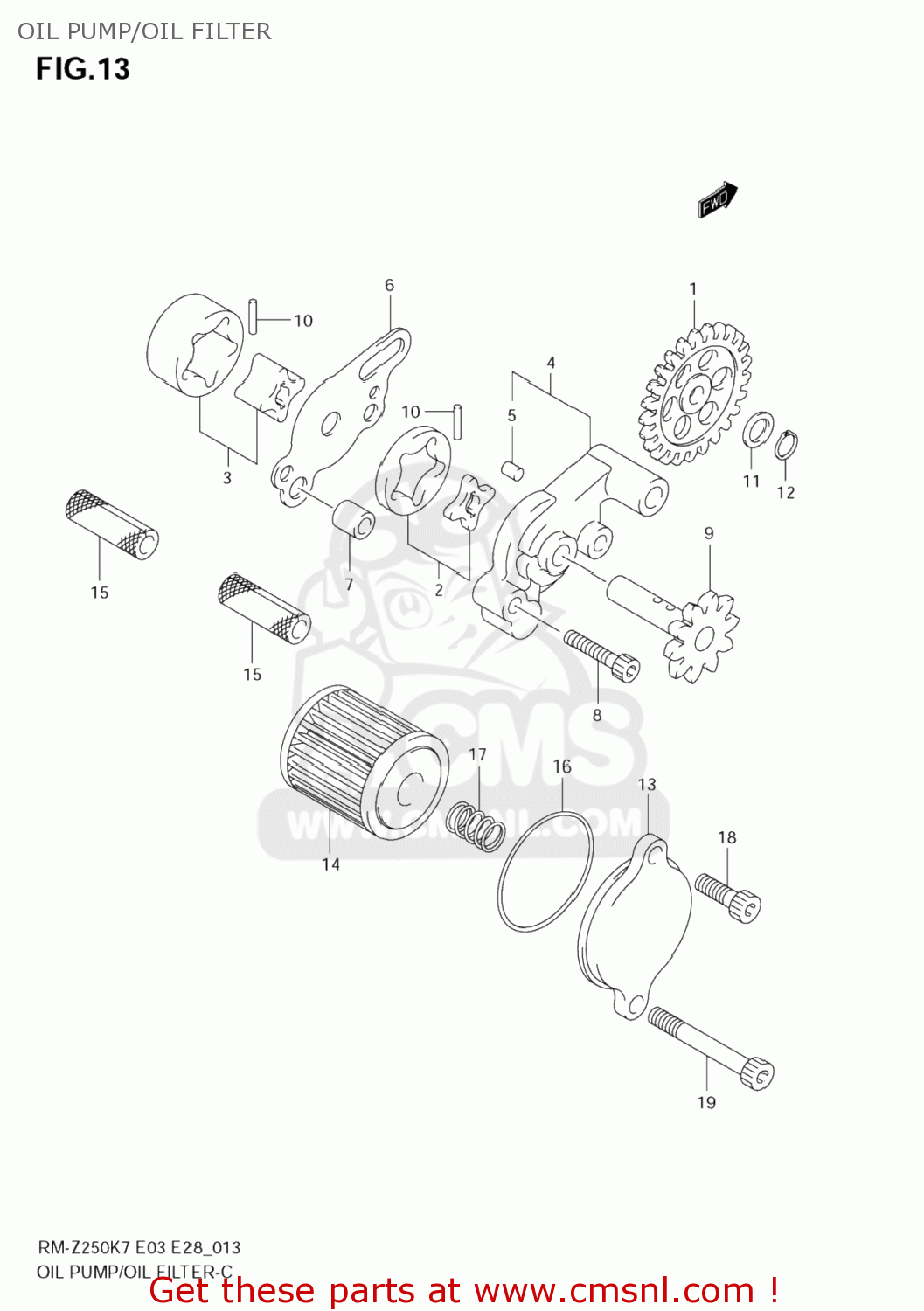

Oil pump/oil filter diagram RM-Z250 2008 (K8) USA (E03) RMZ250 RM Z250

prices are in EUR

ref

part #

description

quantity

1632110H00
ref: 1

GEAR,OIL PUMP IDLE

€ 52.00

1641010H00
ref: 2

ROTOR SET,OIL PUMP NO.1

€ 33.00

1642035G00
ref: 3

ROTOR SET,OIL PUMP NO.2

€ 36.50

1643010H00
ref: 4

COVER,OIL PUMP

€ 32.50

0422104089
ref: 5

PIN

€ 1.50

1643210H00
ref: 6

PLATE,OIL PUMP

€ 14.00

0421109109
ref: 7

PIN

€ 2.00

071300520B
ref: 8

BOLT

€ 1.50

1644010H00
ref: 9

SHAFT,OIL PUMP DRIVEN GEAR

€ 47.00

0926102008
ref: 10

PIN(2.5X11.8)

€ 1.50

0918108186
ref: 11

SHIM(8X18X0.5)

€ 1.50

0833131086
ref: 12
08331-3108A

CIRCLIP

€ 2.00

1631535G10
ref: 13

CAP,ENG OIL FILTER OUTER

€ 14.50

1651035G00
ref: 14

FILTER ASSY,ENGINE OIL

€ 11.00

1652010H00
ref: 15

STRAINER,ENGINE OIL

€ 17.50

0928039001
ref: 16

O RING(D:2,ID:38.5)

€ 4.50

0944010038
ref: 17

SPRING

€ 3.50

0910306234
ref: 18

BOLT(6X16)

€ 2.50

0910306252
ref: 19

BOLT(6X35)

€ 3.00

OIL PUMP/OIL FILTER

all assemblies
