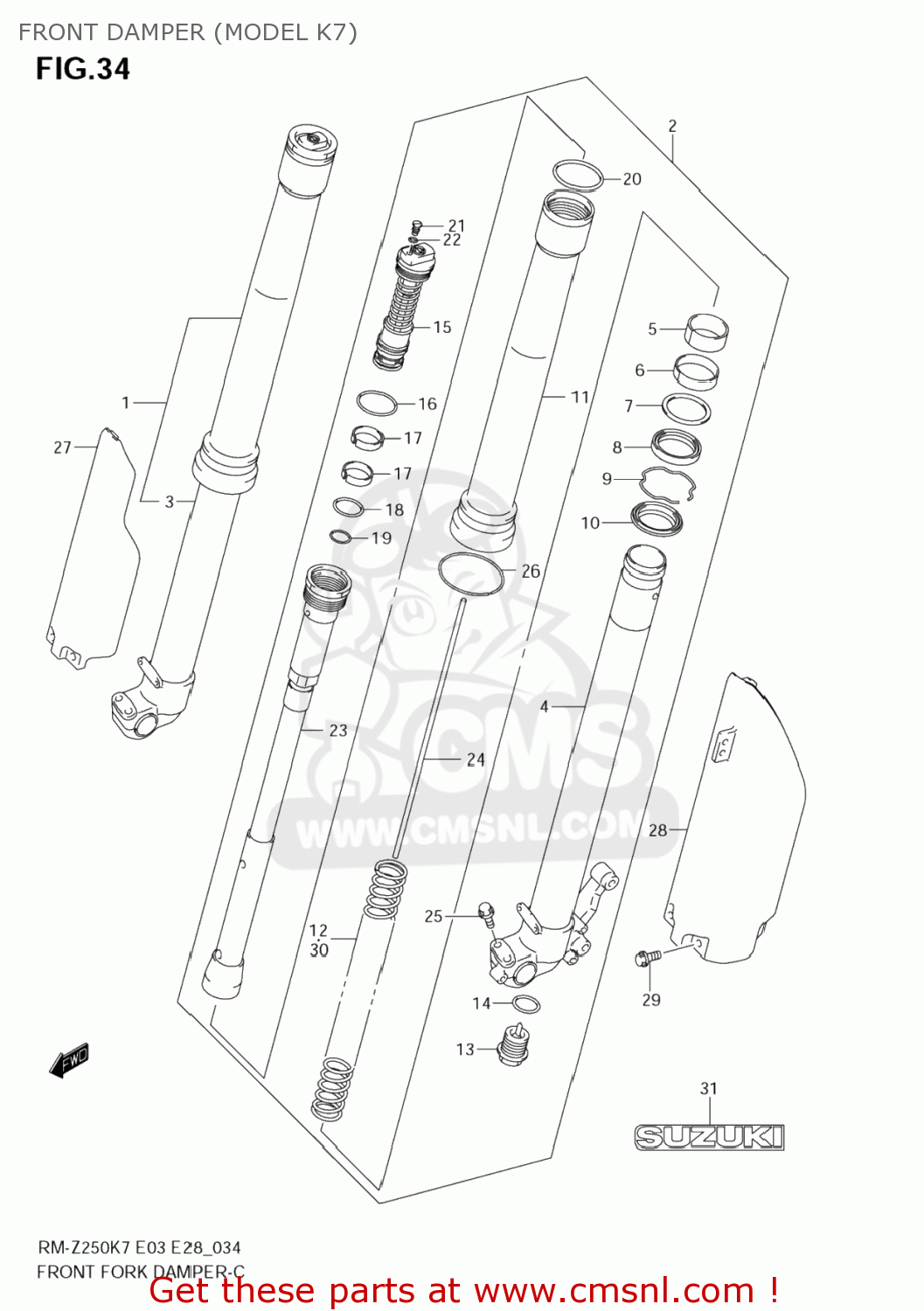

FRONT DAMPER (MODEL K7)

ref

part #

description

quantity

1

5110310H00
ref: 1

DAMPER ASSY,FR FORK,R

€ 1,274.00

2

5110410H00
ref: 2

DAMPER ASSY,FR FORK,L

€ 1,274.00

3

5111035G30
ref: 3

TUBE,INNER,R

€ 364.00

4

5112035G30
ref: 4

TUBE,INNER,L

€ 364.00

5

5112136F00
ref: 5

BUSH,SLIDE

€ 11.50

6

5116736F00
ref: 6

BUSH,GUIDE

€ 13.00

7

5115836F00
ref: 7

SPACER,SEAL

€ 5.00

8

5115337F80
ref: 8

SEAL,OIL

€ 13.50

9

5115627C40
ref: 9

RING,OIL SEAL STOPPER

€ 3.50

10

5117337F80
ref: 10

SEAL,DUST

€ 16.50

11

5113010H00
ref: 11

TUBE,OUTER

€ 515.50

12

5117137FC0
ref: 12

SPRING,FR(K=0.44)

€ 115.50

13

5117037FC0
ref: 13

BOLT,CTR

€ 139.50

14

5117736E20
ref: 14

O RING

€ 2.50

15

5135110H00
ref: 15

BOLT

€ 292.50

16

5111737F80
ref: 16

O RING

€ 3.50

17

5112328E30
ref: 17

BUSH,FORK BOLT SLIDE

€ 9.50

18

5117436E40
ref: 18

O RING

€ 2.50

19

5117537F80
ref: 19

O RING

€ 3.50

20

5111837F80
ref: 20

O RING

€ 4.00

21

5135736F20
ref: 21

BOLT,PLUG

€ 8.00

22

5135828E30
ref: 22

O RING,PLUG

€ 2.50

23

5119010H00
ref: 23

DAMPER

€ 803.00

24

5119136F40
ref: 24

ROD,PUSH

€ 15.00

25

5132837F80
ref: 25

BOLT

€ 5.00

26

5121137FC0
ref: 26

STOPPER,RING

€ 5.00

27

5150137F70
ref: 27

PROTECTOR,FR FORK,R

€ 92.50

28

5151137F70
ref: 28

PROTECTOR,FR FORK,L

€ 92.50

29

0910306256
ref: 29

BOLT(6X10)

€ 2.00

30-1

5117137FD0
ref: 30-1

SPRING,FR(SOFT,K=0.42)

€ 115.50

30-2

5117137FE0
ref: 30-2

SPRING,FR(HARD,K=0.46)

€ 80.00

31

6866129F00DPZ
ref: 31

EMBLEM,SUZUKI

€ 25.00

all assemblies
