FRAME COVER

RM-Z250 2008 (K8) USA (E03) RMZ250 RM Z250

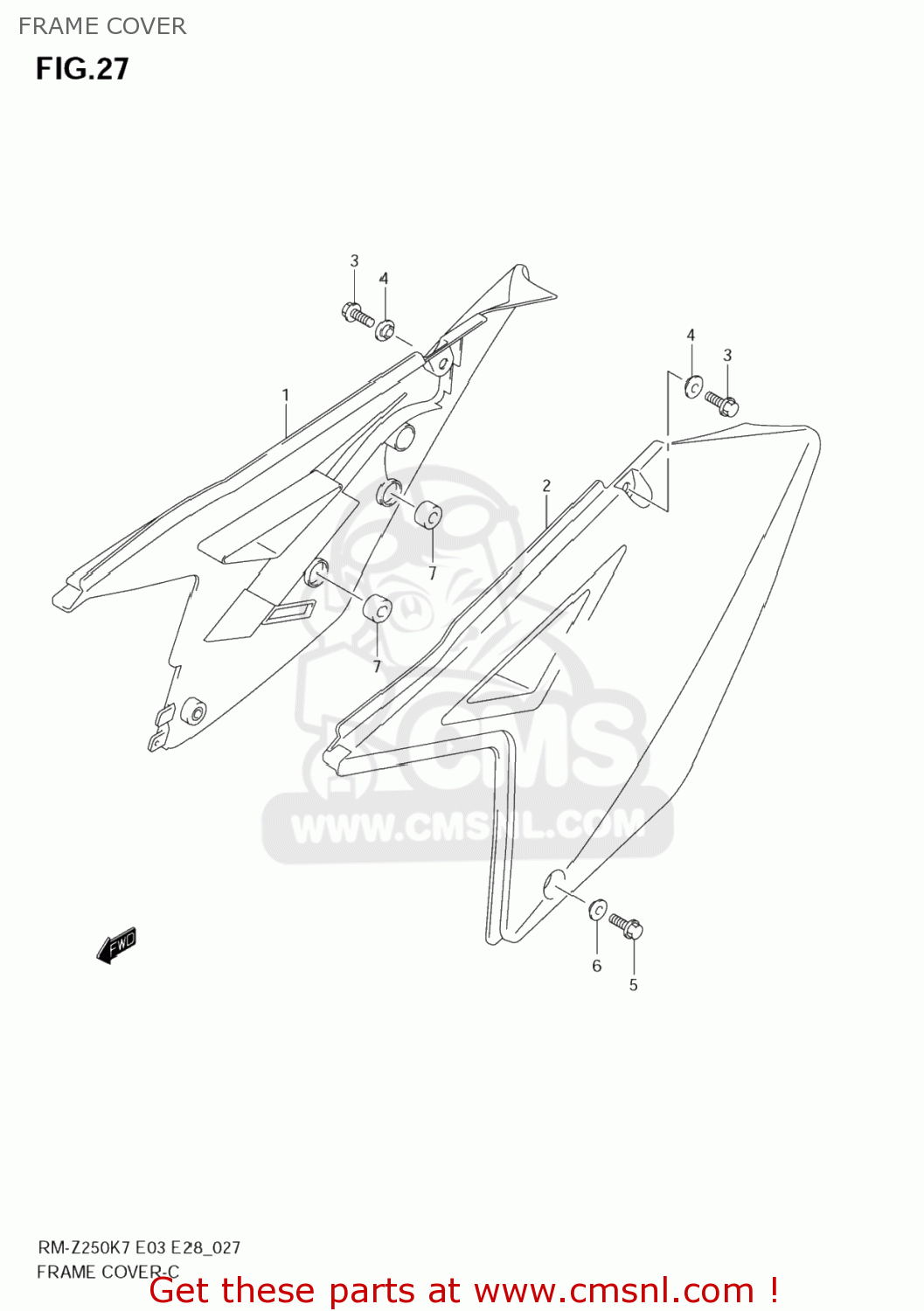

Frame cover diagram RM-Z250 2008 (K8) USA (E03) RMZ250 RM Z250

FRAME COVER RM-Z250 2008 (K8) USA (E03) RMZ250 RM Z250

FRAME COVER RM-Z250 2008 (K8) USA (E03) RMZ250 RM Z250

prices are in EUR

ref

part #

description

quantity

1

4711110H0030H
ref: 1

COVER,FRAME R(WHITE)

€ 41.00

2

4721110H0030H
ref: 2

COVER,FRAME,L(WHITE)

€ 130.50

3

0910306234
ref: 3

BOLT(6X16)

€ 2.50

4

6923237F01
ref: 4

WASHER

€ 7.50

5

0910306234
ref: 5

BOLT(6X16)

€ 2.50

6

4719110H01
ref: 6

WASHER

€ 6.00

7

4716137F00
ref: 7

CUSHION,FRAME COVER,R

€ 6.00
