FOOTREST

RM-Z250 2008 (K8) USA (E03) RMZ250 RM Z250

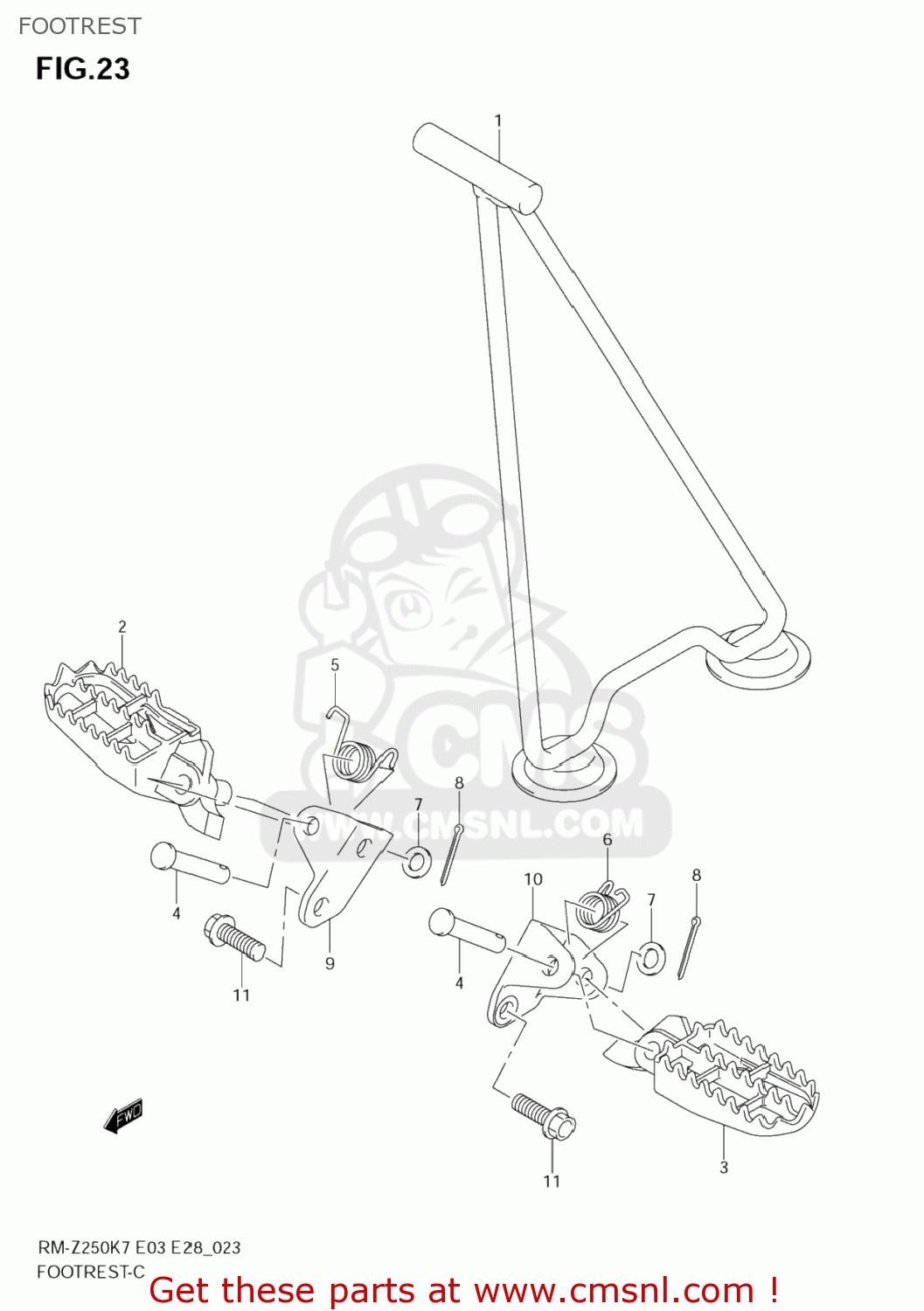

Footrest diagram RM-Z250 2008 (K8) USA (E03) RMZ250 RM Z250

prices are in EUR

ref

part #

description

quantity

4231035G00
ref: 1

STAND

€ 84.50

2-1

4355110H00
ref: 2-1

FOOTREST,R

€ 76.50

2-2

4355110H10
ref: 2-2

FOOTREST,R

€ 104.00

3-1

4356110H00
ref: 3-1

FOOTREST,L

€ 73.00

3-2

4356110H10
ref: 3-2

FOOTREST,L

€ 80.50

0920010022
ref: 4

PIN

€ 8.50

0944821009
ref: 5

SPRING

€ 6.50

0944821010
ref: 6

SPRING

€ 6.50

083220110B
ref: 7

WASHER

€ 2.50

041112520A
ref: 8

PIN

€ 2.00

4185535G00
ref: 9

BRACKET,FOOTREST,R

€ 70.50

4186535G00
ref: 10

BRACKET,FOOTREST,L

€ 70.50

0910310366
ref: 11

BOLT(10X30)

€ 3.00
