CLUTCH MASTER CYLINDER
DL1000 VSTROM 2009 (K9) USA (E03)

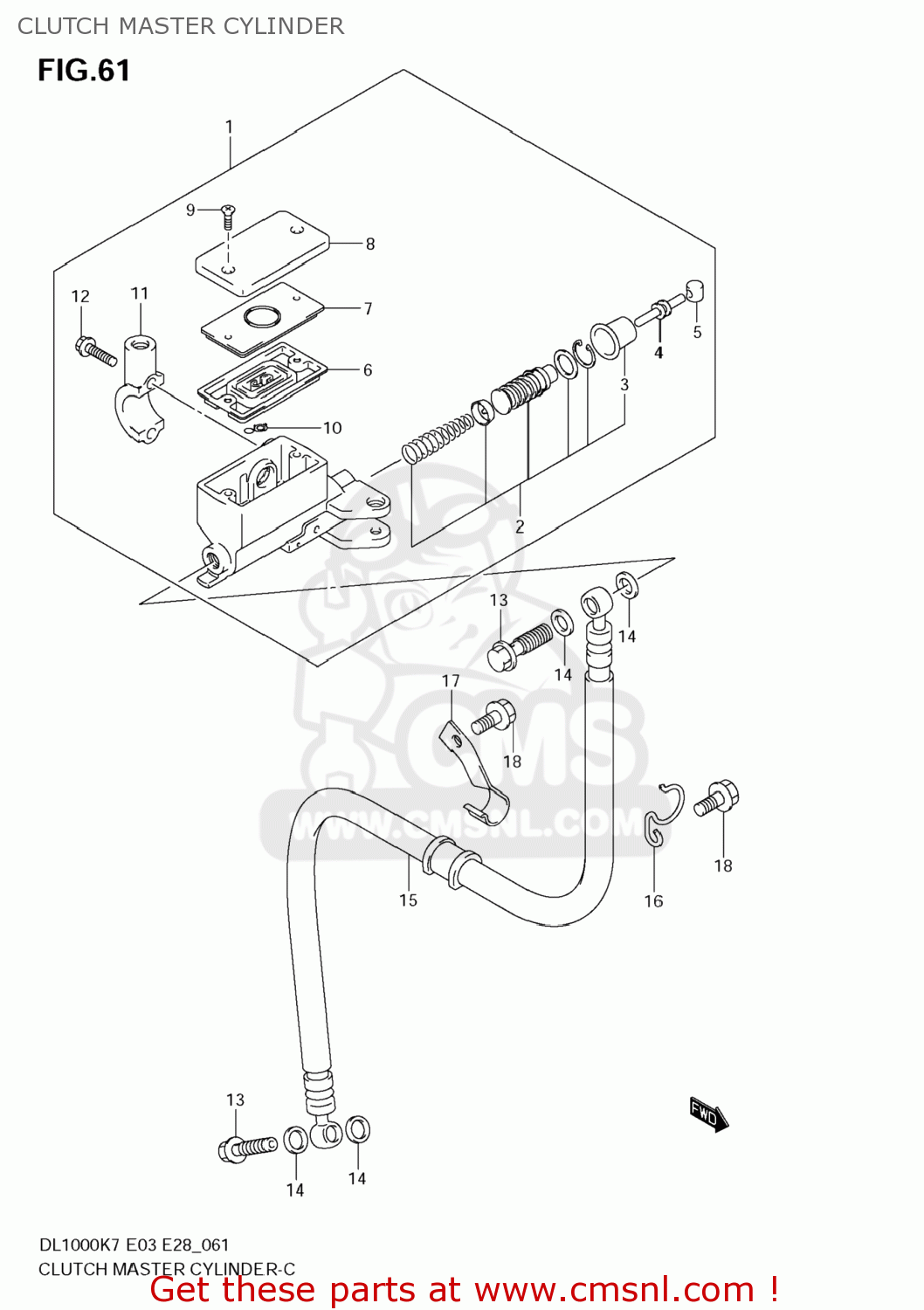

Clutch master cylinder diagram DL1000 VSTROM 2009 (K9) USA (E03)
CLUTCH MASTER CYLINDER DL1000 VSTROM 2009 (K9) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5980032F00
ref: 1
CYLINDER ASSY,
€ 292.50
2
5980008810
ref: 2
PISTON & CUP SET
€ 36.50
3
5966644300
ref: 3
BOOT
€ 6.00
4
5987138A00
ref: 4
PUSH ROD
€ 6.50
5
5989208A00
ref: 5
BUSH
€ 5.50
6
5966749460
ref: 6
5966749460
7
5966841C00
ref: 7
PLATE,DIAPHRAGM
€ 8.00
8
5966910G00
ref: 8
CAP
€ 19.00
9
6968949300
ref: 9
SCREW
€ 1.50
10
5966432F00
ref: 10
PROTECTOR
€ 7.50
11
5967132F00
ref: 11
HOLDER
€ 17.00
12
5967502FA0
ref: 12
BOLT(6X22)
€ 3.00
13
0936010062
ref: 13
BOLT UNION
€ 5.00
14
0916110009
ref: 14
WASHER(10X15X1.5)
€ 2.00
15
5991006G01
ref: 15
HOSE,CLUTCH
€ 118.50
16
5991524F00
ref: 16
CLAMP,CLUTCH HOSE NO.1
€ 6.00
17
5992106G00
ref: 17
CLAMP,CLUTCH HOSE NO.2
€ 11.50
18
015500612B
ref: 18
BOLT
€ 2.50
