SIDE COWLING (MODEL K7/K8)

DL1000 VSTROM 2009 (K9) USA (E03)

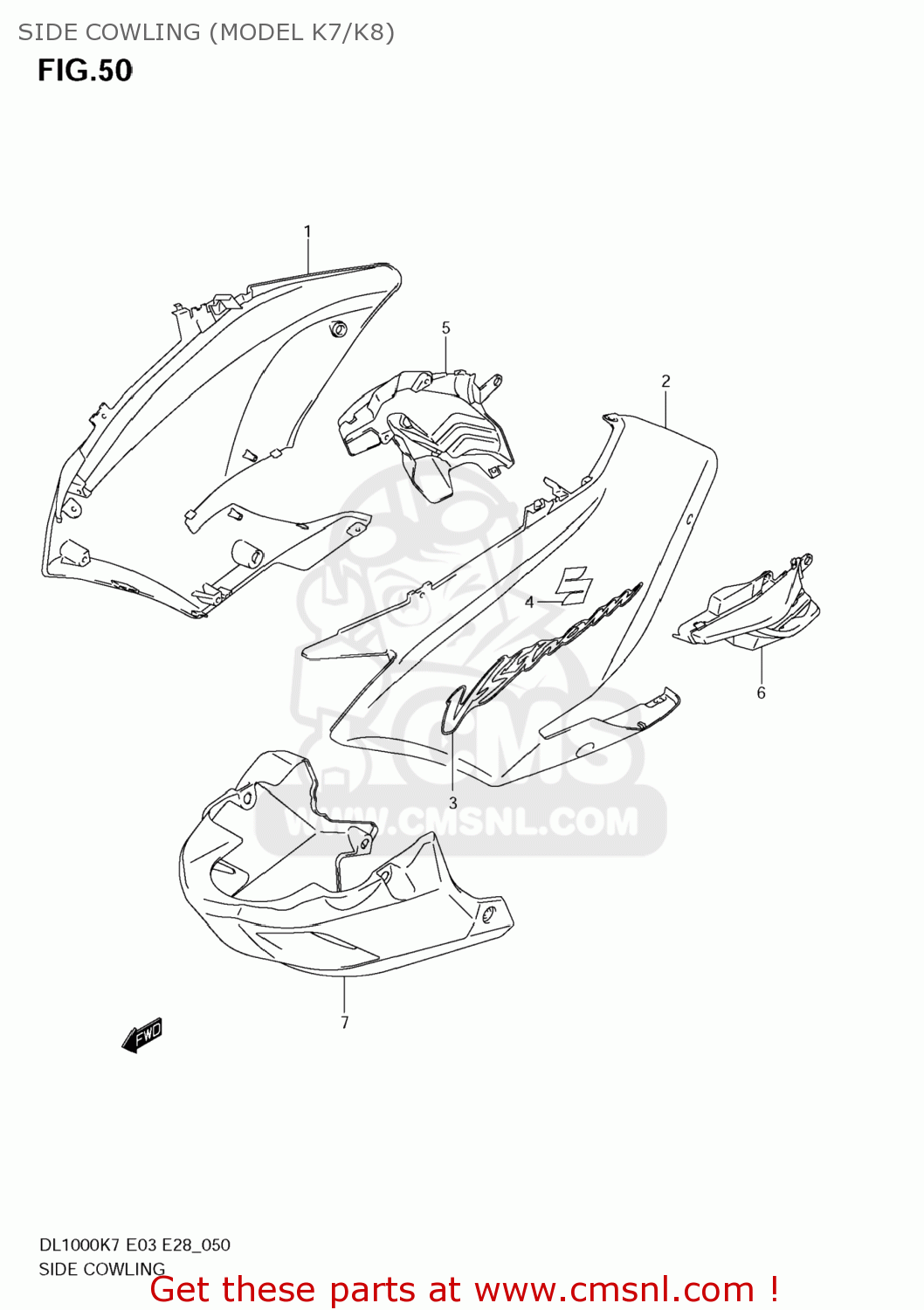

Side cowling (model k7/k8) diagram DL1000 VSTROM 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

9440206G404DX
ref: 1-1

COWLING ASSY,SIDE,R

€ 718.50

1-2

9440206G40YU8
ref: 1-2

COWLING ASSY,SIDE,R

€ 492.50

1-3

9440206G40YKY
ref: 1-3

COWLING ASSY,SIDE,R

€ 588.50

1-4

9440206G50YMD
ref: 1-4

COWLING ASSY,SIDE,R

€ 796.50

2-1

9440306G404DX
ref: 2-1

COWLING ASSY,SIDE,L

€ 718.50

2-2

9440306G40YU8
ref: 2-2

COWLING ASSY,SIDE,L

€ 476.50

2-3

9440306G40YKY
ref: 2-3

COWLING ASSY,SIDE,L

€ 747.00

2-4

9440306G50YMD
ref: 2-4

COWLING ASSY,SIDE,L

€ 796.50

3-1

6868127G00DWV
ref: 3-1

EMBLEM,COWLING SIDE

€ 23.50

3-2

6868127G00DWW
ref: 3-2

EMBLEM,COWLING SIDE

€ 16.00

3-3

6868127G00DWY
ref: 3-3

EMBLEM,COWLING SIDE

€ 16.00

3-4

6868127G00FBT
ref: 3-4

EMBLEM,COWLING SIDE

€ 17.50

6811118G20
ref: 4

EMBLEM,S

€ 22.50

9444006G00291
ref: 5

COVER,SIDE COWL,R(BLACK)

€ 92.50

9445006G00291
ref: 6

COVER,SIDE COWL,L(BLACK)

€ 92.50

9447106GA0291
ref: 7

COWLING,UNDER

€ 200.00

SIDE COWLING (MODEL K7/K8)
