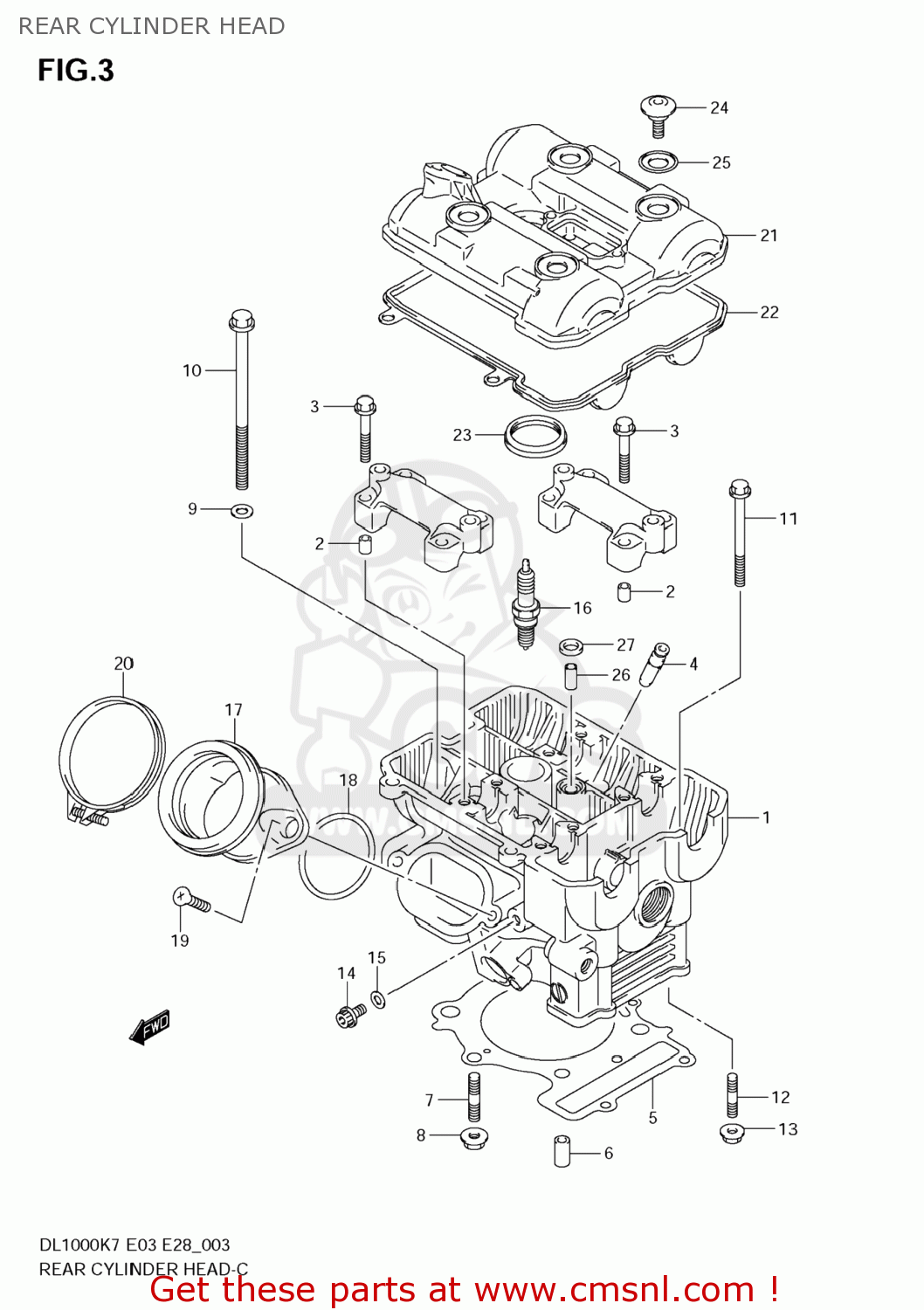

REAR CYLINDER HEAD

ref

part #

description

quantity

1

1110006G00
ref: 1

HEAD ASSY,CYLINDER FR

€ 1,449.50

2

0920608001
ref: 2

PIN(6.2X8X11)

€ 2.00

3

0910306026
ref: 3

BOLT(6X39)

€ 2.00

4

1111532E70
ref: 4

GUIDE,VALVE

€ 18.50

5

1114102F01
ref: 5

GASKET,CYLINDER HEAD (NAS)

€ 42.00

6

0421113189
ref: 6

PIN

€ 2.50

7

0910808143
ref: 7

BOLT,STUD

€ 3.00

8

083161008B
ref: 8

NUT

€ 3.00

9

0916010082
ref: 9

WASHER(10.5X19X2)

€ 2.00

10

0910310276
ref: 10

BOLT(10X175)

€ 13.50

11

0910306103
ref: 11

BOLT(6X70)

€ 2.50

12

0910806096
ref: 12

BOLT,STUD

€ 2.50

13

083161006B
ref: 13

NUT

€ 2.50

14

071200612B
ref: 14

BOLT

€ 3.50

15

0916806023
ref: 15

GASKET(5.8X13X1.2) (NAS)

€ 2.00

16-1

0948200412
ref: 16-1

PLUG,SPARK(CR8EK)

€ 11.00

16-2

0948200413
ref: 16-2

PLUG,SPARK(U24ETR)

€ 11.00

16-3

0948200410
ref: 16-3

PLUG,SPARK(CR9EK)

€ 10.50

16-4

0948200411
ref: 16-4
09482-00459

PLUG,SPARK(U27ETR)

€ 8.50

16-5

0948200462
ref: 16-5

PLUG,SPARK(CR10EK)

€ 10.50

16-6

0948200463
ref: 16-6

PLUG,SPARK(U31ETR)

€ 10.50

17

1310206G00
ref: 17

PIPE ASSY,INTAKE RR

€ 69.00

18

0928055005
ref: 18

O RING(D:2.4,ID:55.6)

€ 5.50

19

021220616B
ref: 19

SCREW

€ 2.00

20

0940270902
ref: 20

CLAMP

€ 6.00

21

1117206G00
ref: 21

COVER,CYLINDER HEAD RR

€ 264.00

22

1117302F00
ref: 22

GASKET,CYL HEAD COVER NO.1 (NAS)

€ 29.00

23

1117817E00
ref: 23

GASKET,CYL HEAD COVER NO.2

€ 6.00

24

0910607009
ref: 24

BOLT(7X17.5)

€ 4.50

25

1119127E00
ref: 25

WASHER,CYL HEAD COVER

€ 4.50

26

0920608007
ref: 26

PIN(6.2X8X16)

€ 2.50

27

1118235F00
ref: 27

GASKET,2ND AIR PASSAGE (NAS)

€ 4.00
