OIL COOLER

DL1000 VSTROM 2009 (K9) USA (E03)

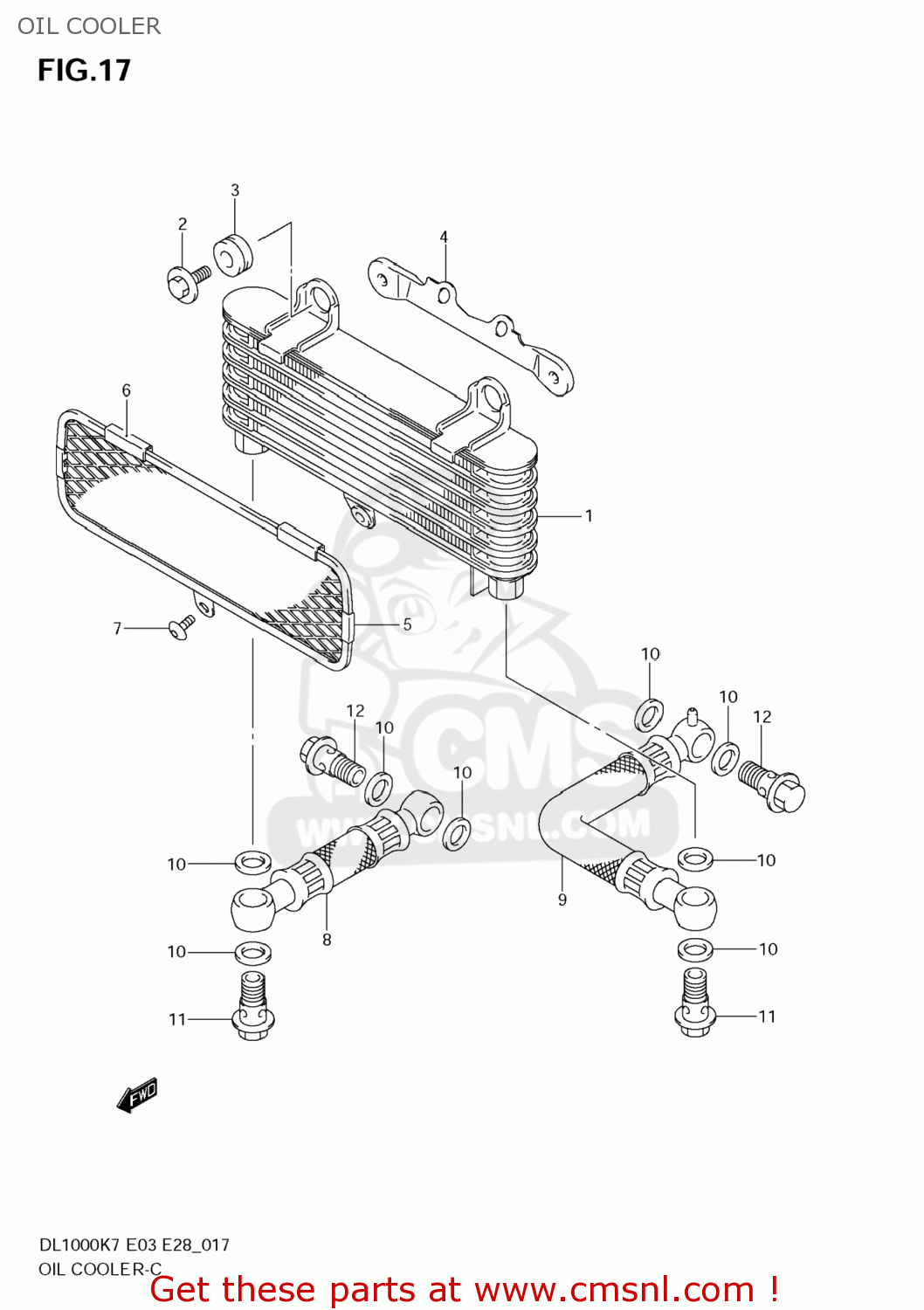

Oil cooler diagram DL1000 VSTROM 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

1660016G00
ref: 1

COOLER ASSY,OIL

€ 1,022.00

0911606167
ref: 2

BOLT(6X20)

€ 2.00

0932009009
ref: 3

CUSHION

€ 5.00

1662002F00
ref: 4

BRACKET,OIL COOLER

€ 10.50

1665016G00
ref: 5

GUARD,OIL COOLER

€ 44.50

1776509F00
ref: 6

PROTECTOR,CTR

€ 2.50

021420510B
ref: 7

SCREW

€ 2.50

1646016G00
ref: 8

HOSE,OIL COOLER,R

€ 145.50

1647016G00
ref: 9

HOSE,OIL COOLER,L

€ 140.50

0916814015
ref: 10

GASKET(14X20X1.5) (NAS)

€ 1.50

0936012012
ref: 11
09360-12012-A05

BOLT UNION

€ 8.00

0936014015
ref: 12

BOLT UNION

€ 10.00
