OIL PUMP

DL1000 VSTROM 2009 (K9) USA (E03)

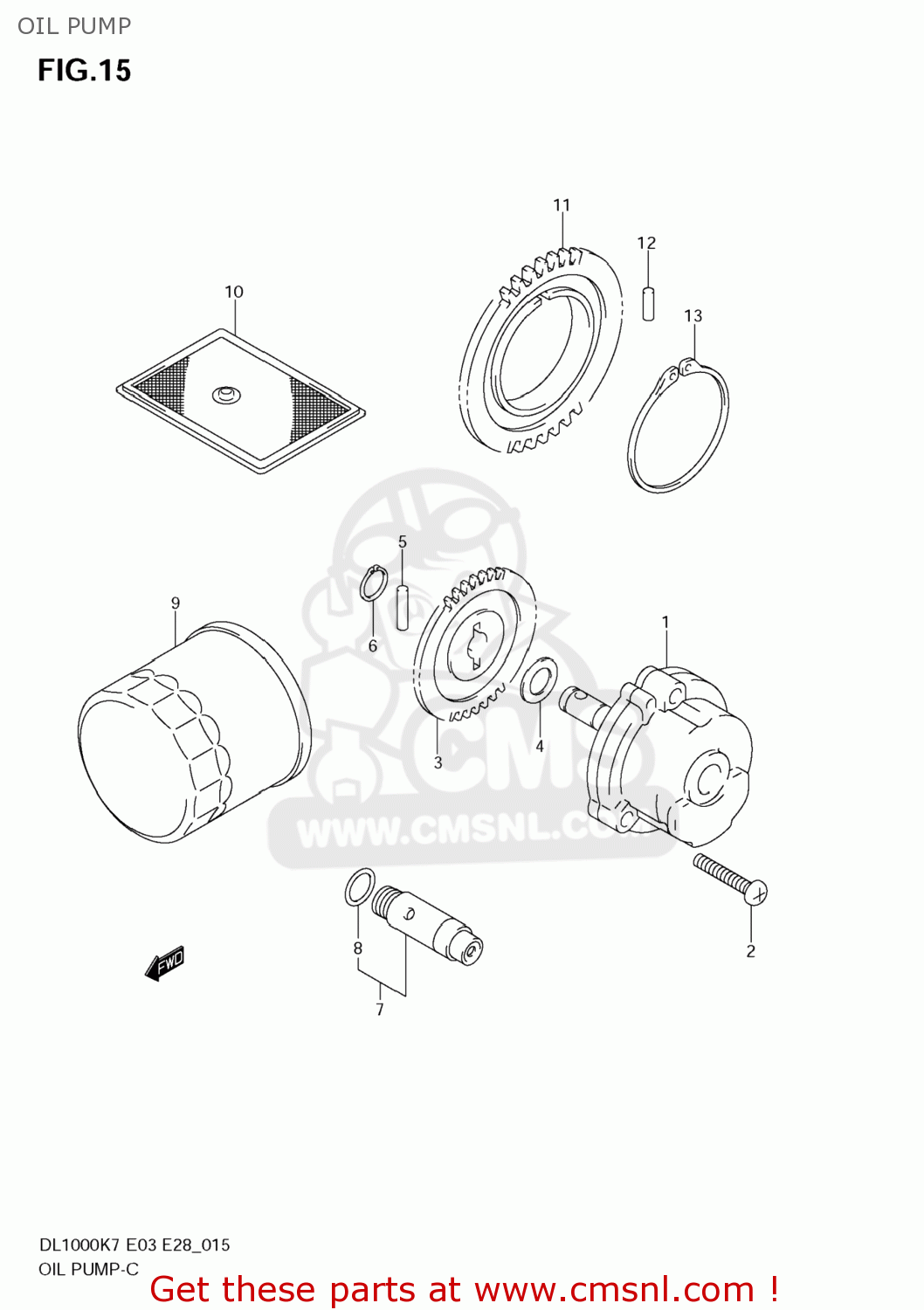

Oil pump diagram DL1000 VSTROM 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

1640002FB0
ref: 1

PUMP ASSY,ENGINE OIL

€ 135.50

071300625B
ref: 2

BOLT

€ 3.00

1633102F00
ref: 3

GEAR,OIL PUMP DRIVEN

€ 35.50

0918110158
ref: 4

SHIM(10X18X0.5)

€ 2.50

0926104009
ref: 5

PIN(4X15.8)

€ 1.50

0833131106
ref: 6
08331-3110A

CIRCLIP,10MM

€ 2.00

1644024F00
ref: 7

VALVE ASSY,OIL RELIEF(7K)

€ 41.50

0928013004
ref: 8

O RING(D:1.9,ID:13)

€ 2.50

1651003G00X07
ref: 9
16510-07J00

FILTER ASSY,EN

€ 12.50

1652032E00
ref: 10

STRAINER,ENGINE OIL

€ 11.50

1632102F00
ref: 11

GEAR,ENG OIL PUMP DRIVE

€ 39.00

0926106002
ref: 12

PIN(6X6)

€ 1.50

0833131506
ref: 13
08331-31509

CIRCLIP

€ 4.50

all assemblies
