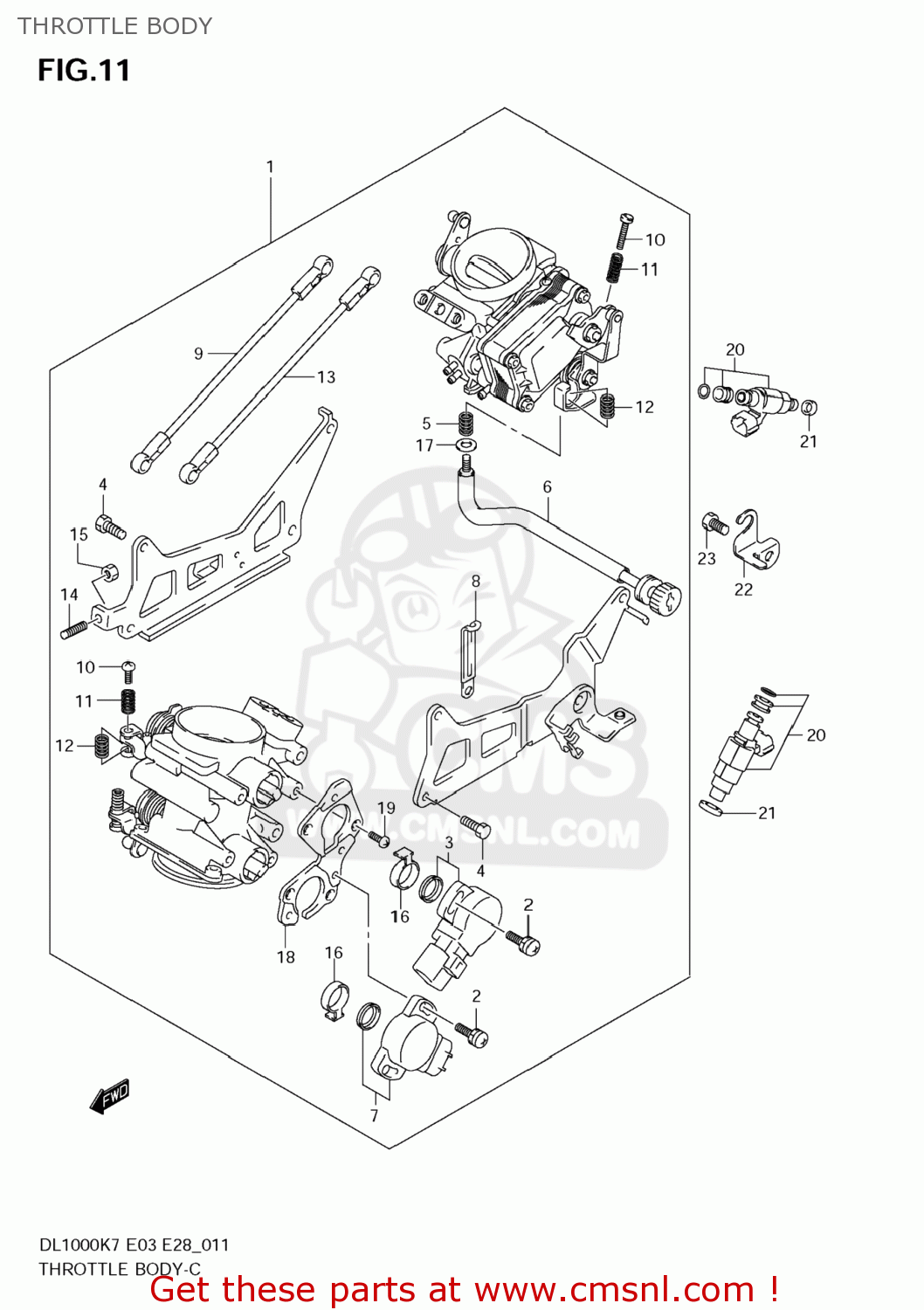

THROTTLE BODY

ref

part #

description

quantity

1-1

1340506G51
ref: 1-1

BODY ASSY,THROTTLE

€ 911.00

1-2

1340506G41
ref: 1-2

BODY ASSY,THROTTLE

€ 911.00

2

1360502F00
ref: 2

SCREW

€ 3.00

3

1358006G00
ref: 3

SENSOR ASSY

€ 125.50

4

1361202F00
ref: 4

BOLT

€ 3.50

5

1327193011
ref: 5

SPRING

€ 4.50

6

1327006G00
ref: 6

SCREW ASSY,ADJUST

€ 82.50

7

1358002F00
ref: 7

SENSOR ASSY,THROTTLE

€ 118.50

8

0940406429
ref: 8

CLAMP(L:45)

€ 2.50

9

1355206G10
ref: 9

ROD ASSY

€ 26.50

10

1354842F00
ref: 10

SCREW

€ 3.50

11

1327144B00
ref: 11

SPRING

€ 4.00

12

1326889J00
ref: 12

SPRING

€ 6.00

13

1355206G00
ref: 13

ROD ASSY

€ 20.00

14

1360506G00
ref: 14

SCREW,ADJUST

€ 5.00

15

1360747070
ref: 15

NUT

€ 4.00

16

1331106G00
ref: 16

RING

€ 6.50

17

1338609410
ref: 17

WASHER

€ 2.50

18

1362706G00
ref: 18

PLATE

€ 31.00

19

0211204107
ref: 19

SCREW

€ 2.00

20

1571006G00
ref: 20

INJECTOR ASSY

€ 311.00

21

1367233E00
ref: 21

CUSHION,FUEL INJECTOR

€ 12.50

22

1327906G00
ref: 22

PLATE,IDLE ADJUST

€ 5.50

23

015000612B
ref: 23

BOLT

€ 2.00

all assemblies
