STAND

DL1000 VSTROM 2009 (K9) USA (E03)

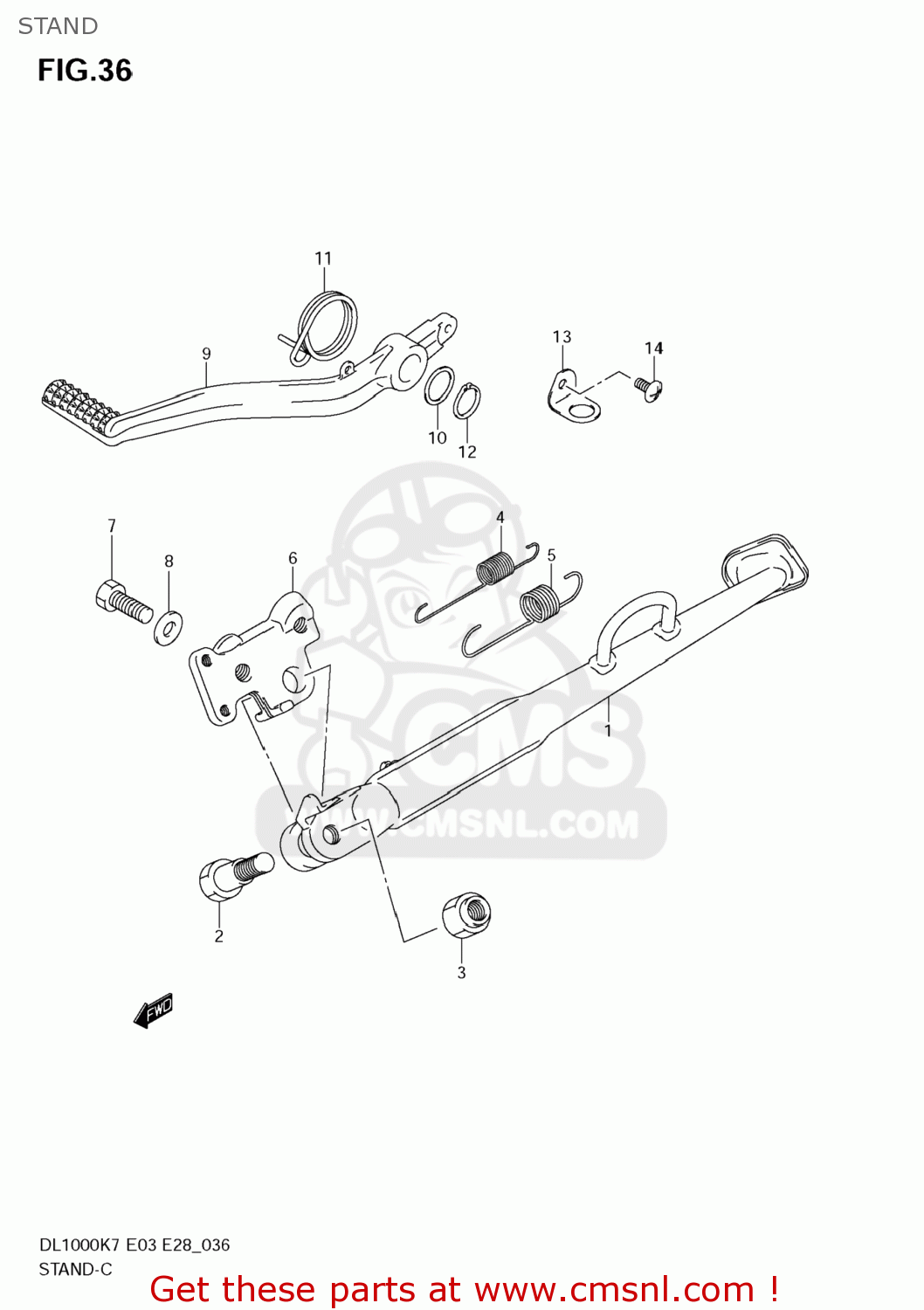

Stand diagram DL1000 VSTROM 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

4231006G00
ref: 1

STAND,PROP

€ 142.00

0911110058
ref: 2

BOLT(10X37.5)

€ 6.00

4232103FK0
ref: 3

NUT,PROP STAND

€ 4.50

0944314058
ref: 4

SPRING

€ 5.50

0944319011
ref: 5

SPRING

€ 5.50

4233006G00
ref: 6
42330-06G01

BRACKET, PROP STAND

€ 71.00

0910012084
ref: 7

BOLT(12X30)

€ 4.00

0916012061
ref: 8

WASHER(12.5X24X2.6)

€ 2.00

4311106G00
ref: 9

PEDAL,BRAKE

€ 94.00

0916018022
ref: 10

WASHER(18X24X1)

€ 3.00

0944841005
ref: 11

SPRING

€ 4.00

083313118A
ref: 12

CIRCLIP

€ 2.00

4325106G00
ref: 13

BRACKET,STOP LAMP SWITCH

€ 6.00

021420612A
ref: 14

SCREW

€ 2.00

STAND
