HEADLAMP

DL1000 VSTROM 2009 (K9) USA (E03)

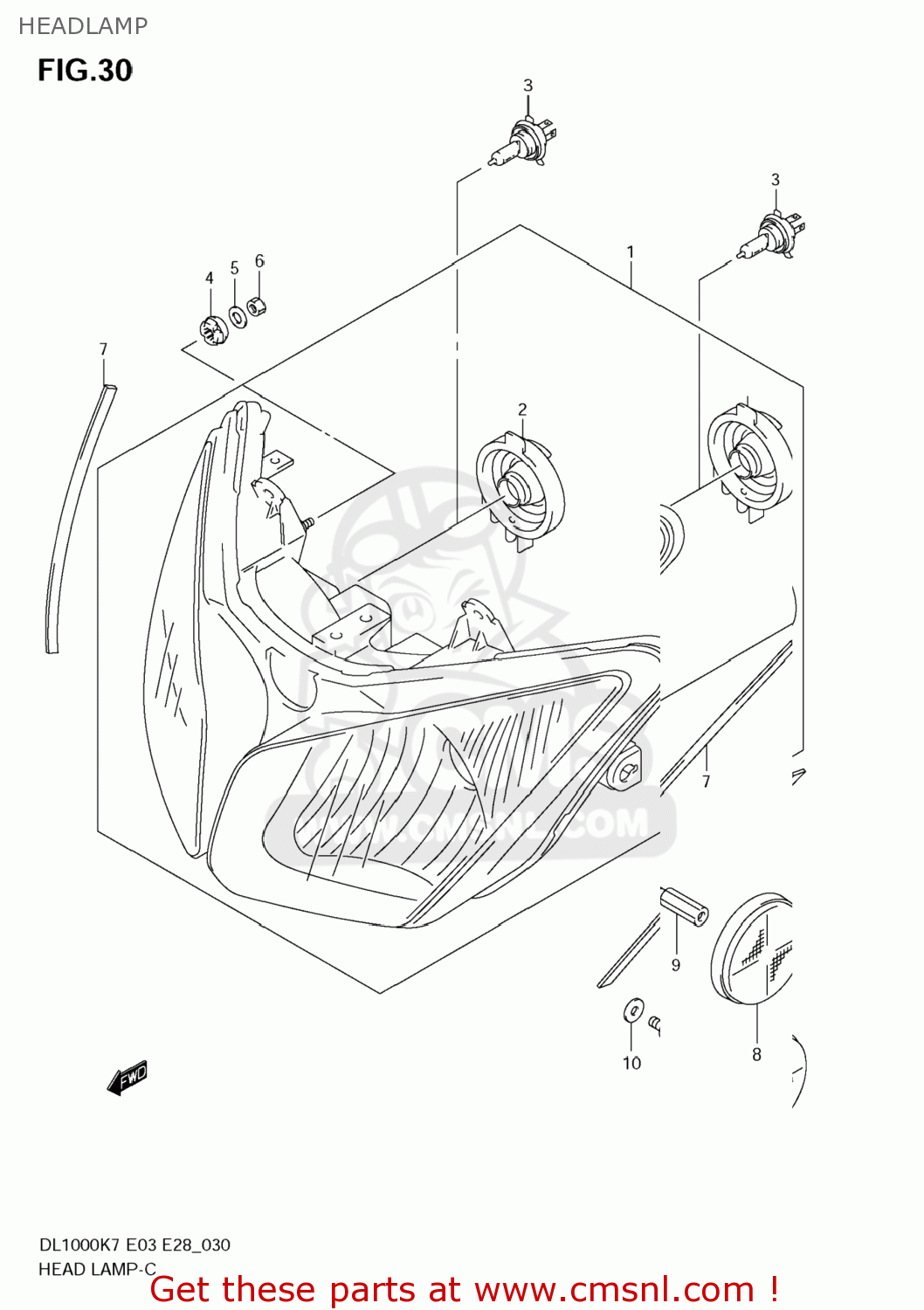

Headlamp diagram DL1000 VSTROM 2009 (K9) USA (E03)

HEADLAMP DL1000 VSTROM 2009 (K9) USA (E03)

HEADLAMP DL1000 VSTROM 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3510006G30999
ref: 1

HEADLAMP ASSY

€ 515.50

2

3512577A00
ref: 2

COVER,SOCKET

€ 12.00

3

0947112182
ref: 3

BULB(12V60/55W,H4)

€ 8.00

4

0932009010
ref: 4

CUSHION

€ 2.50

5

0916006088
ref: 5

WASHER(6.5X20X1.6)

€ 2.00

6

083100006B
ref: 6

NUT

€ 2.00

7

3365206G10
ref: 7

CUSHION,HEADLAMP

€ 3.50

8

3595014A10
ref: 8
35950-14A11

REFLECTOR,REFLEX

€ 11.00

9

0911905023
ref: 9

BOLT(5X10)

€ 7.50

10

083220105B
ref: 10

WASHER

€ 2.50
