WATER PUMP
DL1000 VSTROM 2009 (K9) USA (E03)

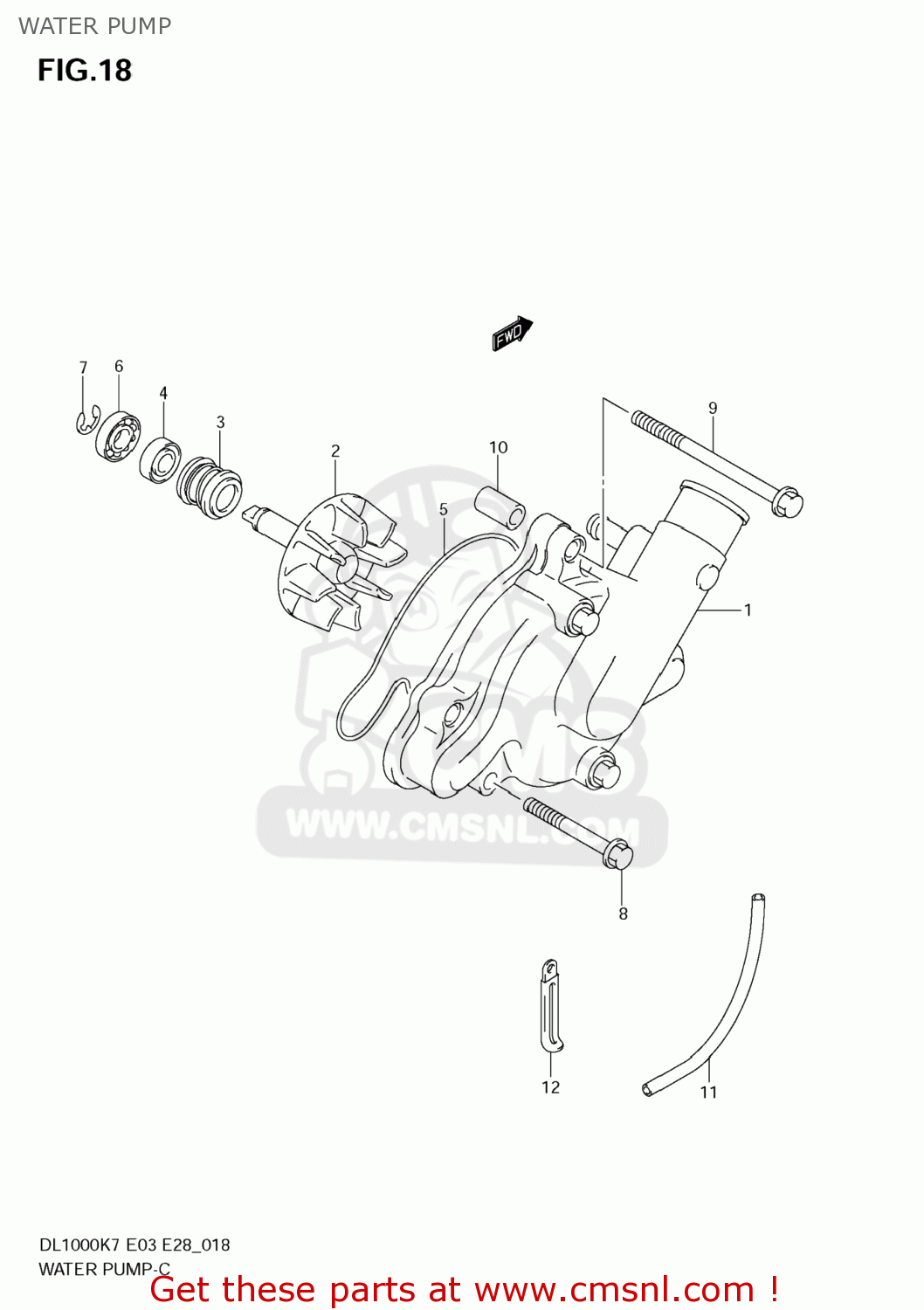

Water pump diagram DL1000 VSTROM 2009 (K9) USA (E03)
WATER PUMP DL1000 VSTROM 2009 (K9) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1741002F41
ref: 1
CASE,WATER PUMP
€ 107.50
2
1749116G00
ref: 2
IMPELLER,WATER PUMP
€ 18.50
3
1747002F10
ref: 3
SEAL,MECHANICAL
€ 21.50
4
0928310005
ref: 4
SEAL,OIL(10X20X5)
€ 4.50
5
1743502F00
ref: 5
O RING,WATER PUMP CASE
€ 8.50
6
0926210016
ref: 6
BEARING(10X22X5)
€ 17.50
7
083321108A
ref: 7
E RING
€ 2.00
8
0910306213
ref: 8
BOLT(6X30)
€ 2.50
9
0910306239
ref: 9
BOLT(6X65)
€ 3.50
10
0421109149
ref: 10
PIN
€ 2.00
11
0935242703600
ref: 11
HOSE(4.2X7X600)
€ 4.00
12
0940406433
ref: 12
CLAMP(L:80)
€ 3.00
