AIR CLEANER
DL650A VSTROM 2009 (K9) USA (E03)

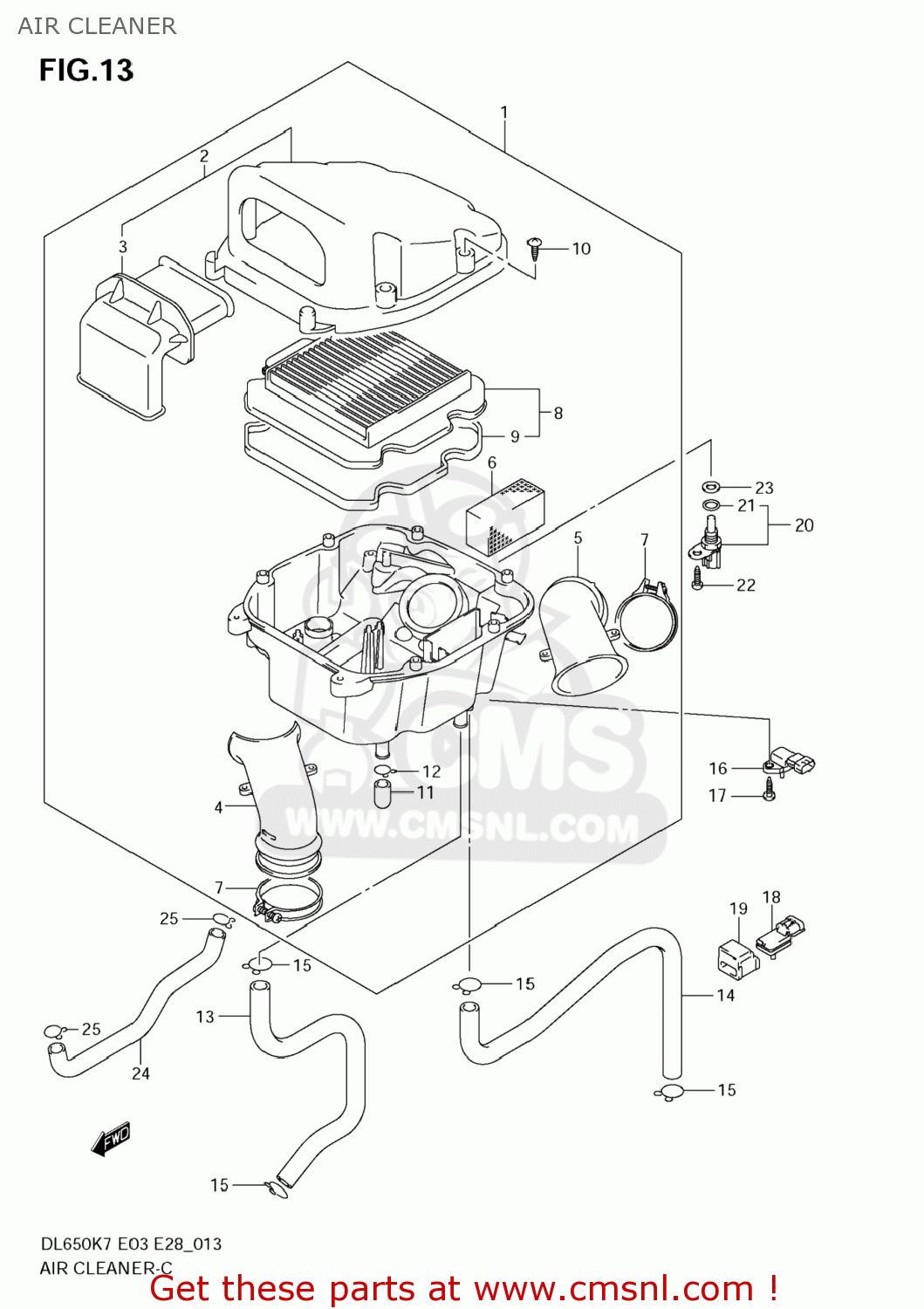

Air cleaner diagram DL650A VSTROM 2009 (K9) USA (E03)
AIR CLEANER DL650A VSTROM 2009 (K9) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1370027G10
ref: 1
CLEANER ASSY,AIR
€ 119.50
2
1374027G00
ref: 2
CAP,AIR CLEANER
€ 43.50
3
1389127G00
ref: 3
TUBE,INLET
€ 32.00
4
1388127G10
ref: 4
TUBE,OUTLET
€ 15.50
5
1388227G10
ref: 5
TUBE,OUTLET
€ 15.50
6
1378827G10
ref: 6
FILTER,BREATHER
€ 3.50
7
1382617G00
ref: 7
CLAMP
€ 6.00
8
1378027G10
ref: 8
FILTER ASSY
€ 36.00
9
1374606G00
ref: 9
GASKET,AIR CLEANER (NAS)
€ 13.00
10
031410516A
ref: 10
SCREW
€ 2.50
11
1387810G00
ref: 11
PLUG
€ 3.00
12
0940114301
ref: 12
CLIP
€ 2.00
13
1385127G00
ref: 13
TUBE,BREATHER CYLINDER
€ 17.00
14
1385227G10
ref: 14
TUBE,BREATHER CRANKCASE
€ 22.50
15
0940115101
ref: 15
CLIP
€ 2.00
16
1859017G01
ref: 16
SENSOR,BOOST
€ 418.50
17
035410516A
ref: 17
SCREW
€ 1.50
18
1859141F00
ref: 18
SENSOR,PRESSURE
€ 360.00
19
1859541F00
ref: 19
HOLDER,SENSOR
€ 14.50
20
1365041F10
ref: 20
SENSOR,AIR TEMP
€ 41.50
21
1365541F10
ref: 21
O RING
€ 7.00
22
035110516A
ref: 22
SCREW
€ 2.50
23
0916812017
ref: 23
GASKET(12X17X1) (NAS)
€ 2.00
24
1386527G00
ref: 24
HOSE,ISC CLNR
€ 17.00
25
0940115101
ref: 25
CLIP
€ 2.00
