WIRING HARNESS (DL650K7)
DL650A VSTROM 2009 (K9) USA (E03)

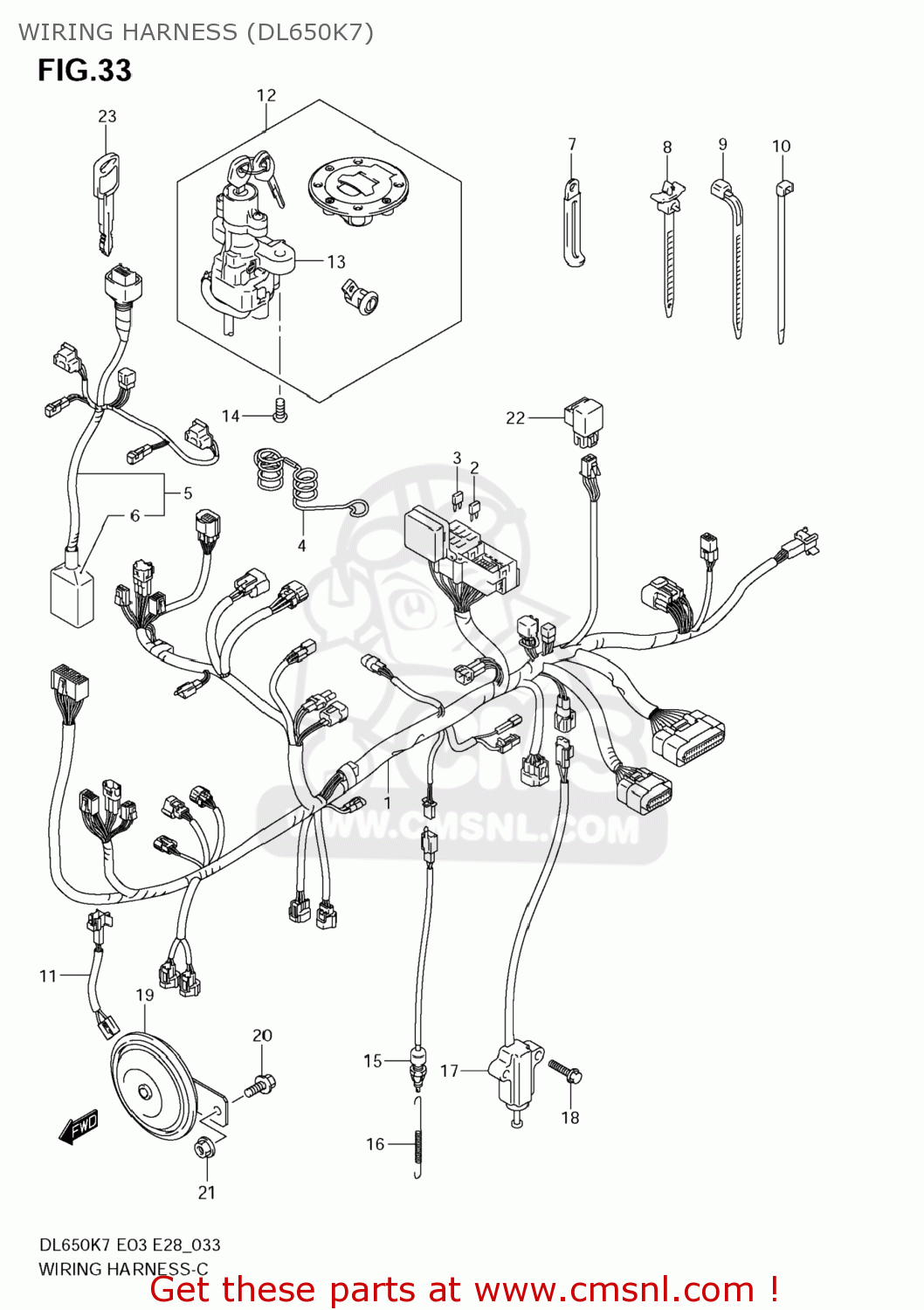

Wiring harness (dl650k7) diagram DL650A VSTROM 2009 (K9) USA (E03)
WIRING HARNESS (DL650K7) DL650A VSTROM 2009 (K9) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3661027GB0
ref: 1
HARNESS,WIRING NO.1
€ 0.00
2
0948110501
ref: 2
FUSE(10A)
€ 3.00
3
0948115501
ref: 3
FUSE(15A)
€ 1.00
4
3661906G01
ref: 4
GUIDE,WIRING HARNESS
€ 17.50
5
3662027G80
ref: 5
HARNESS,WIRING NO.2
€ 281.50
6
3661818G10
ref: 6
COVER,CONNECTOR
€ 8.00
7-1
0940406429
ref: 7-1
CLAMP(L:45)
€ 2.50
7-2
0940406433
ref: 7-2
CLAMP(L:80)
€ 3.00
8
0940711402
ref: 8
CLAMP(L:90)
€ 2.50
9-1
0940711401
ref: 9-1
CLAMP(L:95)
€ 2.50
9-2
0940714403
ref: 9-2
CLAMP(L:125)
€ 2.50
10
0940714407
ref: 10
CLAMP(L:145)
€ 4.00
11
3685206G00
ref: 11
WIRE,HORN LEAD
€ 16.00
12-1
3700027860
ref: 12-1
LOCK SET
€ 523.00
12-2
3700027870
ref: 12-2
LOCK SET
€ 0.00
13
3710027G00
ref: 13
LOCK ASSY,STEERING
€ 211.00
14
0913908016
ref: 14
BOLT(8X20)
€ 3.50
15
3774045D00
ref: 15
37740-31D00
SWITCH ASSY,STOP LAMP
€ 20.50
16
0944306012
ref: 16
SPRING
€ 3.00
17
3784006G00
ref: 17
SWITCH ASSY,SIDE STAND
€ 67.00
18
0155006163
ref: 18
01550-0616A
BOLT
€ 2.50
19
3850027G00
ref: 19
HORN ASSY
€ 80.00
20
0155008123
ref: 20
01550-0812A
BOLT
€ 3.50
21
083161008A
ref: 21
NUT
€ 2.50
22
3874024X50
ref: 22
RELAY ASSY
€ 37.50
23
3714633E00
ref: 23
KEY,BLANK
€ 13.00
