SIDE COWLING INSTALLATION PARTS

DL650A VSTROM 2009 (K9) USA (E03)

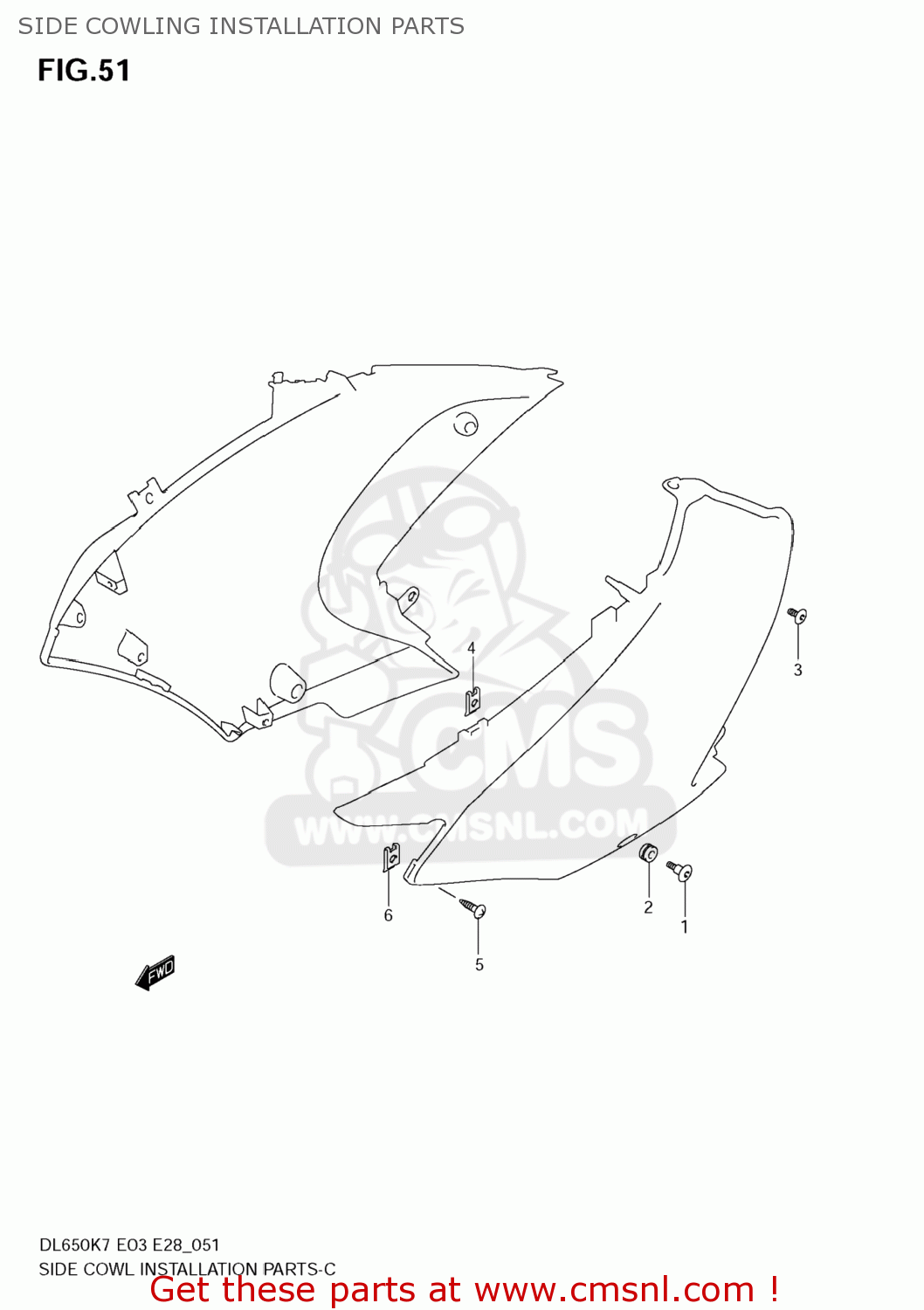

Side cowling installation parts diagram DL650A VSTROM 2009 (K9) USA (E03)

SIDE COWLING INSTALLATION PARTS DL650A VSTROM 2009 (K9) USA (E03)

SIDE COWLING INSTALLATION PARTS DL650A VSTROM 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

0913906126
ref: 1

SCREW(6X20)

€ 4.00

2

0932009016
ref: 2

CUSHION

€ 2.50

3

0913906122
ref: 3

SCREW(6X10)

€ 3.00

4

9448424F00
ref: 4

NUT,COWL

€ 4.00

5-1

032410510A
ref: 5-1

SCREW

€ 1.50

5-2

032410510B
ref: 5-2

SCREW

€ 1.50

6

0914805038
ref: 6

NUT

€ 2.50
