REAR CUSHION LEVER

DL650A VSTROM 2009 (K9) USA (E03)

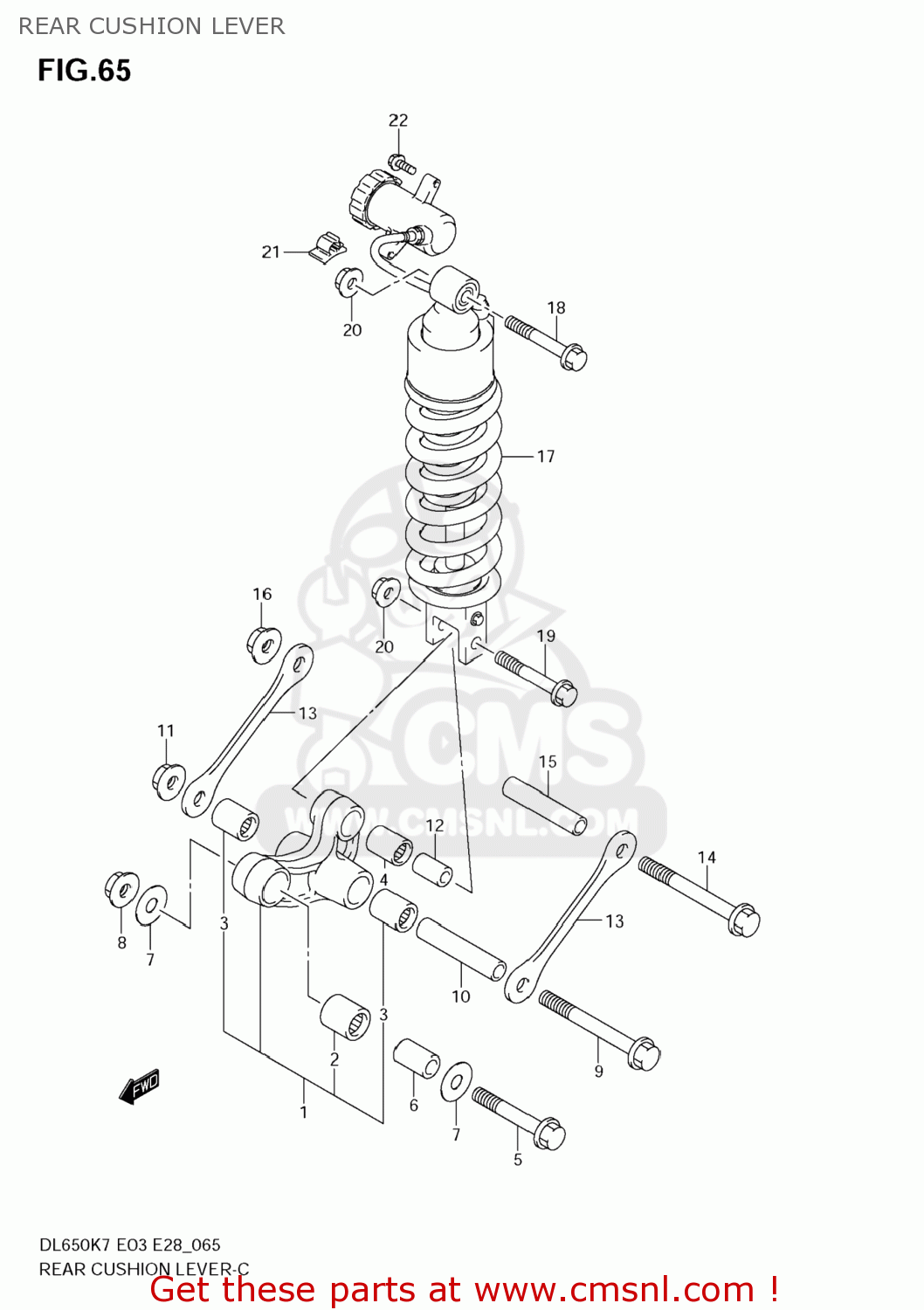

Rear cushion lever diagram DL650A VSTROM 2009 (K9) USA (E03)

REAR CUSHION LEVER DL650A VSTROM 2009 (K9) USA (E03)

REAR CUSHION LEVER DL650A VSTROM 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6260006870
ref: 1

LEVER SET,RR CUSHION

€ 238.50

2

0926320073
ref: 2

BEARING(20X27X30)

€ 24.50

3

0926317037
ref: 3

BEARING(17X24X25)

€ 19.00

4

0926317034
ref: 4

BEARING(17X24X26)

€ 21.50

5

6265819F00
ref: 5

BOLT,RR CUSHION LEVER FR

€ 8.00

6

6268412C00
ref: 6

SPACER,RR CUSHION LEVER FR

€ 12.50

7

0916012037
ref: 7

WASHER(12X34X1)

€ 4.00

8

0915912056
ref: 8

NUT

€ 7.00

9

6262119D00
ref: 9

BOLT,RR CUSHION ROD

€ 6.00

10

0918012122
ref: 10

SPACER(12X17X85)

€ 15.00

11

0915912056
ref: 11

NUT

€ 7.00

12

6268440A10
ref: 12

SPACER,RR CUSHION LEVER

€ 11.50

13

6264106G00
ref: 13

ROD,RR CUSHION LEVER

€ 22.00

14

6262119D00
ref: 14

BOLT,RR CUSHION ROD

€ 6.00

15

0918012122
ref: 15

SPACER(12X17X85)

€ 15.00

16

0915912056
ref: 16

NUT

€ 7.00

17-1

6210006G6013L
ref: 17-1

ABSORBER ASSY,RR SHOCK(SILVER)

€ 1,185.00

17-1

6210006G6013L
ref: 17-1

ABSORBER ASSY,RR SHOCK(SILVER)

€ 1,185.00

17-2

6210006G7013L
ref: 17-2

ABSORBER ASSY,RR SHOCK(SILVER)

€ 0.00

17-2

6210006G7013L
ref: 17-2

ABSORBER ASSY,RR SHOCK(SILVER)

€ 0.00

18

0910310033
ref: 18

BOLT(10X70)

€ 5.00

19

0910310143
ref: 19

BOLT(10X55)

€ 3.50

20

0915910115
ref: 20

NUT

€ 4.00

21

0940310313
ref: 21

CLAMP

€ 7.50

22

015500616A
ref: 22

BOLT

€ 2.50
