EVAPO SYSTEM (E33)

DL650A VSTROM 2009 (K9) USA (E03)

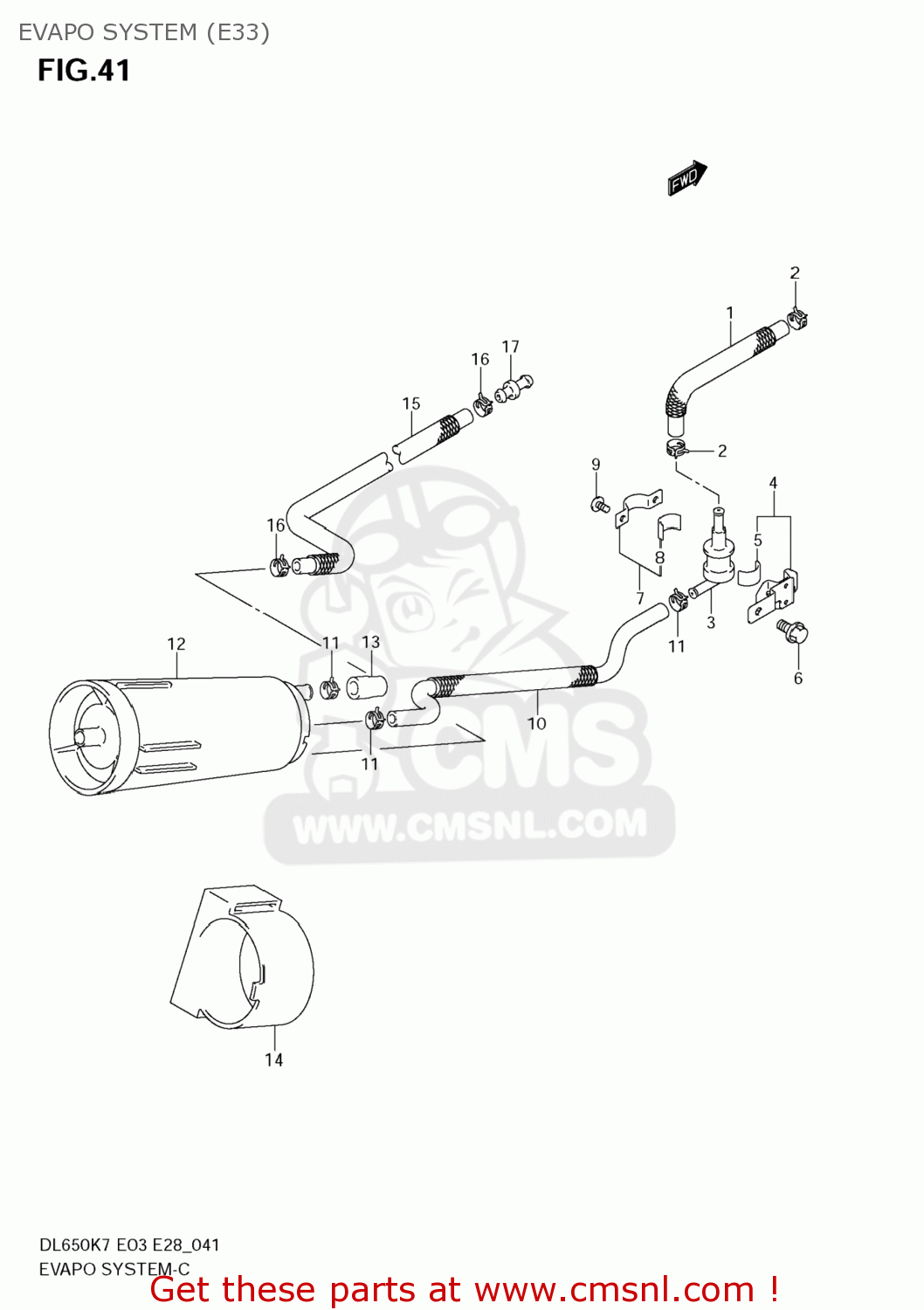

Evapo system (e33) diagram DL650A VSTROM 2009 (K9) USA (E03)

EVAPO SYSTEM (E33) DL650A VSTROM 2009 (K9) USA (E03)

EVAPO SYSTEM (E33) DL650A VSTROM 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4443406G00
ref: 1-1

HOSE,TANK & BREATHER VALVE

€ 0.00

1-2

4443406G10
ref: 1-2

HOSE,TANK & BREATHER VALVE

€ 14.00

2

0940111413
ref: 2

CLIP

€ 2.50

3

4424017C00
ref: 3

VALVE,FUEL TANK BREATHER

€ 40.00

4

4489006G00
ref: 4

PLATE,BREATHER VALVE

€ 0.00

5

4489424A00
ref: 5

CUSHION

€ 1.50

6-1

015500612A
ref: 6-1

BOLT

€ 2.50

6-2

015500612B
ref: 6-2

BOLT

€ 2.50

7

4489224A00
ref: 7

PLATE,FUEL TANK BREATHER NO.2

€ 3.00

8

4489424A00
ref: 8

CUSHION

€ 1.50

9

021420408B
ref: 9

SCREW

€ 1.50

10-1

4443527G00
ref: 10-1

HOSE, VALVE & CANISTER

€ 0.00

10-2

4443527G10
ref: 10-2

HOSE,BREATHER VALVE & CANISTER

€ 25.50

11

0940111413
ref: 11

CLIP

€ 2.50

12

1721026E00
ref: 12

CANISTER ASSY,CHARCOAL

€ 261.50

13

0925107003
ref: 13

CAP,OD:11.5

€ 2.00

14

4488306G00
ref: 14

CUSHION,CANISTER

€ 8.00

15-1

4443606G00
ref: 15-1

HOSE,CSTR PURGE

€ 47.50

15-2

4443606G10
ref: 15-2

HOSE,CSTR PURGE

€ 29.00

16

0940112404
ref: 16

CLIP

€ 2.50

17

0936706009
ref: 17

JOINT

€ 2.50
