STARTING MOTOR
DL650A VSTROM 2009 (K9) USA (E03)

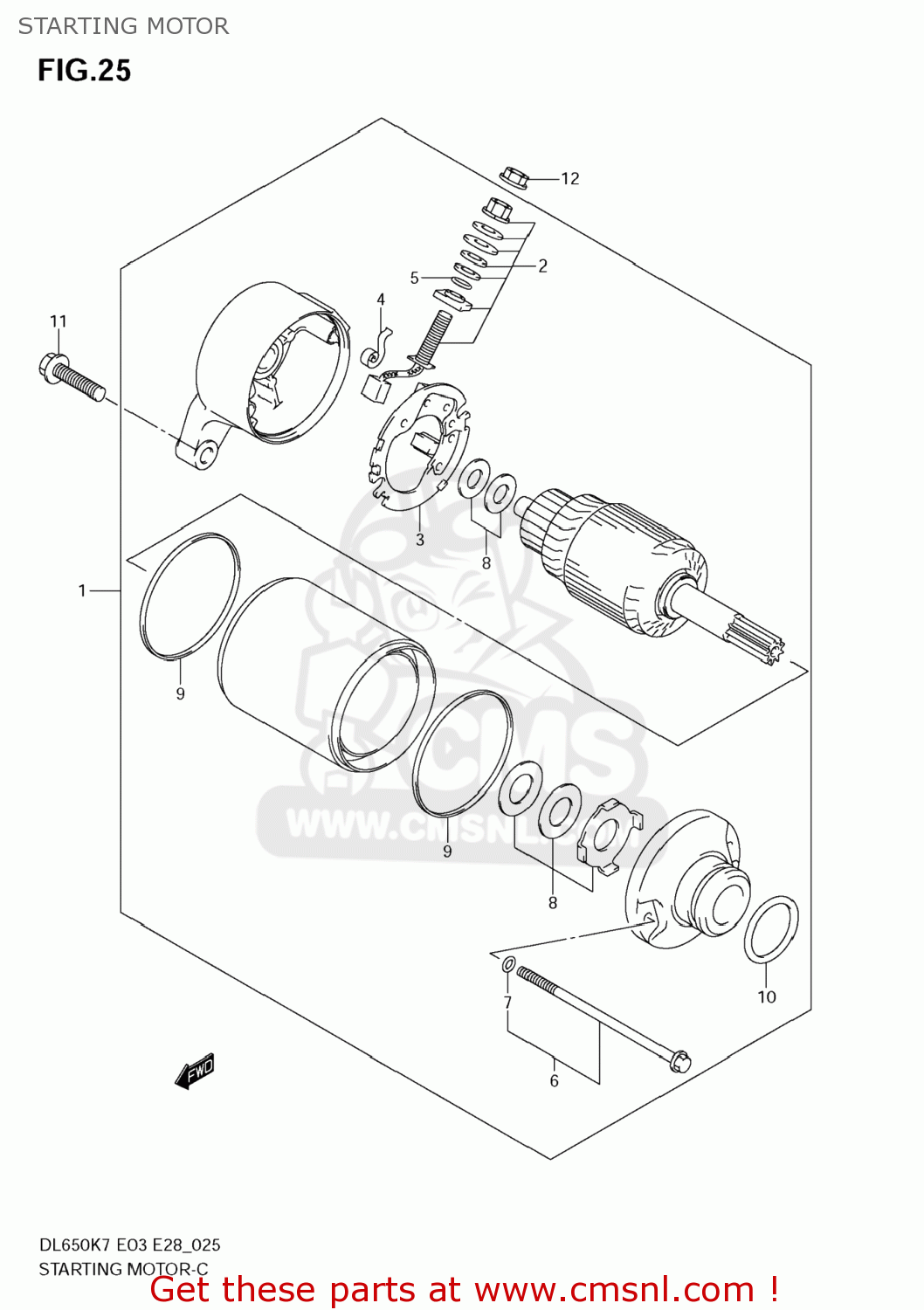

Starting motor diagram DL650A VSTROM 2009 (K9) USA (E03)
STARTING MOTOR DL650A VSTROM 2009 (K9) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3110019F00
ref: 1
MOTOR ASSEMBLY,STARTING
€ 457.50
2
3113013E00
ref: 2
BRUSH TERMINAL SET
€ 42.50
3
3113233E00
ref: 3
BRUSH HOLDER SET
€ 57.00
4
3113531300
ref: 4
SPRING,BRUSH
€ 4.00
5
3114349040
ref: 5
O RING
€ 3.00
6
3128019F00
ref: 6
BOLT SET
€ 12.50
7
3115613E00
ref: 7
O RING
€ 3.00
8
3117019B10
ref: 8
SHIM SET,STARTING MOTOR
€ 8.00
9
3126413E00
ref: 9
O RING
€ 6.00
10
0928024003
ref: 10
O RING(D:3,ID:24.5)
€ 2.00
11
0910306212
ref: 11
BOLT(6X25)
€ 2.50
12
083613506A
ref: 12
NUT
€ 2.00
