CRANKSHAFT
DL650A VSTROM 2009 (K9) USA (E03)

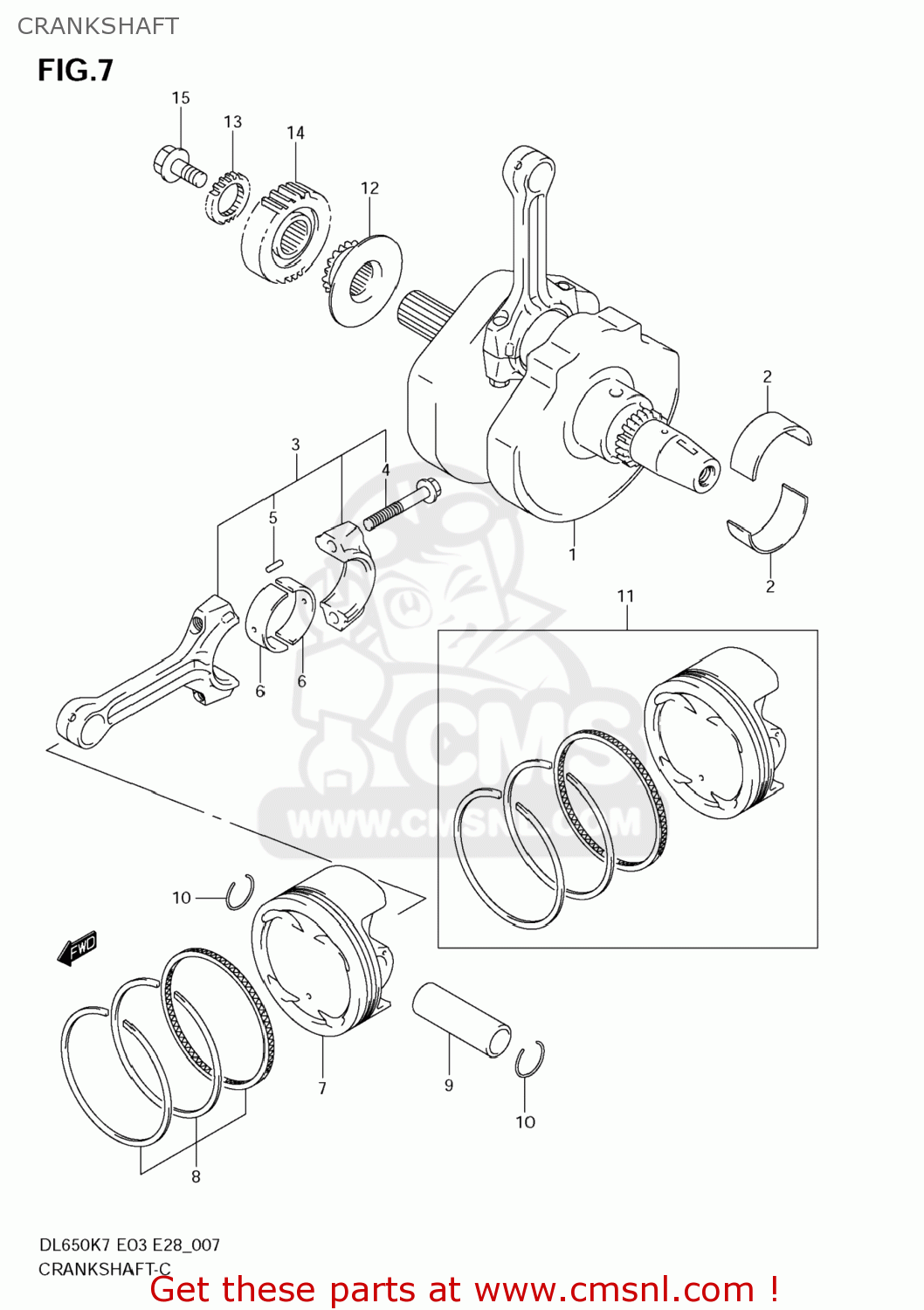

Crankshaft diagram DL650A VSTROM 2009 (K9) USA (E03)
CRANKSHAFT DL650A VSTROM 2009 (K9) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1222017G00
ref: 1
CRANKSHAFT
€ 1,429.00
2-1
1222927G000A0
ref: 2-1
BEARING,CRANKSHAFT(GREEN)
€ 21.00
2-2
1222927G000B0
ref: 2-2
BEARING,CRANKSHAFT(BLACK)
€ 21.00
2-3
1222927G000C0
ref: 2-3
BEARING,CRANKSHAFT(BROWN)
€ 21.00
3
1216017G10
ref: 3
CONNECTING ROD ASSY
€ 146.50
4
1216324F10
ref: 4
BOLT,CONNECTING ROD
€ 13.00
5
0422104089
ref: 5
PIN
€ 1.50
6-1
1216446E010A0
ref: 6-1
BEARING,CRANK PIN
€ 17.50
6-2
1216446E010B0
ref: 6-2
BEARING,CRANK PIN
€ 16.50
6-3
1216446E010C0
ref: 6-3
BEARING,CRANK PIN
€ 17.50
6-4
1216446E010D0
ref: 6-4
BEARING,CRANK PIN
€ 16.50
7
1211120F100F0
ref: 7
PISTON
€ 87.00
8-1
1214017G10
ref: 8-1
RING SET,PISTO
€ 66.00
8-2
1214017G20
ref: 8-2
RING SET,PISTON
€ 66.00
9
1215105A00
ref: 9
PIN,PISTON
€ 12.00
10
0938120004
ref: 10
CIRCLIP,PISTON PIN
€ 2.00
11-1
1210017G10050
ref: 11-1
PISTON SET(OS:0.5)
€ 139.00
11-1
1210017G10050
ref: 11-1
PISTON SET(OS:0.5)
€ 139.00
11-2
1210017G20050
ref: 11-2
PISTON SET(OS:0.5)
€ 147.00
11-2
1210017G20050
ref: 11-2
PISTON SET(OS:0.5)
€ 147.00
12
1273119F00
ref: 12
SPROCKET,CAM CHAIN DRIVE
€ 45.00
13
1745117G00
ref: 13
GEAR,WATER PUMP DRIVE
€ 26.00
14
2111120F10
ref: 14
GEAR,PRIMARY DRIVE
€ 111.50
15
0910310338
ref: 15
BOLT(10X19)
€ 6.00
