FRAME

DL650A VSTROM 2009 (K9) USA (E03)

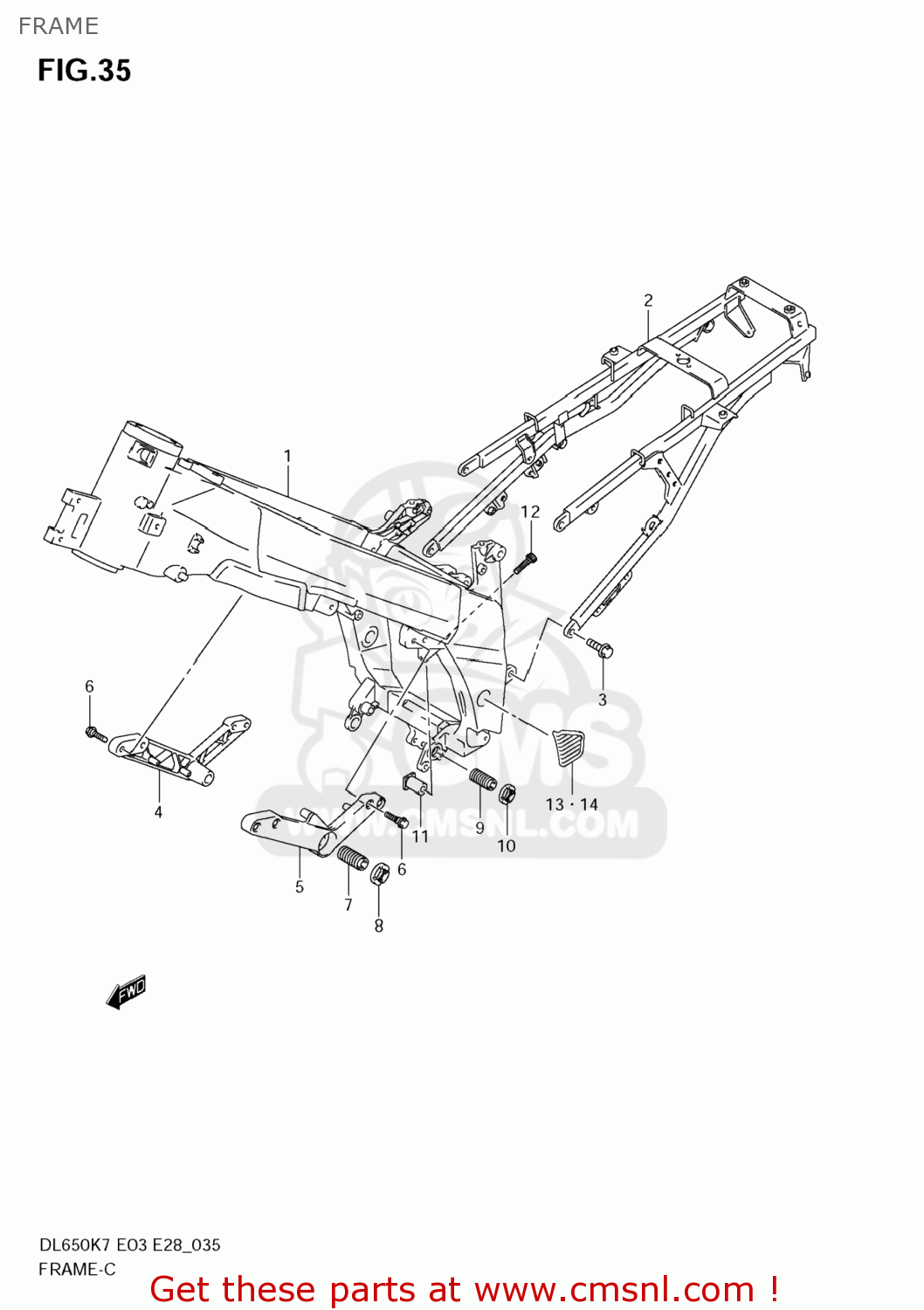

Frame diagram DL650A VSTROM 2009 (K9) USA (E03)

FRAME DL650A VSTROM 2009 (K9) USA (E03)
FRAME DL650A VSTROM 2009 (K9) USA (E03)
FRAME DL650A VSTROM 2009 (K9) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
4110027G10YAP
ref: 1
FRAME COMP
€ 3,716.50
2
4120006G60
ref: 2
RAIL,SEAT
€ 712.00
3
0910310379
ref: 3
BOLT(10X30)
0910310379
€ 4.00
4-1
4191106G70YAP
ref: 4-1
BRACKET,ENGINE MOUNTING,R
4191106G70YAP
€ 428.50
4-2
4191106G80YAP
ref: 4-2
BRACKET,ENGINE MOUNTING,R
4191106G80YAP
€ 428.50
5-1
4191206G70YAP
ref: 5-1
BRACKET,ENGINE MOUNTING,L
€ 334.50
5-2
4191206G80YAP
ref: 5-2
BRACKET,ENGINE MOUNTING,L
4191206G80YAP
€ 334.50
6
0910608175
ref: 6
BOLT(8X30)
0910608175
€ 3.50
7
4192316G00
ref: 7
BOLT,CRANK CASE ADJUST CTR
4192316G00
€ 19.00
8
4192219F00
ref: 8
41922-19F20
NUT,CRANKCASE ADJUST
4192219F00
€ 12.00
9
4192116G00
ref: 9
BOLT,CASE LWR & RR HEAD ADJ
€ 10.50
10
4192233E00
ref: 10
NUT,CRANK CASE ADJUST BOLT
4192233E00
€ 18.50
11
4194119F01
ref: 11
SPACER,MOUNTING RR UPR,R
4194119F01
€ 25.00
12
0910608168
ref: 12
BOLT(8X38)
€ 2.50
13
4358527G00
ref: 13
COVER,PIVOT,R
4358527G00
€ 18.00
14
4359527G00
ref: 14
COVER,PIVOT,L
4359527G00
€ 13.00
