TRANSMISSION
DL650A VSTROM 2009 (K9) USA (E03)

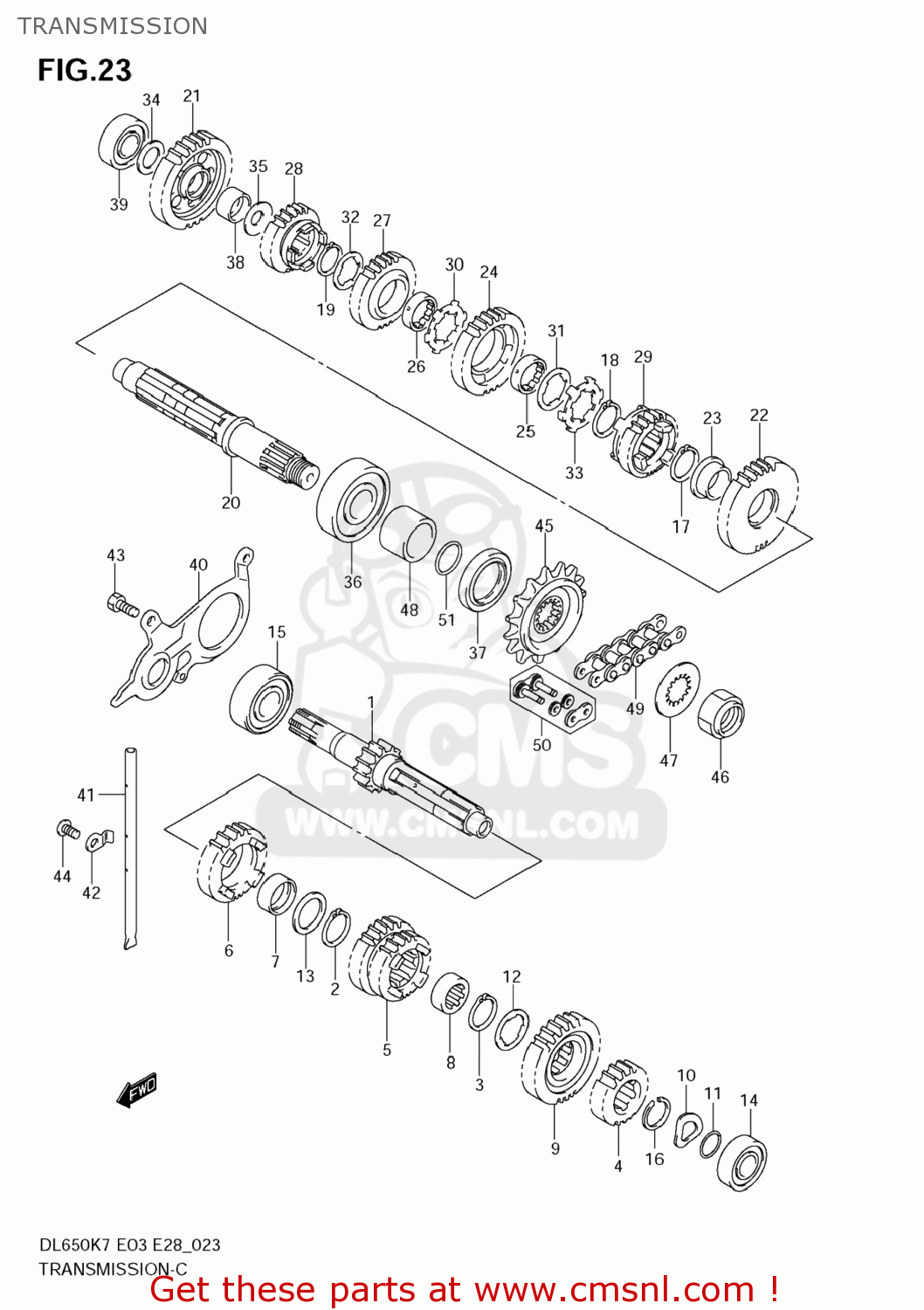

Transmission diagram DL650A VSTROM 2009 (K9) USA (E03)
TRANSMISSION DL650A VSTROM 2009 (K9) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412027G00
ref: 1
SHAFT,COUNTER
€ 180.00
2
2412719F00
ref: 2
CIRCLIP
€ 2.00
3
2412719F00
ref: 3
CIRCLIP
€ 2.00
4
2422120F00
ref: 4
GEAR,SECOND DRIVE (NT:18)
€ 70.00
5
2423120F03
ref: 5
24231-20F10
GEAR,3RD & 4TH
€ 91.50
6
2425120F02
ref: 6
GEAR,5TH DRIVE(NT:26)
€ 78.50
7
2425219F00
ref: 7
BUSH
€ 9.50
8
2425238A10
ref: 8
BUSH,6TH DRIVE GEAR
€ 10.50
9
2426120F00
ref: 9
GEAR,6TH DRIVE(NT:27)
€ 85.00
10
0916417007
ref: 10
WASHER
€ 2.50
11
0928017001
ref: 11
O RING(D:1,ID:16.8)
€ 2.00
12
0916725021
ref: 12
WASHER,LOCK
€ 3.00
13
0918125167
ref: 13
SHIM(25X34X1)
€ 3.50
14
0926217046
ref: 14
BEARING(17X40X12)
€ 23.00
15
0926220116
ref: 15
09262-20145
BEARING 20X52X15
€ 24.00
16
0938025012
ref: 16
CIRCLIP
€ 2.00
17
2412719F00
ref: 17
CIRCLIP
€ 2.00
18
2412719F00
ref: 18
CIRCLIP
€ 2.00
19
2412719F00
ref: 19
CIRCLIP
€ 2.00
20
2413019F01
ref: 20
SHAFT,DRIVE
€ 233.50
21
2431120F00
ref: 21
GEAR,1ST DRIVEN(NT:32)
€ 112.00
22
2432120F01
ref: 22
GEAR,2ND DRIVEN.NT:32)
€ 98.50
23
2432219F00
ref: 23
BUSH
€ 12.50
24
2433120F00
ref: 24
GEAR,3RD DRIVEN(NT:29)
€ 99.00
25
2433224510
ref: 25
BUSH,DRIVEN GEAR
€ 9.50
26
2433224510
ref: 26
BUSH,DRIVEN GEAR
€ 9.50
27
2434120F00
ref: 27
GEAR,4TH DRIVEN(NT:27)
€ 108.50
28
2435120F02
ref: 28
GEAR,5TH DRIVEN(NT:25)
€ 108.00
29
2436120F01
ref: 29
GEAR,6TH DRIVEN(NT:23)
€ 112.00
30
0916725013
ref: 30
WASHER,LOCK
€ 2.50
31
0916725021
ref: 31
WASHER,LOCK
€ 3.00
32
0916725021
ref: 32
WASHER,LOCK
€ 3.00
33
0916925001
ref: 33
WASHER
€ 2.00
34
0918117195
ref: 34
SHIM(17X28X1)
€ 3.00
35
0918120195
ref: 35
SHIM(20X30X1)
€ 3.00
36
0926225125
ref: 36
BEARING(25X62X17)
€ 49.00
37
0928336003
ref: 37
SEAL,OIL(36X50X6)
€ 12.00
38
0930020032
ref: 38
BUSH(20X24X13)
€ 10.00
39
0926217023
ref: 39
BEARING(17X40X12)
€ 14.00
40
2475119F00
ref: 40
24751-19F10
RETAINER,DRIVESHAFT O
€ 8.00
41
2488112C20
ref: 41
GUIDE,T/M OIL
€ 9.50
42
2488512C10
ref: 42
RETAINER,TRANSMISSION OIL
€ 2.00
43
015000612A
ref: 43
BOLT
€ 2.00
44
021120612B
ref: 44
SCREW
€ 1.50
45
2751020F00
ref: 45
SPROCKET,ENGINE(NT:15)
€ 32.00
46
0915920004
ref: 46
NUT
€ 12.00
47
0916725027
ref: 47
WASHER,LOCK
€ 1.50
48
2753119F01
ref: 48
SPACER,ENGINE SPROCKET
€ 27.50
49
2760032C10118
ref: 49
CHAIN,DRIVE
€ 166.00
50
2762032C10
ref: 50
JOINT SET,CHAIN
€ 10.00
51
0928024010
ref: 51
O RING(D:2.4,ID:23.7)
€ 5.50
