ELECTRICAL (MODEL K8/K9)
DL650A VSTROM 2009 (K9) USA (E03)

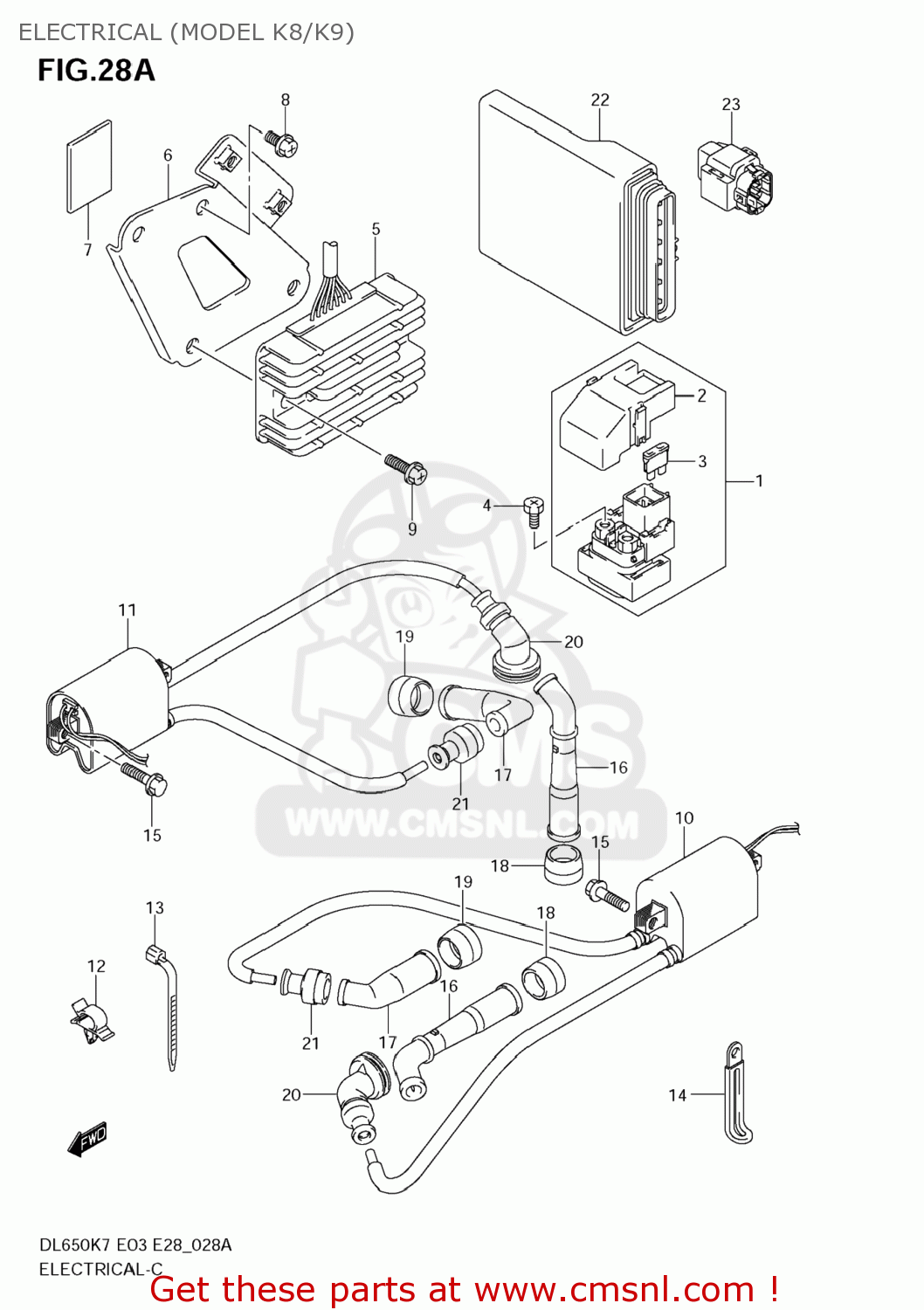

Electrical (model k8/k9) diagram DL650A VSTROM 2009 (K9) USA (E03)
ELECTRICAL (MODEL K8/K9) DL650A VSTROM 2009 (K9) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3180006G00
ref: 1
RELAY ASSY,STARTING MOTOR
€ 78.50
2
3186147E00
ref: 2
COVER
€ 10.50
3
0948130101
ref: 3
FUSE(30A)
€ 6.00
4
0912806013
ref: 4
SCREW(6X8)
€ 1.50
5
3280041G10
ref: 5
RECTIFIER ASSY
€ 268.50
6
3283127G20
ref: 6
BRACKET,RECT FTG
€ 11.00
7
3365137000
ref: 7
PROTECTOR(170X95X3.0)
€ 5.00
7
3365137000
ref: 7
PROTECTOR(170X95X3.0)
€ 5.00
8
021620610B
ref: 8
SCREW
€ 1.50
9
021620620B
ref: 9
SCREW
€ 2.00
10
3341027G00
ref: 10
COIL ASSY,IGNITION FR
€ 113.00
11
3342027G00
ref: 11
COIL ASSY,IGNITION RR
€ 94.00
12
0940310319
ref: 12
CLAMP
€ 2.50
13
0940718402
ref: 13
CLAMP(L:165)
€ 2.50
14
0940406429
ref: 14
CLAMP(L:45)
€ 2.50
15
015470625B
ref: 15
BOLT
€ 2.50
16
3351017G00
ref: 16
CAP ASSY,SPARK PLUG
€ 28.50
17
3351020E00
ref: 17
CAP ASSY,SPARK PLUG
€ 22.50
18
3354123E10
ref: 18
SEAL,SPARK PLUG
€ 5.00
19
3354147D00
ref: 19
SEAL,SPARK PLUG
€ 7.00
20
3354217G01
ref: 20
SEAL,HIGH TENSION CORD CTR
€ 5.50
21
3354238B00
ref: 21
SEAL,HIGH TENSION CORD
€ 4.50
22
3292027GC0
ref: 22
32920-27GC1
CONTROL UNIT, FI
€ 675.00
23
3396027G00
ref: 23
SENSOR ASSY,FUEL CUT
€ 72.00
