CAM CHAIN

DR200SE 2013 (L3) USA (E03)

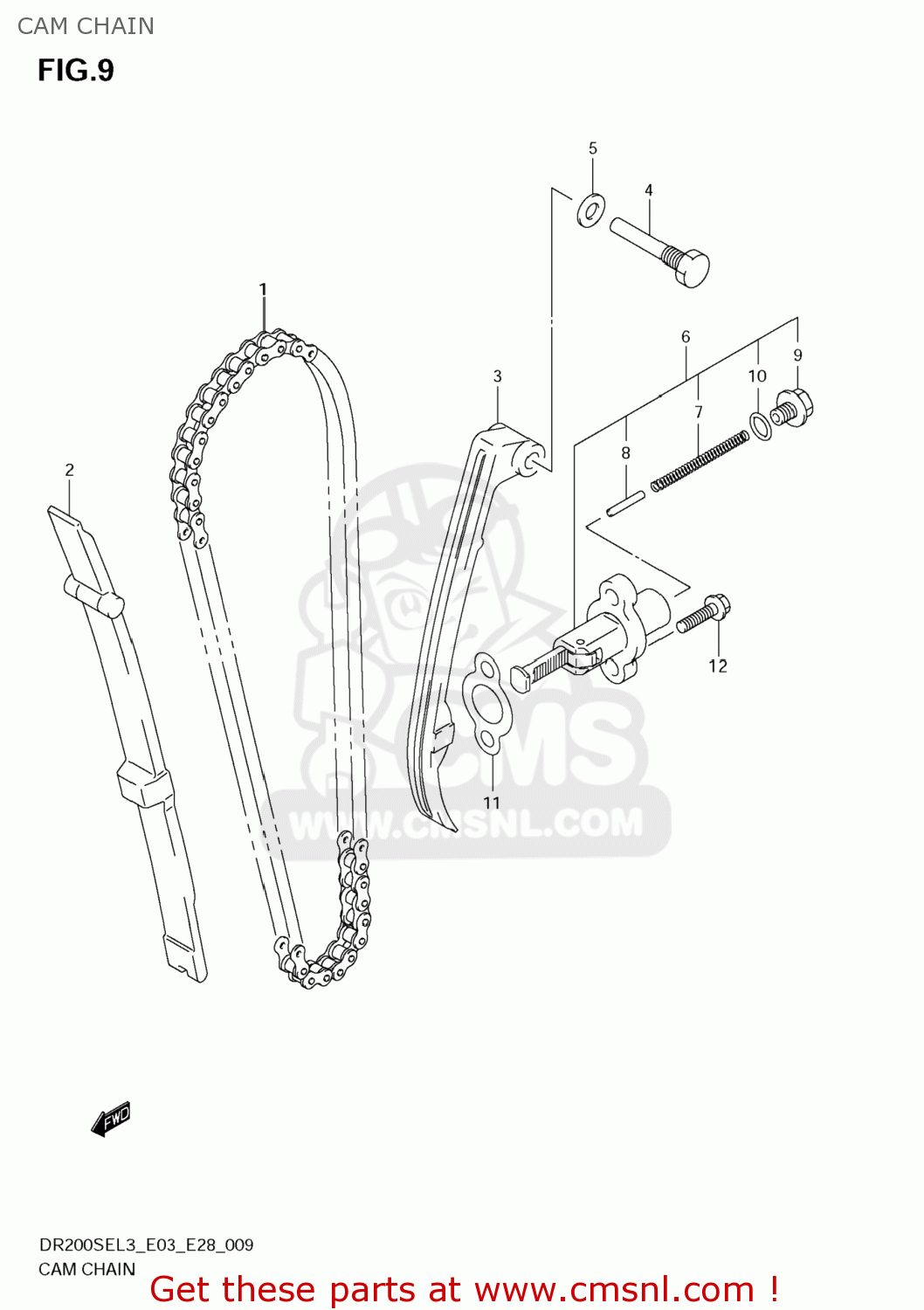

Cam chain diagram DR200SE 2013 (L3) USA (E03)

CAM CHAIN DR200SE 2013 (L3) USA (E03)

CAM CHAIN DR200SE 2013 (L3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1276042A00
ref: 1

CHAIN,CAMSHAFT DRIVE 102L

€ 46.00

2

1277118A00
ref: 2

GUIDE,CAM CHAIN

€ 19.50

3

1281118A01
ref: 3

TENSIONER,CAM CHAIN

€ 22.50

4

1281232400
ref: 4

BOLT,CAM CHAIN TENSIONER

€ 3.50

5

0916808016
ref: 5

GASKET(8.2X14X1) (NAS)

€ 1.00

6

1283019B02
ref: 6

ADJUSTER ASSY,TENSIONER

€ 54.50

7

1283319B00
ref: 7

SPRING

€ 2.00

8

1283519B00
ref: 8

BAR

€ 2.00

9

1283419B00
ref: 9

PLUG

€ 8.50

10

1283202A00
ref: 10

O RING

€ 2.00

11

1283719B10
ref: 11

GASKET,TENSIONER ADJUSTER (NAS)

€ 3.00

12

015470620A
ref: 12

BOLT

€ 2.50
