FUEL COCK (DR200SEL3 E33)
DR200SE 2013 (L3) USA (E03)

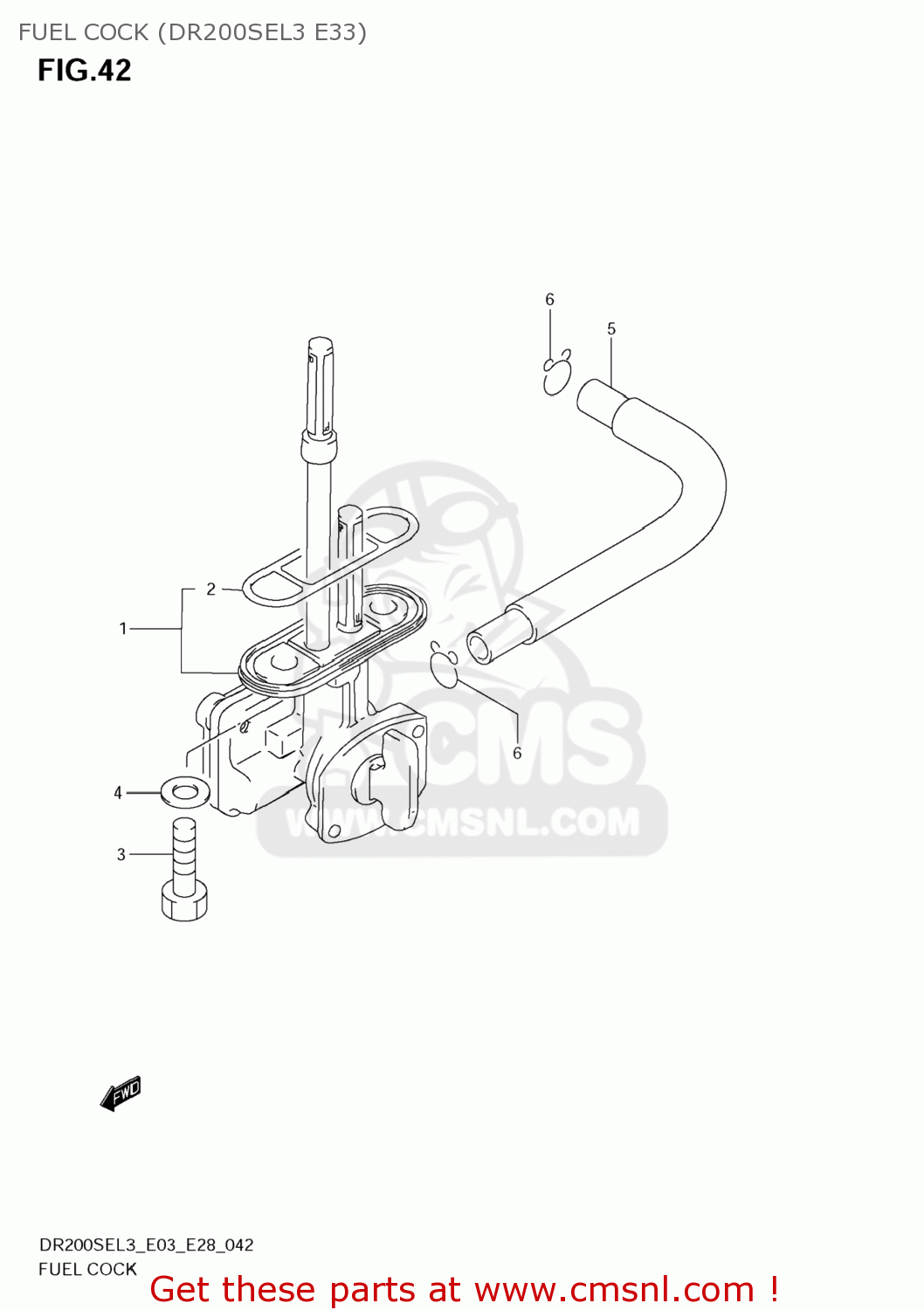

Fuel cock (dr200sel3 e33) diagram DR200SE 2013 (L3) USA (E03)
FUEL COCK (DR200SEL3 E33) DR200SE 2013 (L3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4430044AB0
ref: 1
COCK ASSY,FUEL
€ 99.50
2
4434887420
ref: 2
GASKET,JOINT (NAS)
€ 5.00
3
0912806006
ref: 3
09128-06057
BOLT(6X20)
€ 2.00
4
0916806026
ref: 4
GASKET(6.4X11.5X0.8) (NAS)
€ 3.50
5
4442144A00
ref: 5
HOSE,FUEL
€ 12.50
6
0940109403
ref: 6
CLIP
€ 2.50
