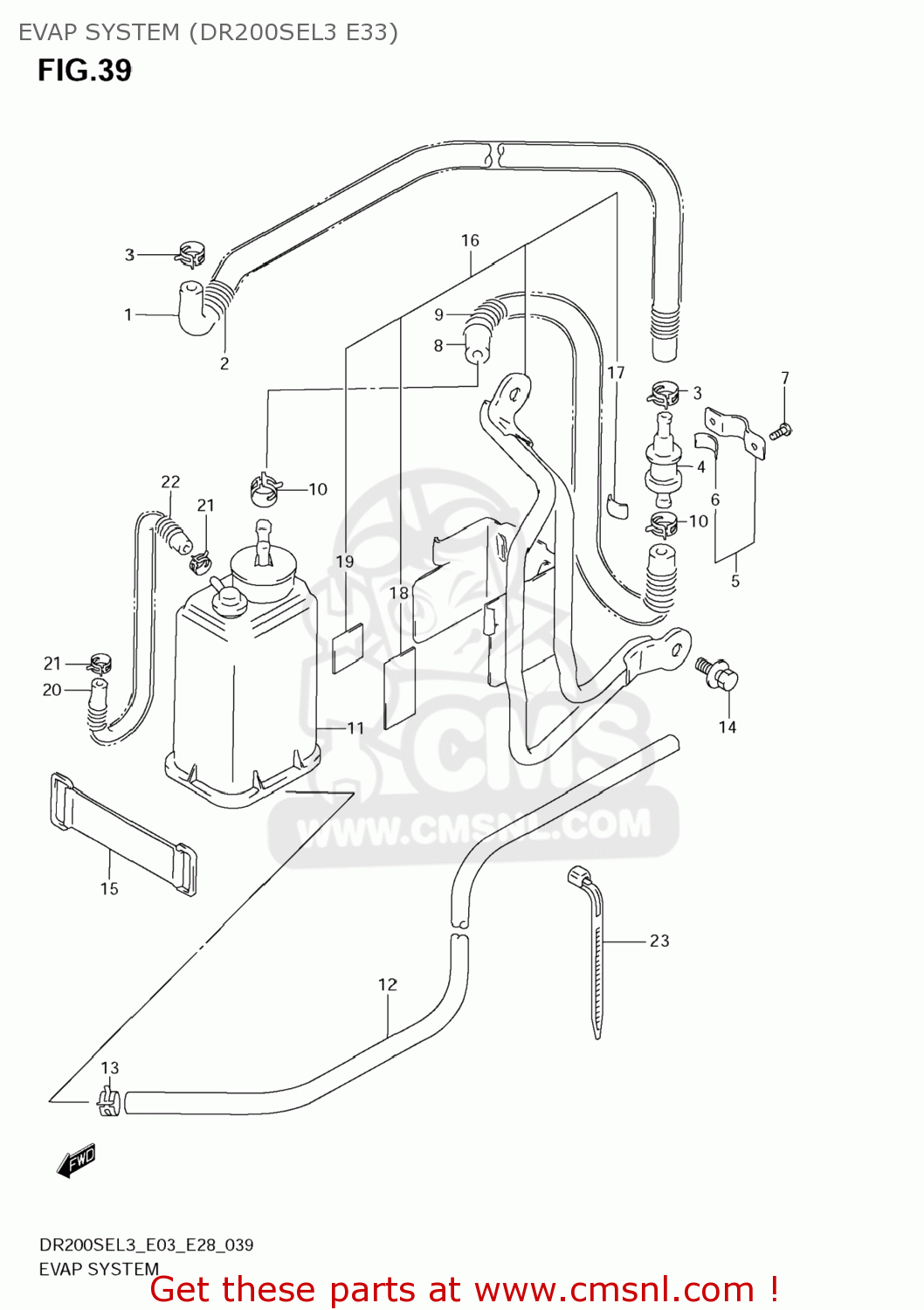

EVAP SYSTEM (DR200SEL3 E33)

ref

part #

description

quantity

1

4443442A00
ref: 1

HOSE,TANK & BREATHER VALVE

€ 26.00

2

0944013053
ref: 2

SPRING

€ 7.00

3

0940111413
ref: 3

CLIP

€ 2.50

4

4424038A00
ref: 4

VALVE,FUEL TANK BREATHER

€ 35.00

5

4489224A00
ref: 5

PLATE,FUEL TANK BREATHER NO.2

€ 3.00

6

4489424A00
ref: 6

CUSHION

€ 1.50

7

021120408B
ref: 7

SCREW

€ 2.00

8

4443542A00
ref: 8

HOSE,BREATHER VALVE & CANISTER

€ 17.00

9

0944013043
ref: 9

SPRING

€ 14.50

10

0940111413
ref: 10

CLIP

€ 2.50

11

1721044A00
ref: 11

CANISTER ASSY,CHARCOAL

€ 0.00

12

093527011300B
ref: 12

HOSE(7X11X2000)

€ 24.50

13

0940110409
ref: 13

CLIP

€ 2.50

14

0911606130
ref: 14

BOLT(6X16)

€ 2.00

15

0946200034
ref: 15

BAND

€ 4.50

16

4488044AB0
ref: 16

PLATE,CANISTER

€ 0.00

17

4489424A00
ref: 17

CUSHION

€ 1.50

18

4488538A00
ref: 18

CUSHION

€ 3.00

19

4488544AA0
ref: 19

CUSHION

€ 3.00

20

4443642A00
ref: 20

HOSE,CSTR PURGE

€ 14.50

21

0940106405
ref: 21

CLIP

€ 2.00

22

0944010031
ref: 22

SPRING

€ 0.00

23

0940714403
ref: 23

CLAMP(L:125)

€ 2.50

all assemblies
